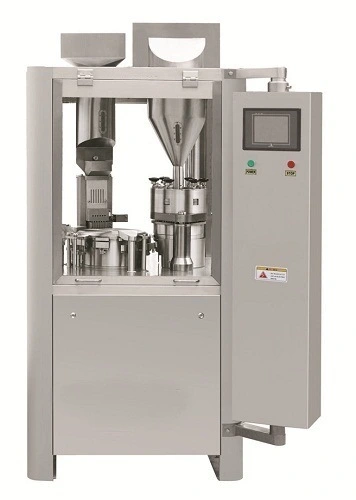

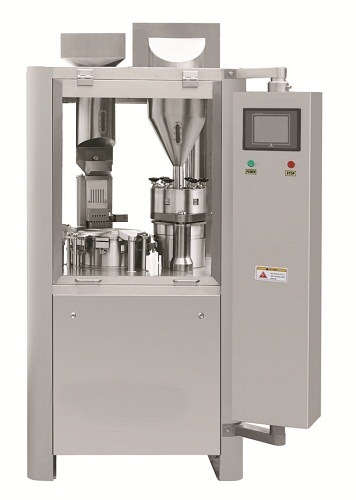

Automatic Capsule Filling Machine (NJP-800C2)
Product Description
Fully automatic capsule filling machine
1. NJP-800C2 is a precise intermittent moving fully automatic capsule filling machine.
2. It has 10 working stations and will do the following processes during working, such as feeding empty hard capsules, opening capsules, filling pharmaceutical powder or granule, rejecting unqualified ones, closing capsules, discharging finished products, cleaning mould.
3. All the working steps are finished in fully closed situations. This can proof from dust, pollution.
And operator can work at a safe environment.
4. It feeds empty hard capsules rapidly, accurately, and orderly so to increase the production rate.
5. It adapts patent technology so the machine does not need to stop for little dosage adjustment.
6. It stops automatically when there are out of capsules or powders. This makes the machine work safe, and long life usage time.
7. It is easy operated and easy maintained.
| Technical specifications | |
| Model | NJP-800C2 |
| Capacity | 48000capsules/h |
| No. of mould bores | 6 |
| Machine weight | 900kg |
| Machine Dimension | 840*960*1800mm |
| Total Powder | 5kw |
| Power supply | 220/380V, 3 PHASE, 50/60 HZ (For customer to designate) |
| Motor power | Motor1.5kw vacuum1.1kw dust 2.2kw |
| Vacuum | 20m 3 /h-0.04-0.08Mpa |
| Dust | 17.6Kpa 180m⊃3; /h |
| Noise | < 80DB (A) |
| Making rate | Empty capsule 99.9% Full capsule over 99.5% |
| Capsule size | 00#-5# |
| Filling error | ± 3%-± 4% |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What’s the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment, and D/P is acceptable as well.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
