We are specialized in pharmaceutical machinery and packaging machine for more than 20 years.

Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100) 1
Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100) 2
Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100) 3
Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100) 1
Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100) 2
Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100) 3

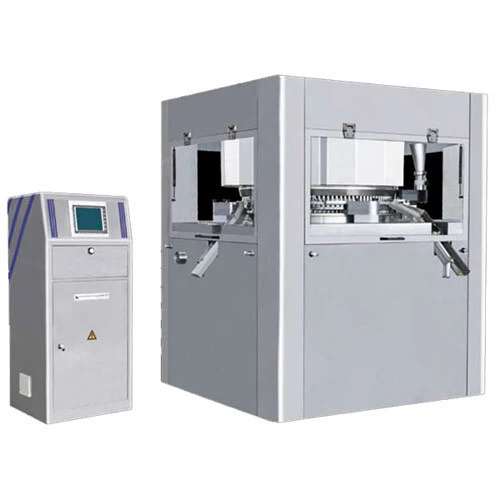

Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100)

    oops...!

    no product data.

    Go to homepage

    Applicant & Summary:

    Feeding powder in three hoppers. Tablets compressed at three sides. Tablets ejected through three sides chute. Rapid speed with large quantity punches.
    Cancel hydraulic system. Compression rollers adopt mechanical support. To avoid secondary pollution; Due to the upper and lower Compression rollers adopt independent modules, the rollers adjustment separately, punches can not be clasped. The position of lower compression rollers is controlled by motor and fast adjustment.
    Electric control system is entirely separate from main machine. The operation area is separate from production area. This design can extend the service life of electric control system. Also greatly enhance the sanitation and safety factors.

    The parts in contact with powder such as feeding system, turret, and tablets ejection parts use stainless steel or nontoxic polymer materials. Meets GMP standard.
    No hand-wheel control. The filling system use servo motor control which has fast reaction speed. The main pressure and pre-pressure use synchronous motor control. The location of main pressure and pre-pressure measured through the encoder. Accurate data and reduce manual errors.

    Can adjust filling volume to control tablet weight. If over-filling or less-filling or the punch force over-limit, the machine will give alarm. At the same time can monitor the force of a single punch as well as monitor the force curve of punch. Pressure histogram can be displayed on touch screen. The over-weight and less-weight tablets can be rejected.
    GZPLS-1100 series Automatic Triple rotary High Speed Tablet Press Machine is a kind of large-scale tablet press machine which developed by our experience according to User's requirement in the world. GZPLS-1100 series is best used for mass production of single product. Also used for two-layers tablets and three-layers tablets as well as sandwich tablets.
    The filling system use servo motor control which has fast reaction speed. Adjustment precision can reach 0.01mm. Filling volume displayed in the touch screen directly. No need to use their experience to repeated measurement
    Tri-wheeled double deck feeding system
    The upper impeller can increase the powder flow and balance powder density;
    The lower 2 impellers are used for feeding and dosing. To ensure the uniformity of feeding;
    Use Servo motor to adjust dosing cam track, Which can control the filling depth. To ensure an accurate dosing.
    Separate control cabinet to operate the machine; Separated production area from operating area; Ensures the safety for operator and sanitation for production;
    Adopts 10 inches touch screen to fulfill the automatic controlling, without hand-wheels;
    Adopts B&R PCC control system with quick and accurate response;
    All information about manufacturing can be displayed, stored, extracted and reset;
    Different degree of user's password can be set.
    Main pressure system, pre-pressure system, filling system, feeding system adopt modular design. Simple structure. These modular parts can be freely adjusted or removed. Noninterference between each. Maintenance easy. The main pressure and pre-pressure are the same structure which can be interchanged each other. Both main pressure and pre-pressure are all 100KN which make it easier for forming tablets.Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100)
    Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100)
    Automatic Triple Rotary High Speed Tablet Press (GZPLS-1100)

    Model GZPLS-122 GZPLS-113 GZPLS-95 GZPLS-76
    No. of stations 122 113 95 76
    Tooling type BBS BB B D
    R.P.M 5.1-51
    Max output(tablets/h) 1119000 1037000 872000 697000
    Main motor power 18.5kw
    Main pressure 100KN
    Pre-pressure 100KN
    Max tablet diameter 11mm 13 mm 16 mm 25 mm
    Max length of irregular tablet 13mm 16mm 19mm 25mm
    Max filling depth 16mm 16mm 20mm 20mm
    Max tablet thickness 8mm 8mm 10mm 10mm
    Pitch circle diameter 1060mm
    Diameter of punch 19mm 19mm 19mm 25.35mm
    Dimension 1720*1720*2182mm
    Weight 8000kg


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G


    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
