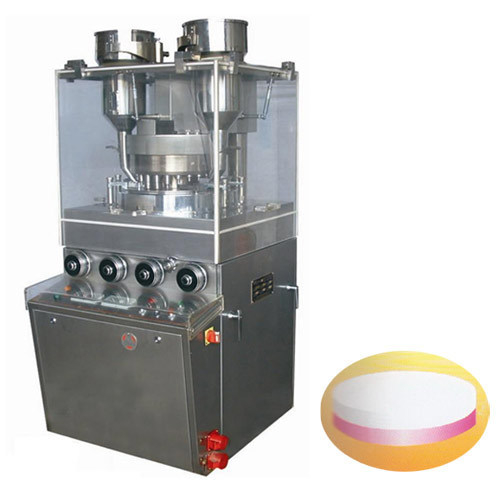

Double Layers Rotary Tablet Press (ZPW23)

    oops...!

    no product data.

    Go to homepage


    Application:

    This model is to press the various kinds of granular materials into tablets, with the most outstanding advantage of being able to produce irregular tablets with wide different geometrical shapes, such as double layer tablets, ring shaped tablets and double side engraved tablets.

    Summary:

    At total of 23 unit of punches and dies can be installed in the turret, with the punch consisting of two detachable sections. In one cycle of the rotation, 23 tablets will be produced.
    This model is in compliance with the GMP standard on the production and management of the pharmaceuticals. The compression comportment is entirely separated from the driving mechanisms, with no painting inside the compression compartment. All spare parts to be in contract with the pharmaceuticals are made of stainless steel or with the surface being treated specially for non-toxicity and corrosion proof. The compression component is enclosed with transparent organic glass to prevent pollution. The compression area can be accessed from the four sides, with all surfaces being smooth and easy to clean.
    ZPW23 Rotary Tablet Press is equipped with continuous and centralized lubrication system for the driving system, tracks and main frictional parts to be adequately lubricated, to reduce the noise and wearing for maintenance cost to be greatly reduced.
    The electric control part adopts the PLC(Programmable Logic Control), with the functions of setting up of the main compression and main compression override stop. This machine is provided with the function of auto diagnosis of defectives. Through the display, the defective position can be traced and located rapidly, to increase the efficiency of maintenance.Double Layers Rotary Tablet Press (ZPW23)
    Double Layers Rotary Tablet Press (ZPW23)
    Double Layers Rotary Tablet Press (ZPW23)

    Stations (unit) 23 Thickness of the die (mm) 28
    Maximum compression (KN) 80 The diameter of the circle of the
    central pitch of upper &lower
    punches on the turret (mm)
    320
    Max. Diameter of tablet (mm) 20 Rotary speed of the turret (rpm) 10-40
    Max. Filling depth (mm) 22 Max.apacity of the tablets(tablets/hour) 55,000
    Max. Thickness of tablet (mm) 11 Area to occupy (mm2 ) 930*950
    Diameter of the upper
    /lower shank (mm)
    32 Height of the machine (mm) 1850
    Length of the upper shank (mm) 175 motor power (kw) 4
    Length of the lower shank (mm) 183 Net weight of the machine (kg) 1500
    Diameter of the die (mm) 36


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G

    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
