Hby27b Rotary Tablet Press for Pill

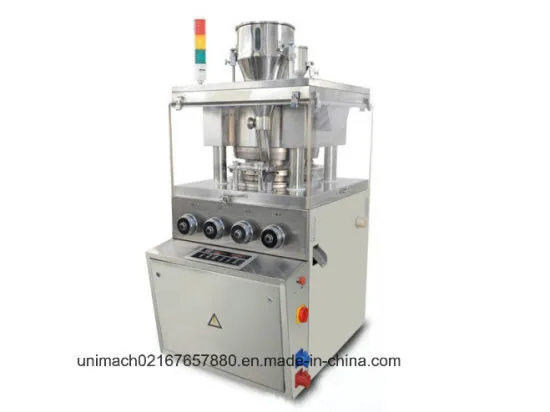

HBY27B Rotary Tablet Press
Main Application
The machine is a new generation product which is developed form the former ZP27 Tablet Press of my company, it is a double-press type, continuously automatic rotary tablet press for pressing tablets, it is widely applicable to industries such as pharmaceutical, chemical, foodstuff and electron for pressing the granular materials into all kinds of round tablets,irregular tablets and ring shaped tablets.
It is especially used for producing various big diameter tablet like effervescent tablet,disinfectant and etc.
Characteristics
1. The machine is compatible with the GMP requirement, the outside part of the machine is fully enclosed, the material of the cover and the inside table face of the table-pressing room is stainless steel, the turret face has been disposed specially, nontoxic and smooth and abrasion proof.
2. The machine has a greatly large power and pressure, and it has two pieces of prepressing tracks .It is stable in operation and is applicable to press hard-pressing powder.
3. An overload protection unit is including in the system to avoid the damage of the apparatus, when overload occurs,the machine stops automatically, and at the same time the alarm light turns on.
4. The speed adjustment of the driver is controlled by the frequency conversion device(inverter), it is easily to operated, safety and accurate.
5. The centralized lubrication system of the machine can ensure the oil supply to every lubricating part by the intellectual lubricating pump, and it is very reliable.
6. To exert human nature ideas, the machine is easily to be cleaned and maintained.
7. The transmission system is located inside the wormgear box under the main body, and it is a fully independent part. It cannot be cross-polluted, and the transmission system is fully lubricated so that the noise and the abrasion are greatly reduced.
8. With the appliance of utility model patent, the ways to fix the lower track and lower pressure rollers are especial, so that be remounted and maintained conveniently and fast.
Technical Specifications
| Dies (stations) | 27 |
| Max. pressure (kN) | 100 |
| Max.Diameter of tablet(mm) | Φ25 |
| Max.depth of fill(mm) | 17 |
| Max.thickness of tablet(mm) | 8 |
| Turret speed (r/min) | 5~28 |
| Max.production capacity(tablets/hour) | 90,000 |
| Motor(kW) | 5.5 |
| Net weight (kg) | 1800 |
| Covering area (mm) | 1100×940 |
| Height including the hopper (mm) | 1755 |
| Height without the hopper(mm) | 1500 |
4 sets of HBY27B under construction
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
