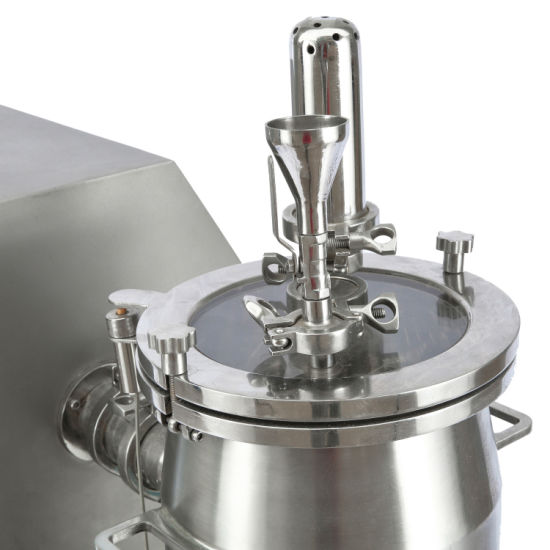

High Efficiency Rapid Mixer Granulator
General applications:
Rapid mixer granulator is a high efficiency equipment that can mix different powder materials and · Granulate granule in one procedure. It is wide used for pharmaceutical industry, foodstuff industry and chemical industry, etc.
Principle:
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to become a humid soft material. The it is cut through high-speed crusher and become uniform granules.
Features:
1. The machine adapts horizontal cylinder structure. Its structure is reasonable.
2. Use air filled seal shaft to drive. When washing, it can be changed to water
3. Use fluidization to Granulate and the granule is near ball. Its flow is good;
4. Compared the traditional process, 25% of adhesive can be reduced and the laying time can be shorted;
5. The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;
6. In the same sealed container, dry mixing, humidity mixing and granulating can be finished. It is in conformity with the requirements of GMP;
7. The whole operation has strict safe and protective measures.
| Item | Specification | ||||||||||
| Name | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 | |||
| Volume | L | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 | ||
| Capacity | kg/batch | 3 | 15 | 50 | 60 | 80 | 100 | 135 | 200 | ||
| Mixing speed | r.p.m | 300/600 | 200/400 | 180/270 | 180/270 | 180/ 270 | 140/220 | 106/ 155 | 80/120 | ||
| Mixing power | kw | 1.2/2.2 | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 | ||
| Cutting speed | rpm | 1500/3000 | |||||||||
| Cutting power | kw | 0.85/1.1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 | ||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
