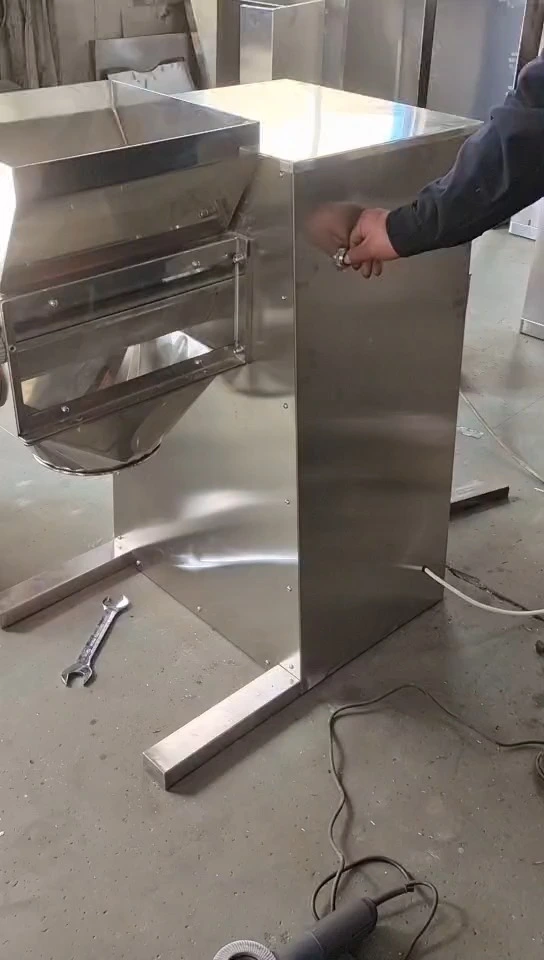

High Quality Oscillating Granulating Machine/Oscillating Granulator
working principle
By mechanical transmission, the drum swings back and forth to extrude the material from the screen, making it into particles or crushing them for granulation or rapid granulation.
Application scope
1. Used in industries such as pharmaceuticals, chemicals, and food, to make moist powder materials into particles,
2. Crush dry materials in block form and enable rapid granulation.
Performance characteristics
1. The material contact points are all made of stainless steel material, with a beautiful and elegant appearance.
2. The bottom adopts nylon rollers, which are easy to move and clean.
High Quality Oscillating Granulating Machine/Oscillating Granulator
This machine is used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size.
Its main features are: the sieve can be removed and remounted easily; its tension is also adjustable. The rotor also can be removed and cleaned conveniently. The driving mechanism is totally enclosed in the machine body and its lubrication system makes the machine work smoothly.
YK90: the speed of its rotor can be adjusted during operation, its surface is painted for universal usage.
YK90 is a new type is designed in accordance with GMP standard; its surface is made of high quality stainless steel and looks nice. Especially the metal and stainless steel screen mesh improves the pellets quality.
Main Technical Specification
| Model | Diameter of roller |
Capacity | Swing angle | Discharging port size | Motor | Dimension | Weight |
YK90 |
Ø90mm | 50~100kg/h | >360 | 300×280 | 1.1kw | 460×750×840 | 150kg |
