High Quality Vacuum Belt Dryer Drying Machine
High Quality Vacuum Belt Dryer Drying Machine

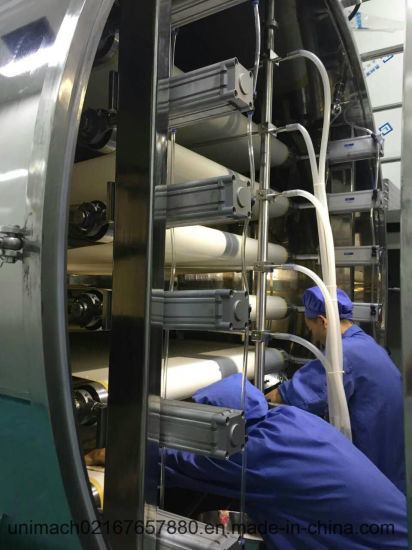

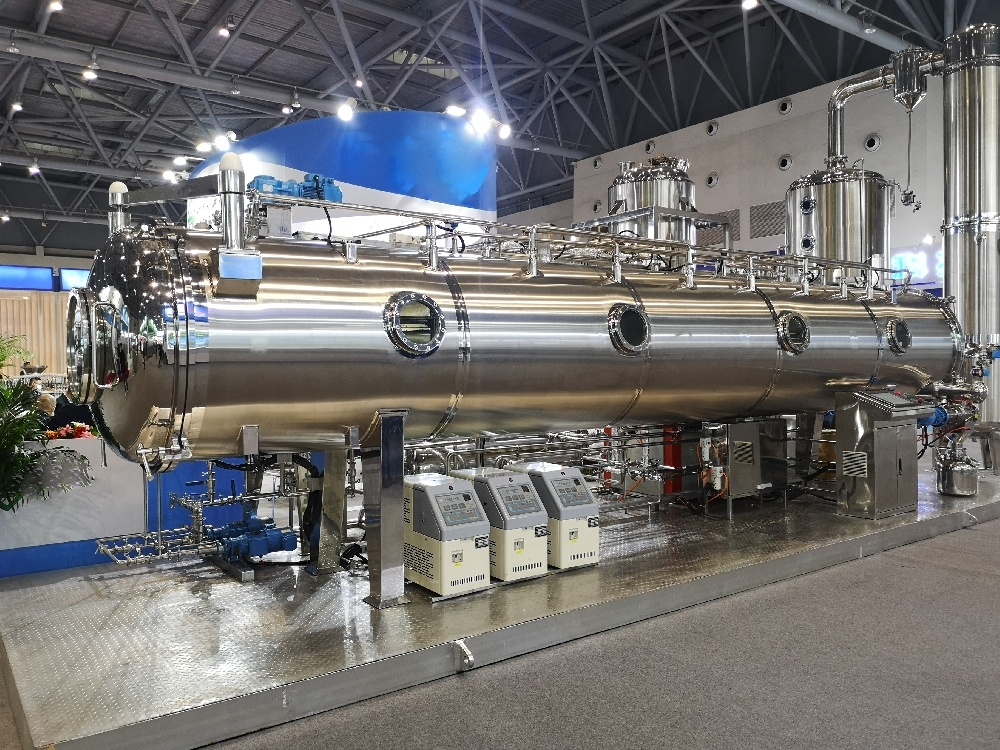

The vacuum belt continuous dryer for liquid is designed to solve the problems associated with extracting highly concentrated materials in viscous products.
Traditionally, a centrifugal spray dryer would damage the thermally sensitive components and lead to materials sticking to the walls of the dryer. Also, regular vacuum ovens are not ideal for these types of operations because the ovens take long periods of time for drying and require large amounts of energy.
This tray dryer is ideal because it features a low drying temperature with excellent sanitary features and it can fully meet GMP requirements.
| Spec Model | Outline dimension Diameter * L * H mm | Heating / cooling area | Evaporation capacity Kg / h | Power KW | Vacuum degree Pa | 1000-3300 (2-5layers) | Heating / cooling temp ºC | 40-135 (adjustable) |
| 1600-5000 (6-10layers) | 15-30 (adjustable) | |||||||
| Auxiliary equipment configuration *Alternative | ||||||||
| WBDG2/4-6 | Φ1000*6000*2600 2layer | 5/0.36 | 4-6 | 12 | One tank dosing+feeding+vacuum+heating+cooling+smashing+manually discharging+CIP+PLC | |||
| WBDG2/5-8 | Φ1000*7500*2600 2layer | 6.5/0.5 | 5-8 | 12 | One tank dosing+feeding+vacuum+heating+cooling+smashing+manually discharging+CIP+PLC | |||
| WBDG3/7-12 | Φ1200*7500*2700 3layer | 11/1.8 | 7-12 | 13 | One tank dosing+feeding+vacuum+heating+cooling+smashing+manually discharging+CIP+PLC | |||
| WBDG3/9-15 | Φ1600*7500*2800 3layer | 14/1.8 | 9-15 | 13 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+CIP+PLC | |||
| WBDG3/18-25 | Φ1600*9000*2800 3layer | 25/1.8 | 18-25 | 15 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+CIP+PLC | |||
| WBDG4/28-30 | Φ1800*9000*2900 4layer | 29/2 | 28-32 | 18 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+power collection +CIP+PLC | |||
| WBDG4/35-50 | Φ1800*12000*2900 4layer | 46/2.4 | 35-50 | 20 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+power collection +CIP+PLC | |||
| WBDG5/50-60 | Φ1900*12000*3200 5layer | 57/3 | 50-60 | 24 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+fine crushing +power collection +CIP+PLC | |||
| WBDG6/70-80 | Φ2300*12000*3400 6ayer | 75/3.6 | 70-80 | 28 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+fine crushing +power collection +CIP+PLC | |||
| WBDG6/90-100 | Φ2300*15000*3600 6layer | 94/3.6 | 90-100 | 34 | Two tank dosing+feeding+vacuum+heating+cooling+smashing+auto discharging+fine crushing +power collection +CIP+remote control | |||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
