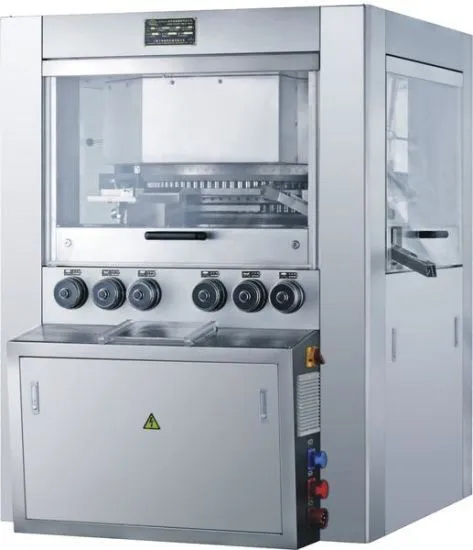

High Speed Rotary Tablet Press Machine
Application:
This machine is one kind of double side press type rotary tablet press machine which can make granular materials into round shape tablets, irregular tablets or double-side engraved tablet. This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries. It meets GMP requirements.
Features:
Double press rollers, double side output tablets, many punches, it is suitable for mass production.
Made of stainless steel. The housing is fully closed. The surface of the rotary turret is covered with hardened layer which can protect the surface and prevent from abrasion. The machine conforms GMP requirements.
Perfect press system. The sizes of the main press roller and the pre-press roller are the same. After twice press the tablets are formed. This system extends the pressing time, in order to make the best quality of tablets.
Double impellers type force feeder. It can improve the fluidity and filling of the granular, so ensures the feeding precision.
Tooling track adopts double-side lifting structure which gives the punches more balanced and not easy abrasion while they run.
Reasonable structure, reliable performance, simple operation and easy to clean, maintenance.
Reliable electric control system and advanced control principle ensure the accuracy of the programs and the protection. The control system can accurately monitor the entire production process.
Automatic oil & grease central lubrication system. Ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
Note:
GZP(K)-81 model adopts advanced operation system and the control system of tablets weight. It can adjust each operation parameter (main pressure, pre-pressure and filling depth) easily without handwheel. Effective detecting and adjusting for tablet hardness and weight is achieved.
GZP(K)-81 model can record all the process parameter for each production batch, it is convenient for operator to control the machine.
| Model | GZP(K)-81 | |
| Number of Station | 81 | |
| Tooling Standard | BBS | |
| Max Main Pressure (KN) | 100 | |
| Max Pre-pressure (KN) | 100 | |
| Max Tablet Diameter (mm) | Round Tablet | 11 |
| Irregular Tablet | 13 | |
| Max Filling Depth(mm) | 15 | |
| Max Tablet Thickness (mm) | 6 | |
| Max Turret Speed (r/min) | 70 | |
| Max Production Capacity(pcs/h) | 680000 | |
| Motor Power (KW) | 15 | |
| Overall size (mm) | 1700*1600*1900 | |
| Machine Weight (kg) | 4800 | |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
