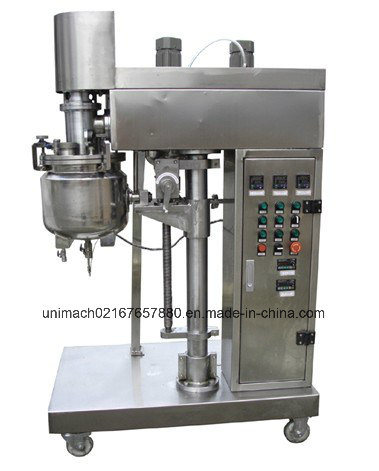

Product Name: ZJR-5/10 Vacuum Emulsifying Mixer
Keyword: Emulsifying Mixer, vacuum emulsifying mixer
Introduction: The pot cover is automatic rising type, the material was directed fed into the emulsifying boiler from oil boiler and water boiler.
Technical Feature: The cover of main boiler tank can be lifted and lowed automatically. It is equipped with upper homogenizer and the tilting discharging method can be fully assured the material completely out.
Applications:
It is suitable for making cream or ointments in laboratory of pharmaceutical, fine chemical or
Cosmetic factory for R&D.
Name | ZJR-5 | ZJR-10 | |
Emulsifying Pot | Design Volume (L) | 6 | 10 |
Capacity (L) | 5 | 8 | |
Scraper Stirring Power (KW) | 0.55 | 0.55 | |
Scraper Stirring Speed (rpm) | 0-86 | 0-86 | |
Homogenizer Power (KW) | 1.1 | 1.1 | |
Electrical Heating Power (KW) | 2 | 2 | |
Homogenizer Speed (rpm) | 3500 | 3500 | |
Water Pot | Design Volume (L) | 3.35 | 7.8 |
Capacity (L) | 2.7 | 6 | |
Power (KW) | 0.025 | 0.025 | |
Speed (rpm) | 1200 | 1200 | |
Electrical Heating Power (KW) | 1 | 1 | |
Oil Pot | Design Volume (L) | 3.35 | 7.8 |
Capacity (L) | 2.7 | 6 | |
Power (KW) | 0.025 | 0.025 | |
Speed (rpm) | 1200 | 1200 | |
Electrical Heating Power (KW) | 1 | 1 | |
Dimension | Length*Width*Height | 800mm*550mm*1430mm |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
