General applications

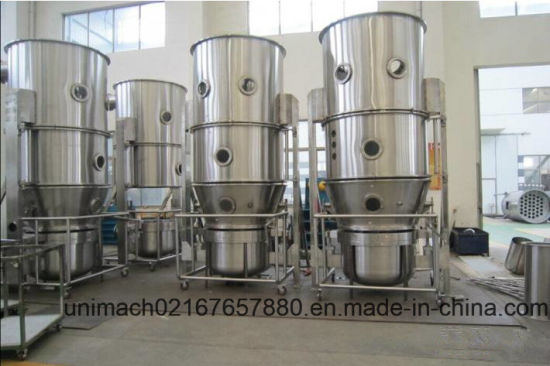

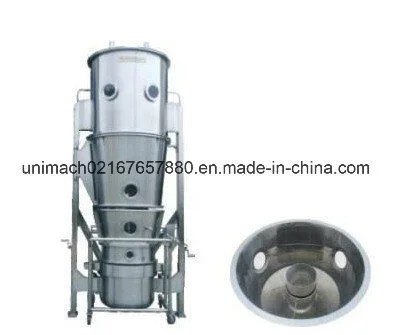

Fluid-bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is widely used for ilm slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.
It is widely used for many products such as Omeprazole enteric release coating, Complex vitamin and amino acid coating, Aspirin coating, Compound fertilizer slow releasing coating, fertilizer coating.
Features of equipment
1. Coating of bottom spraying, material low in order. We can get uniform and continuous film.
2. Taste masking odor, moisture-proof, antioxidation, prevent water, heat insulation, coloration and separation coating.
3. Low productive cost, and the coating material is used perfectly.
4. Short travel distance of fog granule and without the problem of "spray drying
5. The design of cylinder for accelerator or cone for decelerate can Coating of granule, big granule and pellets.
6. The high separate, without adhere.
Model | 5 | 15 | 30 | 60 | 120 | 200 | 300-1000 | ||||||
Capacity | Kg/batch | 4~6 | 10~20 | 25~40 | 40~80 | 80~ 150 | 150~250 | By URS | |||||
Volume of container | L | 15 | 50 | 100 | 220 | 360 | 650 | ||||||
Power of fan | Kw | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 | ||||||
Consumption of compressive air | pressure | MPa | 0.6 | ||||||||||
consumption | m³ /min | 0.4 | 0.6 | 0.9 | 1.3 | 1.8 | 2.4 | ||||||
Consumption of steam | pressure | MPa | 0.4-0.6 | ||||||||||
consumption | Kg/h | 9kw | 64 | 85 | 181 | 250 | 330 | ||||||
Size of installation for reference | H¹ (mm) | 2600 | 2850 | 3150 | 3250 | 3500 | 3800 | ||||||
H² (mm) | 340 | 490 | 590 | 790 | 890 | ||||||||
H³ (mm) | 2630 | 2930 | 3020 | 3280 | 3580 | ||||||||
B¹ (mm) | 1010 | 1160 | 1460 | 1660 | 2060 | 2260 | |||||||
B² (mm) | 1560 | 1860 | 2460 | 2860 | 3660 | 4060 | |||||||
φ 1 (mm) | 550 | 700 | 1000 | 1200 | 1600 | 1800 | |||||||
φ 2 (mm) | 180 | 250 | 250 | 280 | 280 | 315 | |||||||
L(mm) | 850 | 1550 | 1700 | 1800 | 2000 | 2100 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
