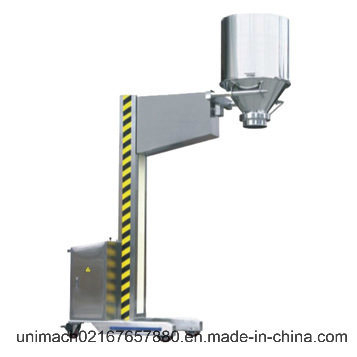

SLY Series Pharma Lifting Feeder (Movable Type)
Applications:
SLY Series Lifting feeder(Movable Type) is mainly used in conveying and material feeding of dust powder and solid particle materials in pharmaceutical factories.
It is often used compatibly with powder mixers, rapid mixer granulator, tablet press, coating machine, capsule filling machine and packaging machine, which can effectively reduce dust powder and cross contamination and greatly reduce labor intensity. So it serves as ideal material conveying equipment for pharmaceutical factories and is also widely used in food chemical and other light industries.
Features:
A. Housing of the machine body is made from austenitic stainless steel without any dead
Angle concave or convex slippery and easy to clean.
B. Polyurethane caster wheel is equipped for easy moving without handling the epoxy floor
Coating and leaving no trace.
C. Applying specially-made butterfly valve with no dead angle no rdmnant.
D. Charging bucket is equipped with seal device and reliably locked. There's no dust raising
And leakage occurred during operation effectively preventing cross contamination.
E. The height is designed to be appropriate easy to go in and out.
movable pharma bin lifter exported to Renata pharma in Bangladesh
| Model | Main structural dimensions | Machine weight | net loading capacity | Total power | |||||||
| L | W | H | H1 | H2 | L1 | DN | D | kg | Kg | kw | |
| SLY-50 | 1780 | 600 | 1800 | 1950 | 2600 | 480 | 150 | 500 | 400 | 50 | 0.75 |
| SLY-100 | 1880 | 600 | 1800 | 1950 | 2750 | 450 | 150 | 600 | 450 | 100 | 1.1 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
