Spray Drying Equipment for Chemical, Food and Pharmaceutical1
Spray Drying Equipment for Chemical, Food and Pharmaceutical
PRINCIPLE OF WORKING

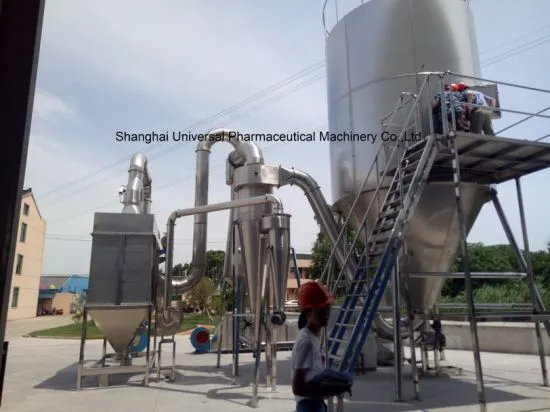

Air is turned into hot air through heater and enters into hot air distributor at the top of dry chamber and then enters into dry chamber and rotates in the state of helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber through stepless variable screw pump. In which liquid of raw material atomizes small drops. Air and liquid of raw material flow and contact each other. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. The finished product is discharged through the bottom cyclone separator of drier and the wasted air is exhausted through fan.
FEATURES
The drying speed is very quick. When raw material is atomized, the surface area increases greatly. 65~98% of moisture can be vaporized in hot air stream momentary. The dry time to be used is only 5~15 seconds. Especially, it is suitable for drying thermal sensitive raw materials.
The size of finished product is uniform and the flow and solubility are good. The purity and quality of product are good too.
The operation is stable and simple. The regulation and control is very convenient. It is easy to realize automatic operation.
The operation process is simplified and the operation environment is superior and can avoid powder dust during the period of operation.
SCOPE OF APPLICATION
Chemical industry: Sodium (potassium) fluoride, alkali dyestuff and pigment, dyestuff intermediate, compound fertilizer, catalyst, amino acid, white black and so on
Plastic resin: ABS emulsion liquid, urea formaldehyde resin, phenol formaldehyde resin, formaldehyde resin, PE, PVC and so on
Foodstuff industry:
Egg and milk products: Rich lipoprotein powdered milk, cocoa powdered milk, baby meal, egg white, vitalize and so on, food and juice of plant, oat, chicken juice, coffee, crystalline tea, condiment and flavor, protein bean, earthnut protein, protein, hydrolysis and so on
Sugar: Maize paste, maize starch, glucose, pectin, maltose, potassium seriate and so on
Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, pencil stone and so on
| specification | LPG | ||||||
| 5 | 25 | 50 | 100 | 150 | 200-3000 | ||
| Tep of inlet air | ≤ 350°C | ||||||
| Tep of outlet air | 80 -90°C | ||||||
| (kg/h) Evaporated capacity | 5 | 25 | 50 | 100 | 150 | 200-3000 | |
| Transmitted | Compressed air | By machine | |||||
| (rpm)Rotating speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | |
| (mm) Dia. of atomizing disk | 50 | 120 | 120 | 120 | 150 | 180-340 | |
| Heat source | Electricity | Electricity | Electricity+ steam, oil fuel, gas | Electricity+ steam | Electricity+ steam, oil fuel, gas | Solved by customer | |
| (kw) Powder of electric heater | 9 | 45 | 60 | 81 | 99 | | |
| (%) Yield of dry powder | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | |
| Installation Size for reference | A(mm) | 1000 | 1290 | 1730 | 2500 | 2800 | Decided in accordance with actual condition |
| B(mm) | 2100 | 3410 | 4245 | 5300 | 6000 | ||
| C(mm) | 2300 | 4260 | 4645 | 6000 | 6700 | ||
| φ D(mm) | 1060 | 1800 | 2133 | 2560 | 2860 | ||
| E1(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | ||
| E2(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | ||
| F(mm) | 750 | 1000 | 1250 | 1750 | 1970 | ||
| G(mm) | 530 | 1700 | 1750 | 1930 | 2080 | ||
| H(mm) | 530 | 1300 | 1800 | 2600 | 3050 | ||
| I(mm) | 530 | 1550 | 1600 | 1780 | 1960 | ||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
