Suger Coating Machine
Machine features:
1. The coating machine has convenient feeding and high efficiency.
2. Easy to clean, the coating pot can be disassembled on its own.
3. The coating machine adopts an imported spray gun, which is easy to operate and master, flexibly controls process requirements, has good atomization effect, and sprays the medicine evenly.
4. The unique half hole design and pot body design of the machine help reduce wear on the chip and coating film, improve the yield, and thus balance drying efficiency and protection of the coating film.
5. The machine can be equipped with 1-2 different specifications of pots as needed to solve the confusion of a large variety, small quantity, and high raw material prices in the laboratory. The interchangeable pot body can better adapt to diverse customer needs
Application:
It is used to coat tablets and pills with sugar in pharmaceutical and food
Industry such as candy,chewing gum,chocolate and etc.

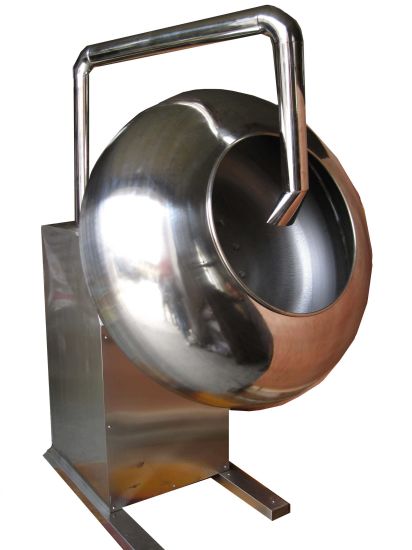

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.
Main Technical Specifications
| Type | Capacity (Kg/batch ) | Angle of inclination | Motor power (Kw) | Fan power (w) | Overall dimension (mm) | Heating power (Kw) | Weight (Kg) | Rotary speed (rpm) |
| BY400 | 2~5 | 15-45° | 0.55 | 40 | 800×800×1200 | 1KW | 200KG | 0-46 |
| BY600 | 8~15 | 15-45° | 0.75 | 100w | 1190×975×1365 | 2kw | 340kg | 0-40r/min |
| BY800 | 30~50 | 15-45° | 1.1 | 200 | 1000×1000×1550 | 3KW | 400KG | 0-32 |
| BY1000 | 50~70 | 15-45° | 1.5 | 200 | 1200×1200×1600 | 4KW | 450KG | 0-32 |
| BY1250 | 80~150 | 15-45° | 2.2 | 370 | 1350×1350×1600 | 6kw | 800KG | 0-28 |
Product Introduction
The coating machine is currently the best-selling coating equipment in the market, suitable for the pharmaceutical, pharmaceutical, food, and health product industries to sugar coat, film, and other coating, polishing, and rolling round pills on the surface of Chinese and Western medicine tablet cores. This machine is a new type of equipment that integrates strong electricity, weak electricity, hydraulic pressure, and pneumatic power, transforming the original ordinary sugar coating machine. It is mainly composed of host (raw sugar coating machine), controllable normal temperature hot air system, automatic liquid supply and air supply spray system, etc. The pot body is made of stainless steel material and meets GMP production requirements. This machine has a wide range of applications, with pills ranging from 4-8mm and tablets ranging from 4-18mm (tablets can be round, triangular, diamond shaped, oval shaped, etc.), and particles can be well coated. Users can set the speed of the blower for air supply, pot heating, and coating pot according to the needs of the materials, which can almost meet all the needs of enterprises, pharmaceutical factories, and units. The pot head and shell are made of 304 stainless steel, and the coating pot adopts variable frequency speed regulation. Equipped with a speed controller, spray gun, liquid cup, coating pot, and blower.
