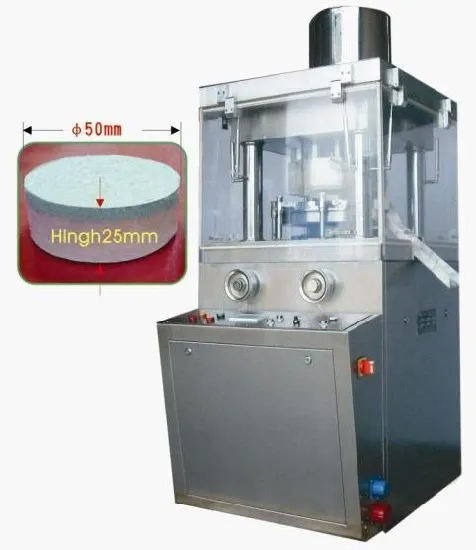

Tablet Press for Pressure Big Tablet (ZP11/18) 1
Tablet Press for Pressure Big Tablet (ZP11/18) 2
Tablet Press for Pressure Big Tablet (ZP11/18) 3
Tablet Press for Pressure Big Tablet (ZP11/18) 4
Tablet Press for Pressure Big Tablet (ZP11/18) 1
Tablet Press for Pressure Big Tablet (ZP11/18) 2
Tablet Press for Pressure Big Tablet (ZP11/18) 3
Tablet Press for Pressure Big Tablet (ZP11/18) 4

Tablet Press for Pressure Big Tablet (ZP11/18)

    oops...!

    no product data.

    Go to homepage

    Product Description
    Application

    ZP-11/18 Rotary Tablet Press is widely used in electronic industry, food industry, chemical industry, articles of everyday use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. Such as electronic element, camphor ball, catalyst and powder metallurgy.

    Features:

    1 This machine is the single-pressing type equipped with 11 sets of punch dies which are mounted on the workbench and reciprocate upward and downward along the curved guide rail to realize the actions needed for tablet pressing.

    2 The operational flow of this machine is: Material feeding, filling, tablet pressing, and tablet exporting, continuously.

    3 This machine is powered by motors. Through frequency-converting speed adjustment and triangular belt wheel, the work-gear case can be driven, causing the main axle and turret to move clockwise.

    4 Rolling friction is adopted in the pressing wheel whose working pressure can be adjusted based on different needs...Buffer device is also available to prevent the machine from being damaged due to mechanical impact and to elongate the machinery service life.

    5 Periphery of the machinery working chamber is closed to meet the GMP requirements. Powder-absorbing orifice is installed on the bench surface to purify the working chamber.

    6 Thickness of the pressed tablets, working pressure, filling amount, and rotational speed of the workbench are all adjustable. Detailed operations are directed on the operational panel to realize convenient adjustment and easy operation.

    7 Material-feeding device is composed of hopper and moon-shaped grate material feeder. The hopper is mounted at top of the machine and can be dismounted. Large-amount single-variety production does not necessitate changing configurations of the machinery parts. The materials can be directly inputted into the feeder by pipes from the machinery top, making the operation very convenient.Tablet Press for Pressure Big Tablet (ZP11/18)
    Tablet Press for Pressure Big Tablet (ZP11/18)
    Tablet Press for Pressure Big Tablet (ZP11/18)

    Model
    ZP11 ZP18
    stations
    11 18
    Max. Pressure
    100KN 100KN
    Max.Diameter of Tablet (Chunk)32x32mm/
    (Round)45mm/(Annular)45x20mm
    (Round)30mm,(chunk) 21x21mm,(annular)30x10mm
    Max.Depth of Filling
    45mm 45mm
    Turret Speed
    6-12r/min 10-20r/min
    Production capacity
    7,920tablets/hour 21,600tablets/hour
    Motor
    5KW 5KW
    Overall Size (L*W*H)
    910*1120*1650mm 910*1120*1650mm
    Net Weight
    1200kg
    1200kg


    Packaging & Shipping

     1.Nomally shipping steps:

     S45PNZ%`OL`M6O8H}V(SDJ

    2.Our packing and shipping:

    (4[KDGL_NF%E6%2]D`4JYP

    Our Services

     0OC}YRDYXP])TO]QMXZ48IJ

         Pre-Sales Service:



             * Inquiry and consulting support.



             *Quickly reaction.



              *Factory inspection available anytime.





          After-Sales Service:



             *Prompt technical support



            *Engineers available to service machinery overseas



            *Installation &commissioning,good training for customers.





    Our customer

     KE1PX$_SO]LLORZU3`DH8UW



    Certifications

    [$X~Z{0)[{$PW5F}H666N6M



    Company Information

    RX2]L7{%NOW0`YXF9~)M{_G

    FAQ

     Q1.What's your delivery method?

     A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.



    Q2.What products can you provide?

    A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.



    Q3. What's the payment terms?

    A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.



    Q4.How do you ensure your product quality?

    A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.



    Q5:Does the machine power voltage meet buyers' factory power source?

    A5: We can do it as your request.



    Q6: Is it difficult to install the machine ?

    A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

    For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

    You will get videos and instructions about installation of machine from us.
