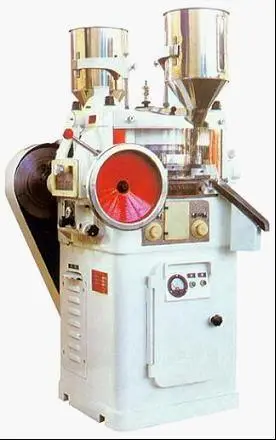

Traditional Single Punch Rotary Tablet Press (ZP33)
APPLICATION:
This machine is designed for pressing round tablets from various kinds of granular materials; It is primary machine to fit batch production of tablets. The mechanism of the machine belongs to double-press type. It consists of two sets of feed assemblage and press-roller unit. The turret carries 33sets of punches and dies, so 66 tablets will be pressed for each revolution of the turret. During operation, the speed of the turret rotation, the depth of the filling materials and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder during the operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.
| Model | ZP33 |
| stations | 33 |
| Max. Pressure(KN) | 40 |
| Max. Dia of Tablet(mm) | 12 |
| Max. Depth of Fill(mm) | 15 |
| Max. Thickness of Tablet(mm) | 6 |
| Turret Speed(r/min) | 11-28 |
| Production Capacity(tablet/h) | 43000~110000 |
| Motor | 2.2Kw/380V/50Hz |
| Machine Size(mm) | 950x960x1600 |
| Net weight | 850kg |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
