Product Description
Applications
Vacuum freeze drying technology is currently worldwide most advanced technology for food dehydration processing. Compared with the commonly used drying method, the freeze-dried food produced with this technology features long period of quality assurance, good re-hydration nature, good-looking color, good flavor, taste and high content of nutritious components. The dried food basically remains unchanged in its volume and shape, looks like sponge and has no shrinking. This drying technology can be widely used in process of vegetables, fruits, condiments, aquatic products, biological products, medicine, beverage and etc.
Working principle
The vacuum freeze drying is a drying method for dehydration and preservation of substances. It sublimes the moisture in the pre-processed substance from solid state into gaseous state by -30 centigrade quick-freezing under the vacuum condition.

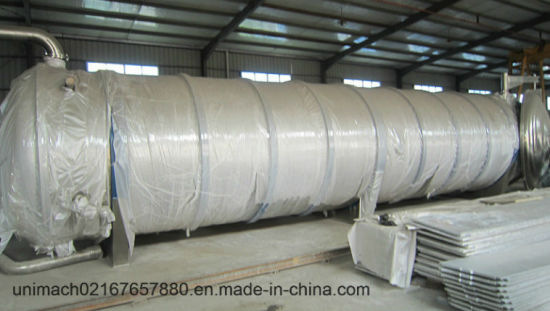

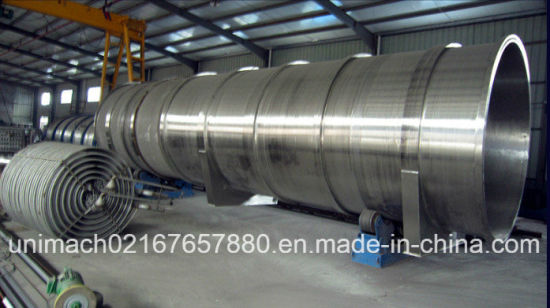

JDG series vacuum freeze drying equipment mainly includes food pre-freezing system, drying bin system, heating system, vacuum system, refrigerating system, material conveying system, medium system, pneumatic system, cleaning and sterilizing system.
Performance data for JDG-100 vacuum freeze dryer
Drying/shelf area | 100m2 |
Average water dehydrated capacity | 100Kg/h± 10% |
Heating shelf working temperature | Normal temperature ~+120º C |
emperature up time | 30º C~120º C/30min |
Temperature down time | 120º C~60º C/30min(without loading) |
Vacuum pressure adjusting range | 30PA~133PA |
Evacuation time | 760Torr~1Torr / 15min(without loading) |
Working temperature of ice condenser | -30º C~-40º C |
Frozen capacity of quick freeze room | 1200Kg/4h |
Room temperature | -18º C~-35º C |
Steam consumption | 300Kg/h (0.7Mpa, Max. |
Capacity of water for deicing | 15m3/h |
Equipped power | 237Kw |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
