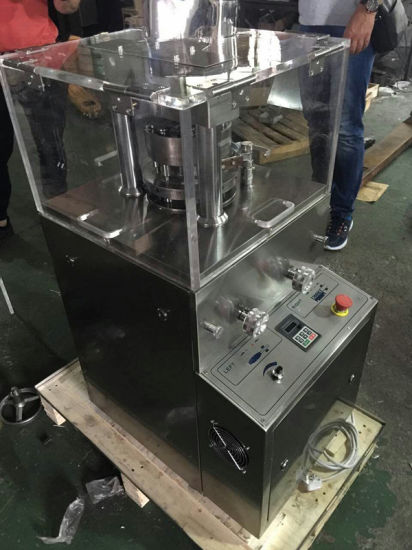

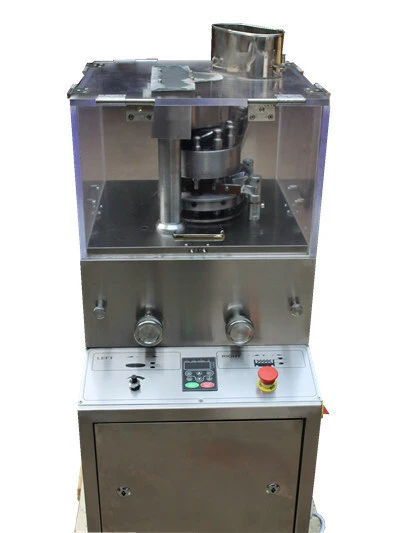

ZP9 Enhenced type rotary tablet press
Application:
This rotary tablet press is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets.It is mainly used in pharmaceutical, chemical, food, electronic, plastic and metallurgical industries.
Technical parameters:
Model | ZP-9 |
Working positions (set) | 9 |
Max pressure (kN) | 60 |
Max tablet dia. (mm) | 20 |
Max filling volume (mm) | 15 |
Max tablet thickness (mm) | 6 |
Speed of turret(r/min) | 30 |
Capacity(tab/h) | 16200 |
Power (kW) | 2.2 |
Dimension (mm) | 480*630*1100 |
Weight (kg) | 260 |
Equipments list:
No. | Name | Model | Brand |
1 | Frequency converter | Vector series | Shenzhen |
2 | Electromotor | 2.2 KW | Shanghai |
3 | Breaker | DZ47-60 | CHINT Zhejiang |
4 | Fuse | RT28N-32X | CHINT Zhejiang |
5 | Travel switch | YBLX-19 | CHINT Zhejiang |
6 | Potentiometer | WTH(118) | Jiangsu |
7 | Terminal | TD-1520 | Zhejiang |
8 | Stainless steel | 304 | Shanghai |
9 | Bearing | 5 spec | Shanghai |
10 | Turntable | 205 cast iron | Shanghai |
11 | Organic glass | Shanghai |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
