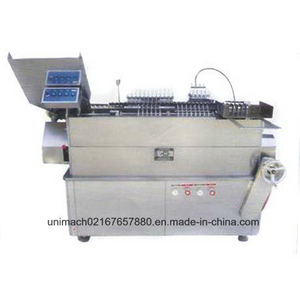

2 Heads Intelligent Glass Ampoule Filling Sealing Machine
The working principle is mainly to transfer the ampoule bottle to the filling system through the transmission system, and the filling system injects the medicine into the ampoule bottle. Subsequently, the sealing system will seal the mouth of the ampoule bottle to ensure that the medication does not leak. In this process, the control system plays a crucial regulatory role, ensuring the accuracy and efficiency of the entire process.
The advantage of ampoule bottle drawing and filling machine lies in its high consistency and accuracy, which can ensure the correct dosage of drugs and prevent liquid leakage. In addition, the device also has high efficiency and can quickly complete the filling and sealing of ampoules.
This type of equipment is mainly used in the field of drug production and packaging, especially those that require high-precision and high-efficiency drug production processes.
Detailed Product Description
Ampoule drawing, filling and sealing combined equipment
With WATSON UK peristaltic pump
Panasonic touch screen control...
The machine is a new generation of the ampoule drawing, filling and sealing combined equipment for injections. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. A modern clutch is mouthed under the ampoule feed hopper. Therefore, the ampoule feeding can be stopped at any time while the machines is still running. So the ampoule lost can be reduced. In the part of stopping filling where changes electromagnetic switch into mechanical switch. It is reliable and durable. Bottle reverse and bottle arranging stricture are used in the device of bottle outlet. It reduces the broken rate of the finished products of ampoules tremendously.
Main technical specifications:
Dimension: 1100× 720× 1400mm
Filling heads: 2 heads
Model: 1-2ml, 5-10ml, 20ml
Capacity: 40-65 ampoules/min
Fuel consumption: Gas 1m3/h, LPG 0.6kg/h
Consumption of Oxygen: 4kg/h
Motor power: 0.37kW
Power supply: 220V 50Hz
Weight: 250 kg
| No. | Name | Model | Qty | Manufacturer /brand | Notes |
| 1 | Motor | JW7114-0.37kW | 1set | Shanghai Regal-Beloit | China and USA joint-venture |
| 2 | Inverter | BFV00042GK 0.4kW | 1set | Taiwan DELTA | |
| 3 | peristaltic pump | 313D | 2 sets | UK, Watson-Marlow | |
| 4 | Step motor | 2S56Q | 2 sets | KINCO | |
| 5 | Driver | 2M530 | 2sets | KINCO | |
| 6 | PLC | VB1-14MT-D | 1set | Taiwan | |
| 7 | Touch screen | MT6070IH2 | 1set | Taiwan | |
| 8 | linear guide rail | 1group | Japan | ||
| 9 | Main shaft | 40Gr Ø40 | 1piece | UNIMACH CHINA | Quenching and tempering: HRB245-265 |
| 10 | Cam and gear | 45 | One group | UNIMACH CHINA | Quenching and tempering and surface hardening:HRC48-52 |
| 11 | Stainless steel | 304 |
![KE1PX$_SO]LLORZU3`DH8UW](http://img.yfisher.com/m5591/1716955263299568.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://img.yfisher.com/m5591/171695526519cd71.png)
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
