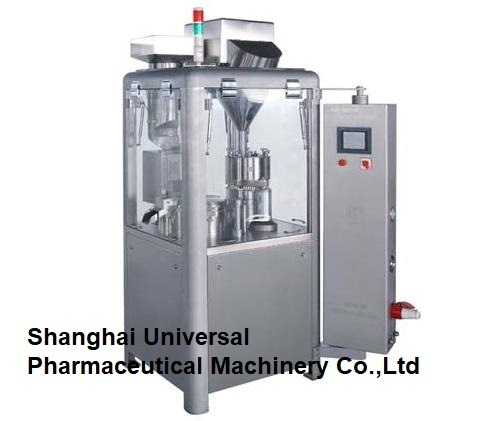

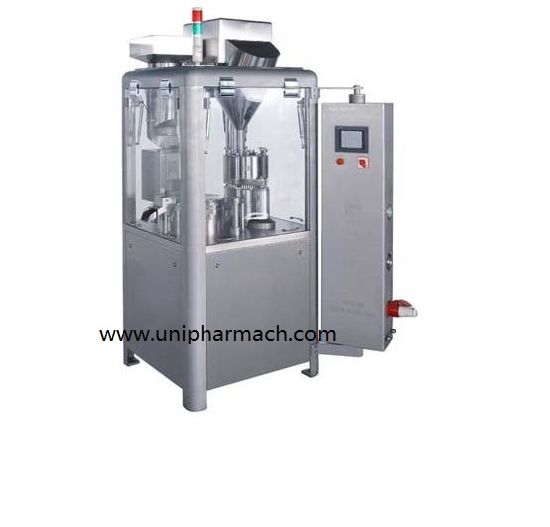

Automatic Capsule Filling Machine with Vacuum Loader
Application
Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.
This unit with many user-friendly features and technology such as:
. Touch-Screen, PLC program control panel with LCD
. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
. Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
. Easy speed selection and closed capsule length adjustment.
. Electrical Appliance control system approved to CE, and international standard.
. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly
. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants
. Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.

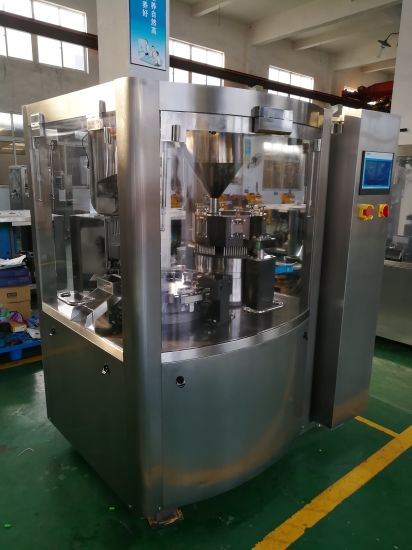

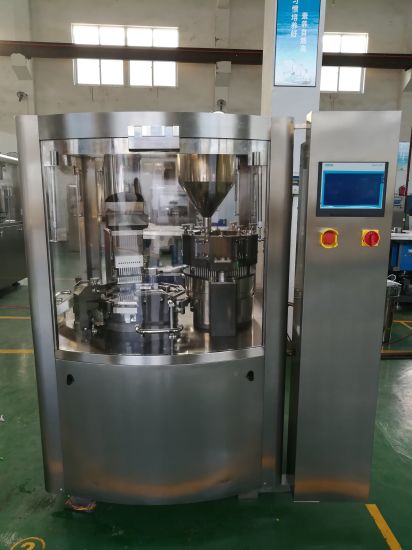

New Design of Fully Enclosed Rotating Table
. With high efficiency, accuracy, and energy saving.
. Easier to clean, dismantle and re set-up the mould.
. The working station cam runs under the good lubricating condition, extends the operating life of change parts.
. Improved the inner design of Mould rotating table, Import 90 PCS beeline bearings for each machine from Japan directly, guaranteed the equipment precision and extended the life of machine.
New Design of Fully Enclosed Dosage Station
. Easier to clean; Keep the dosage in accuracy.
. Enlarge the size of dosage pan (Enlarge 3cm); Increase the powder flowing uniformity in the dosage pan, according to the international standard.
. Adopt three dimensional control elements; Take the undersurface plane of dosage as datum, so as to eliminate the natural transmutation of the dosage pan and copper saucer. It's the special design at domestic market.
| Model No. | NJP-800C |
| Capacity | 800capsules/min |
| No. of Dose | 6 |
| Suitable for Capsule | 00#, 0#, 1#, 2#, 3#, 4#,5#m, safety type of capsule A-E |
| Total Power | 4KW |
| Filling Volume Difference | <±3% |
| Precision for Filling Capsule | 99.5% |
| Vacuum Degree | -0.02 ~-0.06 MPa |
| Water Requirement | Water Ring Vacuum Pump with Water tank to use repeat.water flowing rate: 250L/h |
| Working Environment | 21ºC ± 3ºC,40~50%(relative humidity) |
| Air Exhaust | 110m3/h |
| Overall Weight | 800Kg |
| Machine Dimension | 820mm. (L) x 960mm(W) x 1800mm(H) |
1.Nomally shipping steps:

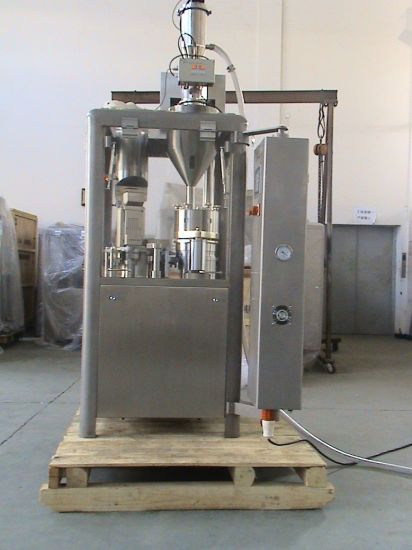

2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
