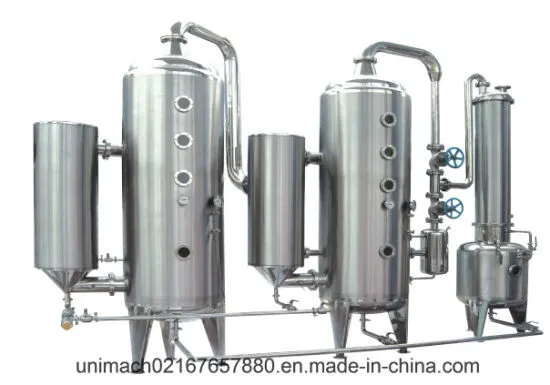

Double Effect External Cycling Vacuum Concentrator (ZNS2)
Applications:
This equipment is widely used to concentrate the liquid in pharmaceutical, chemical, food, dairy products industries, especially applying to concentrate thermal medicine under vacuum and low temperature.
Features:
1. It is designed according to the principle that the steam contains less heat energy under the low temperature (Vacuum) condition than it does under the high temperature condition, while under the low temperature condition, the heat of vaporization is high instead.
2. Referring to the related foreign data, an excellent structure has been adopted in evaporator and heater to remove the steam resistance, decrease the vacuum loss, and reduce the heat wastage, which has gained remarkable energy-saving affection,
3. A strong flow technology of external heating temperature difference cycle has been adopted, which can make cycle speed high, evaporating speed fast, the time of receiving heat short, and not to curdle easily. Its concentrating ratio can reach 1.4 or so.
4. Adopt a two-effect evaporating simultaneously to make full use of the second steam, and each affection`s evaporating temperature, especially applying to thermal medicine s concentrating requirement.
5. The whole set of equipment is made of high-quality stainless steel, according to the demands of the law of medical medicine and food sanitation and reaching the requirements of GMP.
| Model | ZNS2 -500 | ZNS2 -700 | ZNS2 -1000 | ZNS2 -1500 | ZNS2 -2000 | ZNS2-3000 | ZNS2-5000 |
| Water evaporation capacity(kg/h) | 500 | 700 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Steam consumption (kg/h) | 300 | 420 | 600 | 800 | 1200 | 1800 | 300 |
| Steam pressure (MPa) | 0.05~0.09 | ||||||
| Vacuum degree/ temperature(MPa/ºC) | one effect 0.06MPa(85ºC), two effect 0.06MPa(65ºC) | ||||||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
