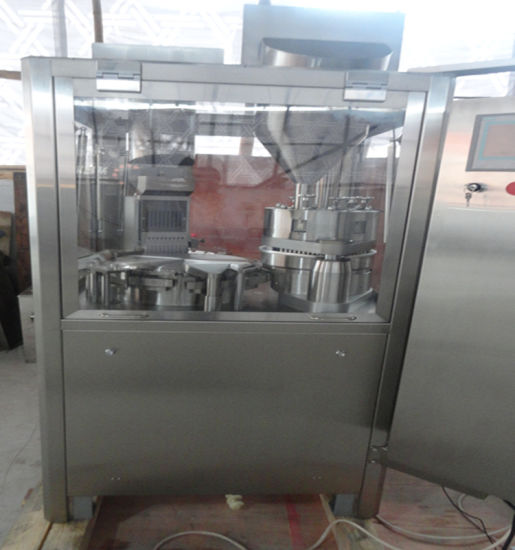

Hard Capsule Filler Filling Machine Equipment
NJP400C, 800C, 1200C, 1800C, 2000C, 3500C model series automatic capsule filling machines are the advanced filling machines which are developed after absorbed many advantages of same kinds of machines inside and outside our country, which conform to GMP standard.
1. This machine runs as per automotive separating revert interval, feeding, removing useless caplets, clipping and coming capsule, cleaning mould are completed at same time, which has reached high precision an low noise levels.
2. With the automotive controlled, stepless speed adjusted digit display, the machine is easy to operate.
3. This machine is with good suitability, high frequency for filling Chinese and Western medicines. Which adopted more whole type working principal, exact calculating, the difference of packing are more advanced than its standard of governments. Which adopted more whole type working principal, exact calculating, the difference of packing are more advanced than its standard of governments pharmacopoeia.
4. It is equipped with safety-protection unit for people ad machine. It can be automatically stopped when the material used up it is good equipment for a manufacture producing capsules.
Main Technical Specification:
| Model | NJP-400C | NJP-800C | NJP-1200C | NJP-1800C | NJP-2000C | NJP-3500C |
| Capacity (Capsules/min) | 400 | 800 | 1200 | 1800 | 2000 | 3500 |
| Capsule Size | 00-5 | 00-5 | 00-5 | 00-5 | 00-5 | 00-5 |
| Filling Precision | >99% | >99% | >99% | >99% | >99% | >99% |
| Designing Precision | Better than CP regulation 380V, 50Hz, 3 phase | |||||
| Voltage | ||||||
| Power (Kw) | 3 | 3 | 6.6 | 8 | 8 | 10.5 |
| Noise db (A) | Lower than 86 | Lower than 86 | Lower than 86 | Lower than 86 | Lower than 86 | Lower than 86 |
| Vacuum (MPa) | (-0.04)~-0.085 | (-0.04)~-0.085 | (-0.04)~-0.085 | (-0.04)~-0.085 | (-0.04)~-0.085 | (-0.04)~-0.085 |
| Compressed Air (Mpa) | 75m3/h0.4 | 75m3/h0.4 | 75m3/h0.4 | 75m3/h0.4 | 75m3/h0.4 | 75m3/h0.4 |
| Suction | 700m3/H2*105pa | 700m3/H2*105pa | 700m3/H2*105pa | 700m3/H2*105pa | 700m3/H2*105pa | 700m3/H2*105pa |
| Overall Size (mm) | 730*950*1700 | 700*900*1800 | 910*1000*1800 | 1100*1300*1800 | 1100*1300*1800 | 1170*1560*2000 |
| Net Weight (Kg) | 700 | 700 | 950 | 1000 | 1000 | 2200 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
