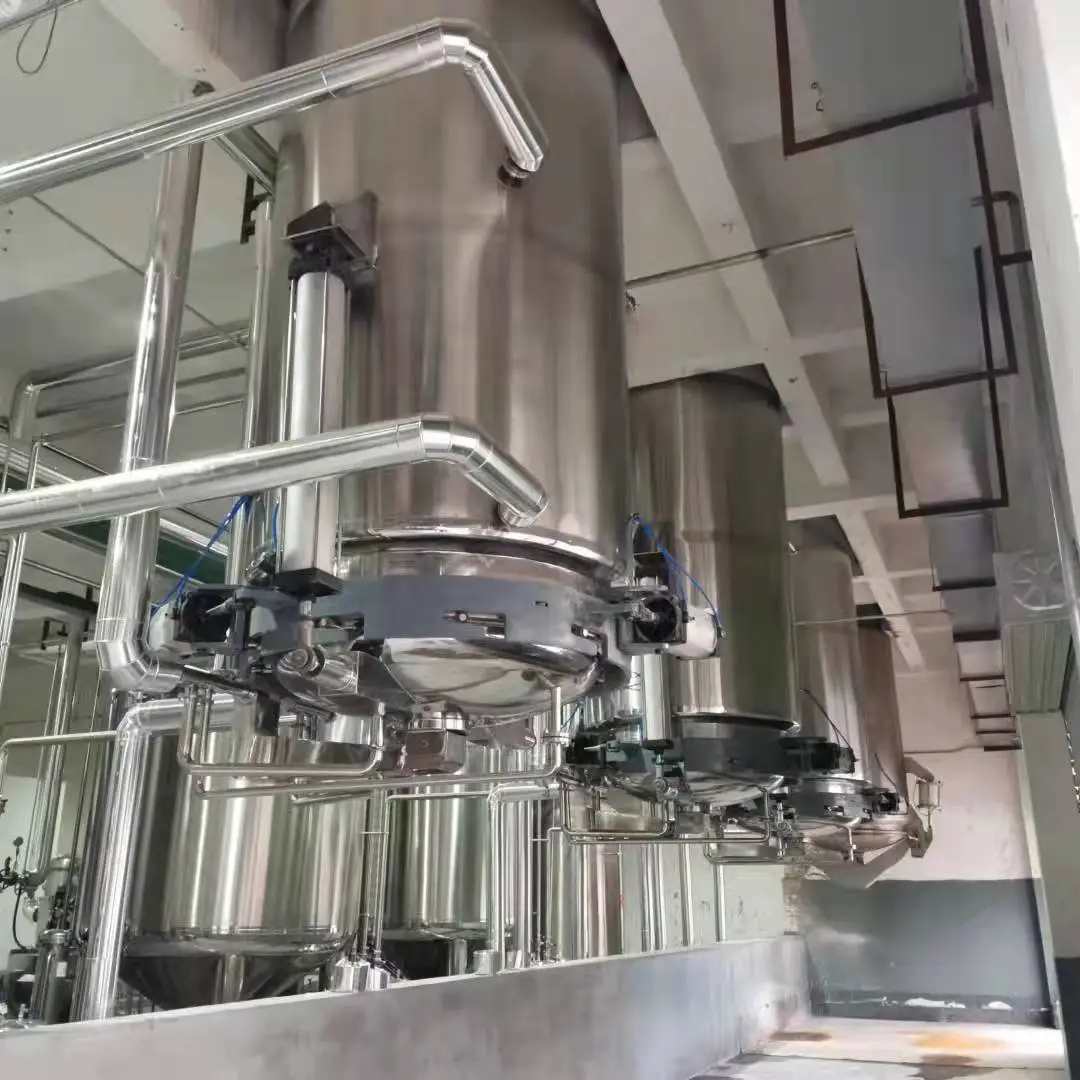

Multi-Funtional Herb Extractor (TQ series)
Multi-functional Extracting tank
Applications
This equipment is often used in such fields as pharmaceutical manufacturing, food, chemical industry
Application: This equipment as a common product in producing herbal medicine, it is often used to extract effective ingredients from Chinese herbal medicine and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.
Characteristics:
A. Its strictly produced based on the standard of pressure vessel, polished in both internal and external side. In accordance with GMP requirements.
B. Its made up of the main jar, foam breaker, condenser, cooler, oil-water separator, filter etc.
C. There are mainly vertical barrel type, positive cone, mushroom type, reverse cone etc. According to the requirements, mixing equipment can be installed.
D. Therere several optional types to install slag-removing door, like double-cylinders, multi-cylinder, spiral and engaging type.
E. As the clients requirement to improve the production affectivity, filter area can be increased when liquid flows out.
Parameters/Model | TQ-0.5m3 | TQ-1.0m3 | TQ-2.0m3 | TQ-3.0m3 | TQ-5.0m3 | TQ-6.0m3 | TQ-8.0m3 |
volume(L) | 500 | 1000 | 2000 | 3000 | 5000 | 6000 | 8000 |
Working pressure of jacket(MPa) | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Working pressure of inner tank(MPa) | Normal pressure | Normal pressure | Normal pressure | Normal pressure | Normal pressure | Normal pressure | Normal pressure |
Heating area(m2) | 2.7 | 3.6 | 5.0 | 6.5 | 8.5 | 10 | 12 |
Condensing area(m 2) | 3 | 4 | 5 | 8 | 8 | 8 | 12 |
Cooling area(m2) | 0.5 | 0.5 | 1 | 1 | 1 | 1.5 | 1.5 |
steam consumption(kg/h) | 65 | 115 | 230 | 345 | 570 | 680 | 900 |
Cooling water consumption(t/h) | 3 | 4 | 5 | 8 | 8 | 8 | 12 |
Diameter of slag-deleting door (mm) | 600 | 800 | 800 | 8000 | 1000 | 1000 | 1200 |
Overall dimensionm | 1.5x1.5x4 | 3x3x5 | 3x3x6.2 | 3x3x6.5 | 3.5x3.5x7 | 4x4x7 | 4x4x8 |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
