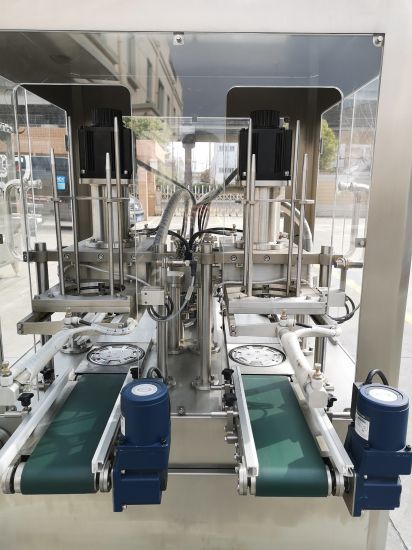

Protein Powder Vacuum Nitrogen Seaming Machine
Protein powder Vacuum Nitrogen Seaming Machine (Two heads)
Descriptive abstract
Applicable scope is milk powder,health products(albumen powder,nutrition powder),solid
drinks,condiments,snack food etc.
Main features
Vacuum seaming station to evacute, gasify and seam cans.
Seal tightly,effectively protect product quality.
The air pressure and nitrogen level inside the cans can be adjusted as per customers request which can
greatly prevent cans distortion caused by thermal expansion and contraction.
The gas inside can is effectively replaced,prolonging shelf life.
Reasonable cap feeding manner: Caps will be put under seaming head in advance then cans lift up and
cap will be taken together to the seaming head-100% precise positioning can be assured.
There is a filter before vacuum pump,with compressed air blow back device,the dust taken away from the filter will be collected through a separated channel,Optional dust collector can be added to the line to clean the filter automatically.
PLC & touch screen make it be easy of operation.
Conveyor belt for feeding and evacuation of cans.
Surface fully stainless steel structure.
Famous brand vacuum pump.
The shape of can is rounder.
The material of can body are tin plate and composite paper.
Main Technical Data
| Speed | 13-14 cans/min |
| Remaining oxygen | ≤3% |
| Can size | φ73─φ131mm/H100-190mm |
| Power supply | 3Phase 208-415V 50/60Hz |
| Total power | 3Phase 208-415V 50/60Hz |
| Total power | 9.1kw (Include Vacuum pump 3kw*2) |
| Air supply | 6kg/cm 0.25cbm/min |
| Need Nitrogen | 10 cbm/hour/set |
| Nitrogen | Purity >99.99%,Pressure:0.4Mpa |
| Overall dimension | 1400*1000*1894mm |
| Total weight | 800kg |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
