USE:

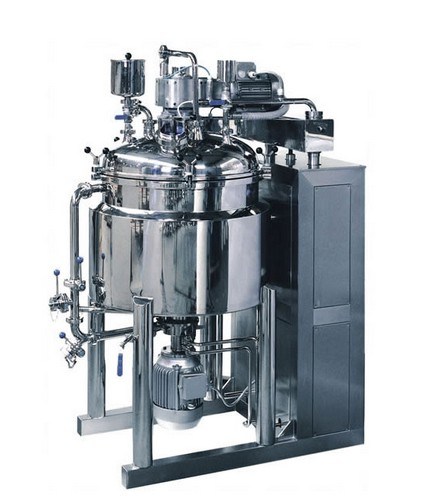

Vacuum mixing emulsifier is used for making suppository, cosmetic, cream. Ointment, toothpaste, lotion, shampoo and liquid which has high viscocity and so on.
Feature:
1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.
2. All pipelines and parameter are controlled automaticlly. And the electric appliance which are imported from foreign country, like Siemens, Schneider and so on.
3. Emulsifying tank is with CIP cleaning system, it make the cleaning to be easy and effective.
4. Emulsifying tank adopts tertiary agitating system, and during the emulsification, the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing, but also can avoid the unnecessary pollution.
Model | Volume | Emulsify | mixer | Outside dimension (mm) | |||||
Kw | r/min | Kw | r/min | L | W | H | M H | ||
TZZRJ- 5 | 5 L | 0.75 | 0- 100 00 | 0. 5 | 0-70 | 1 1 00 | 800 | 1 1 00 | 1 50 0 |
TZZRJ-30 | 30L | 1.5 | 0-3500 | 0.75 | 0-70 | 1500 | 800 | 1500 | 2050 |
TZZRJ-50 | 50L | 3 | 0-3500 | 0.75 | 0-70 | 2750 | 2100 | 1900 | 2600 |
TZZRJ-100 | 100L | 3 | 0-3500 | 1.5 | 0-70 | 2800 | 2150 | 2100 | 2800 |
TZZRJ-150 | 150L | 4 | 0-3500 | 1.5 | 0-70 | 2850 | 2150 | 2150 | 2900 |
TZZRJ-200 | 200L | 4 | 0-3500 | 1.5 | 0-70 | 3000 | 2200 | 2200 | 3100 |
TZZRJ-350 | 350L | 5.5 | 0-3500 | 2.2 | 0-70 | 3650 | 2650 | 2550 | 3600 |
TZZRJ-500 | 500L | 7.5 | 0-3500 | 2.2 | 0-50 | 3800 | 2800 | 2700 | 3950 |
TZZRJ-750 | 750L | 11 | 0-3500 | 3.7 | 0-50 | 3900 | 3900 | 2900 | 4400 |
TZZRJ-1000 | 1000L | 11 | 0-3500 | 3.7 | 0-50 | 3900 | 3400 | 3150 | 4550 |
TZZRJ-2000 | 2000L | 22 | 0-3500 | 7.5 | 0-50 | 4850 | 4300 |

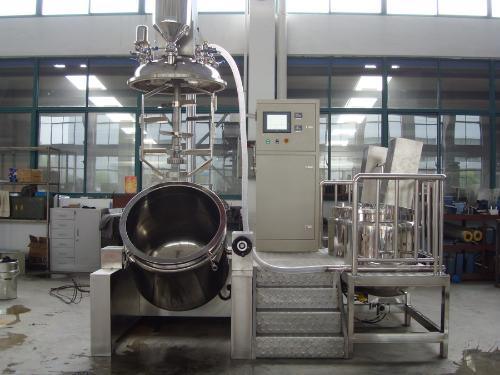

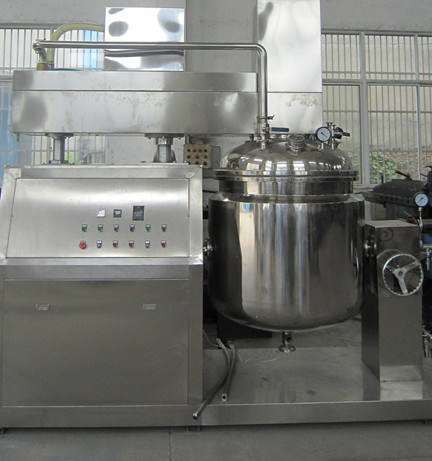

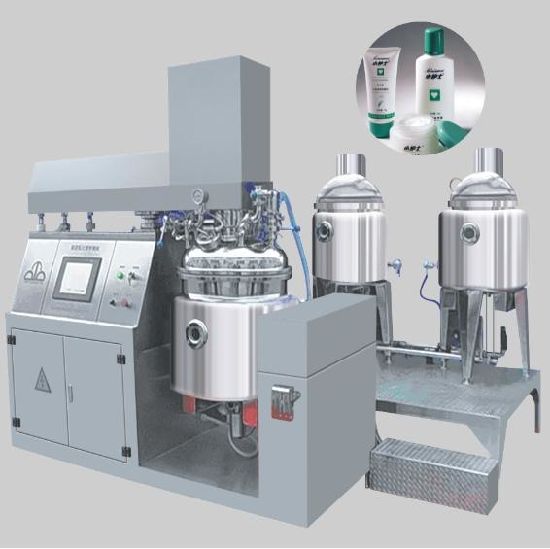

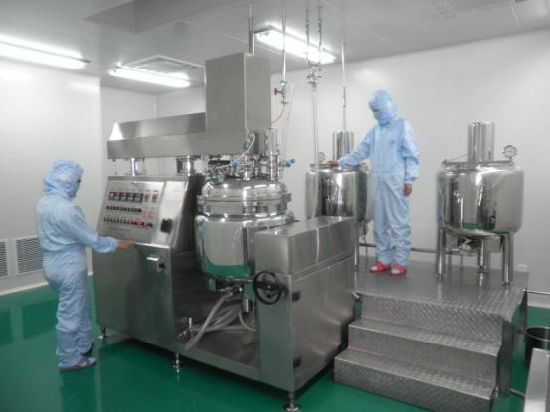

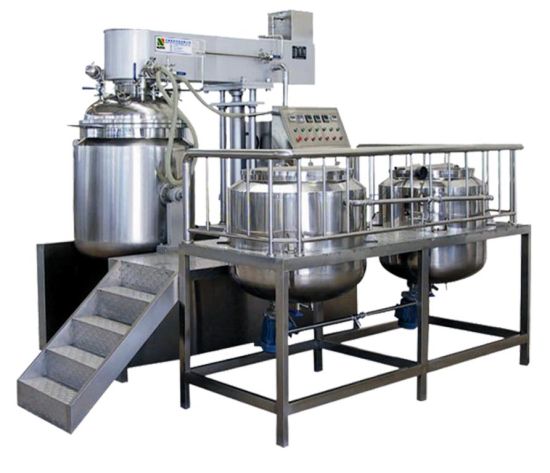

Pictures:
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
