Vials filling and stoppering machine
Machine features:
1. This production line adopts automation technology, imported PLC, imported detection eyes, frequency converters and other electrical and pneumatic components. Efficient, intelligent
Due to its wide adaptability and good stability, it has received unanimous praise from a large number of users.
2. This line is composed of a bottle feeder, a rotary cage bottle washing machine, a self flowing filling machine, a linear capping machine, an aluminum foil sealing machine, and a round bottle labeling machine
Fully automated production line.
3. The filling machine uses food specific steel wire hoses, which do not contain plasticizers and are suitable for industries such as alcohol, medicine, food, and others.
4. The production line operates stably, has low noise, is easy to maintain, and fully complies with GMP certification requirements. It is widely used in alcoholic beverages, pharmaceuticals, food, and chemicals
Industrial and other industries.
5. The whole machine is made of corrosion-resistant stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements for food machinery and food hygiene.
High speed capping machine
Yield capacity: 100-120pcs/min [depend on the vial and medicine liquid]
Capping station: 2
Qualified cap putting: more or equal then 99%
Qualified capping: more or equal then 99%
power supply: 380V 50Hz
power: 1.5kw
outside dimension: 2440×1270×1700

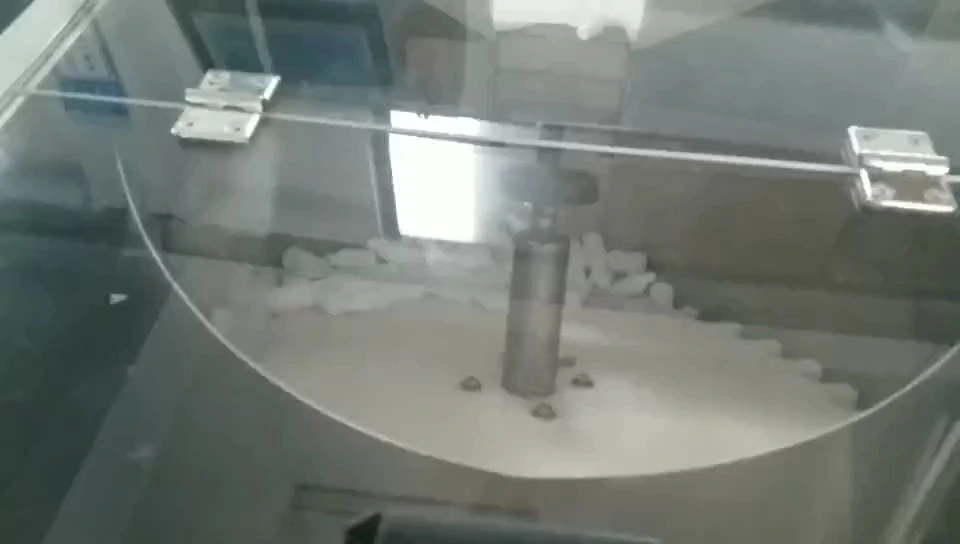

This machine is composed of turn table, bottle transfer channel, the machine order the bottle in one line, and delivery it to the washing machine. This machine can store the bottle, buffering the bottle, and change the bottle flow direction.
Technical parameters:
application: round bottle that can stand on the table steady
turn table dia. : φ900
transfer capability : comply with the washing machine
power supply: 220V 50HZ
power: 0.12KW
outside dimension: 950×1400×950
M ain component
the table, and surrounding plate is imported good quality SUS 304/2B
regulating motor: Shanghai
B utton: Schneider
2, Filling and stoppering machine
Technical parameters:
Yield capacity: 100-120pcs/min
Filling station: 8
Filling range: 1 - 25 0ml
filling tolerance : ±1%
Stoppering station: 2
Qualified stoppering:more or equal than 99%[depend on the stopper quality
Speed regulation: by inverter
power supply: 380V 50Hz
power: 1.8kw
outside dimension: 3000×1270×1550
M ain component
the talbe and surrounding plate, and the part contacted with the bottle is imported good quality SUS 304/2B, the part contacted with liquid is 316L
Technical parameters:
Filling needle: 316L
Filling pump: 316Lpiston pump[the ceramic pump, peristaltic pump is optional]
Inverter Japan
Button: Schneider
Relay: Omron
Air switch: Schneider
AC contactor: Schneider
The main motor:ABB
3 , High speed c apping machine
Yield capacity: 100-120pcs/min [depend on the vial and medicine liquid]
Capping station: 2
Qualified cap putting: more or equal then 99%
Qualified capping: more or equal then 99%
power supply: 380V 50Hz
power: 1.5kw
outside dimension: 2440×1270×1700
M ain component
the talbe and surrounding plate, and the part contacted with the bottle is imported good quality SUS 304/2B
Inverter Japan
Button: Schneider
Relay: Omron
Air switch: Schneider
AC contactor: Schneider
The main motor:ABB

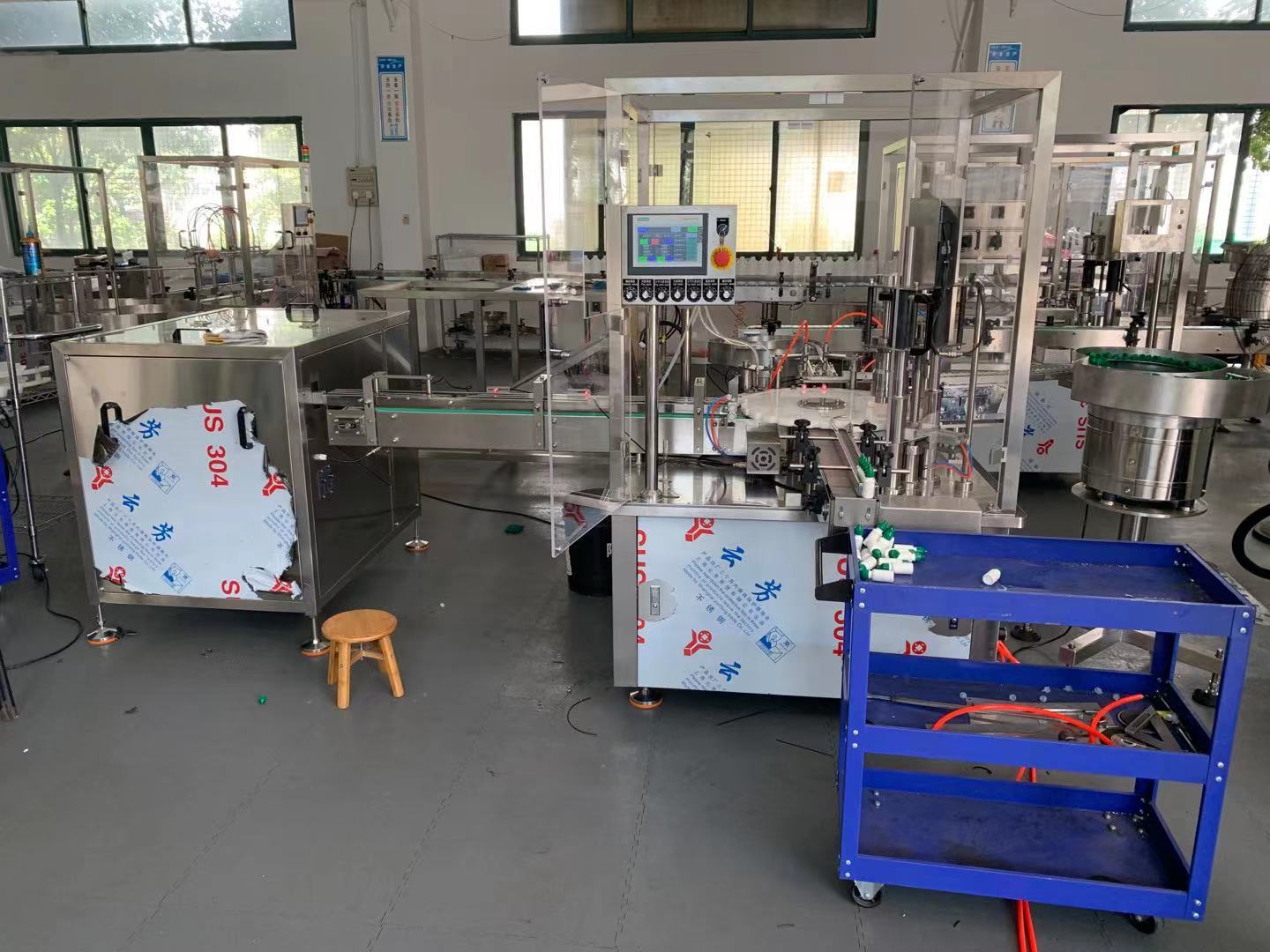

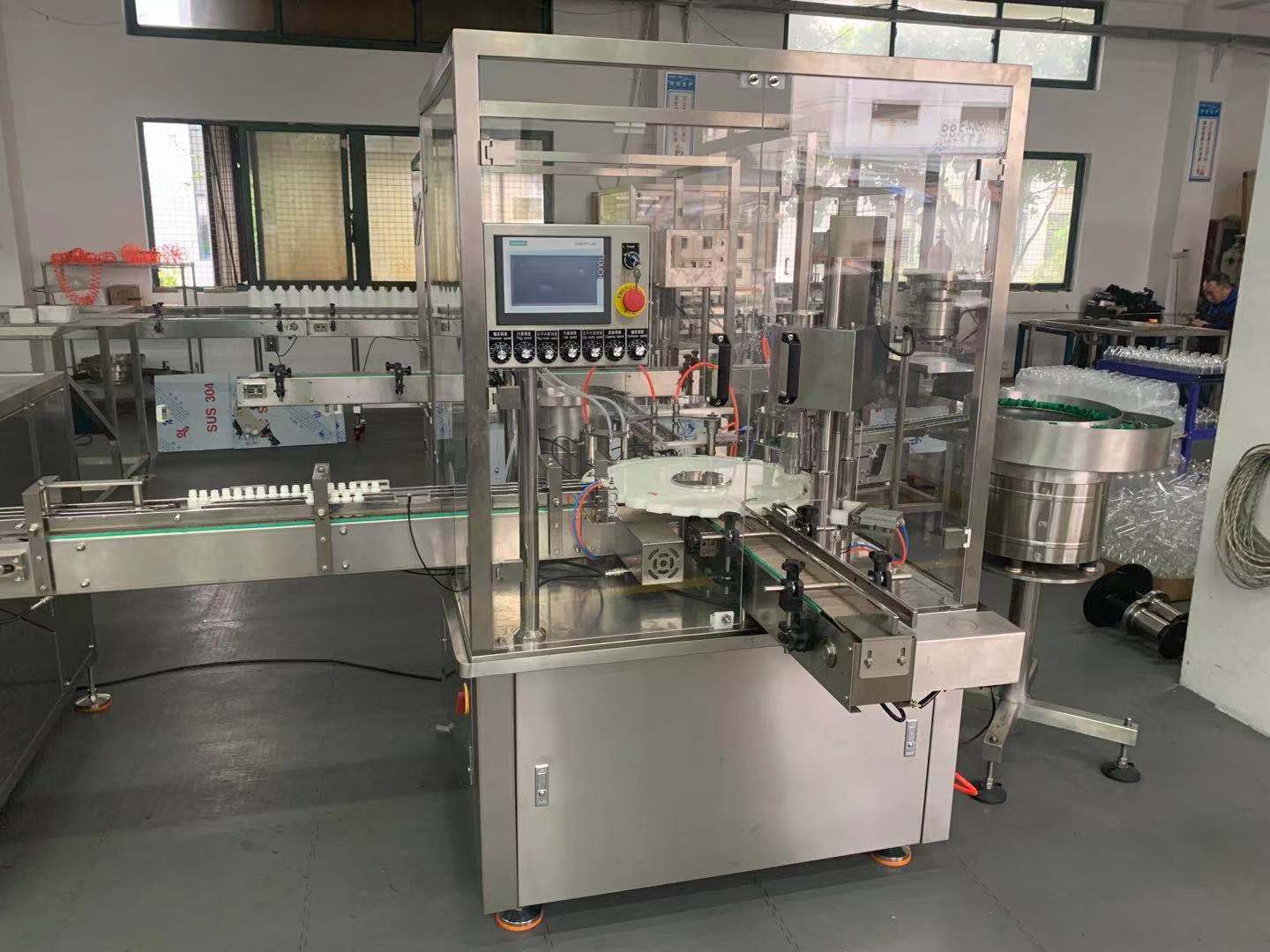

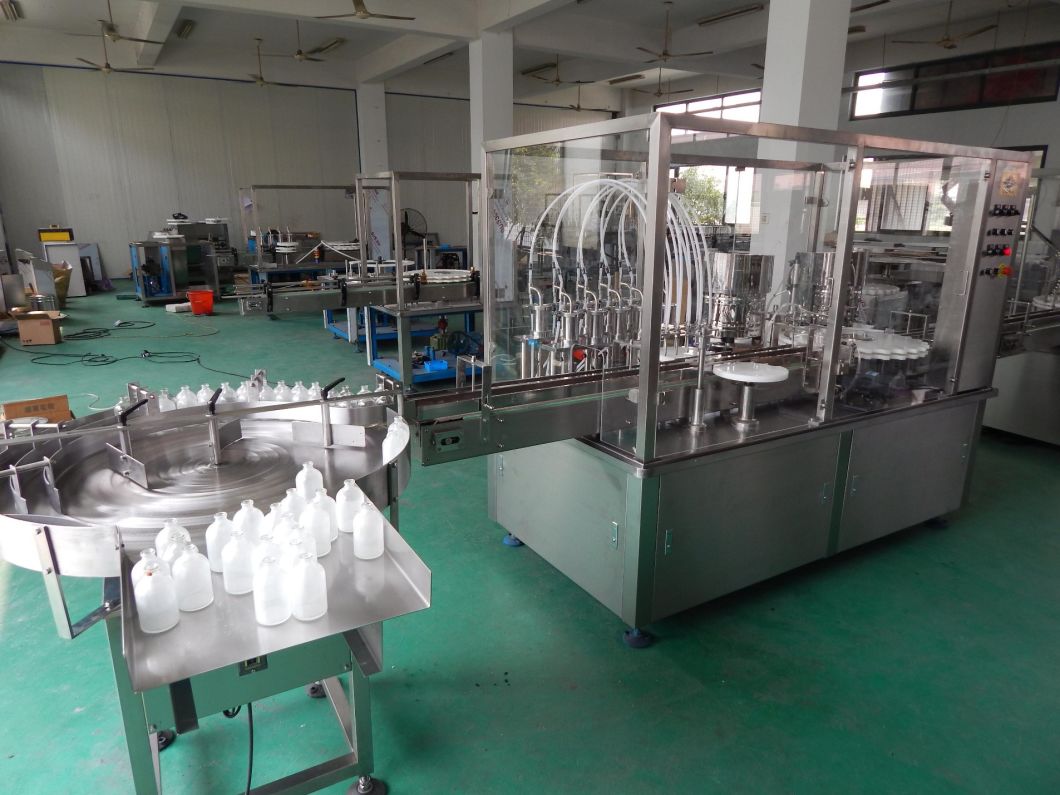

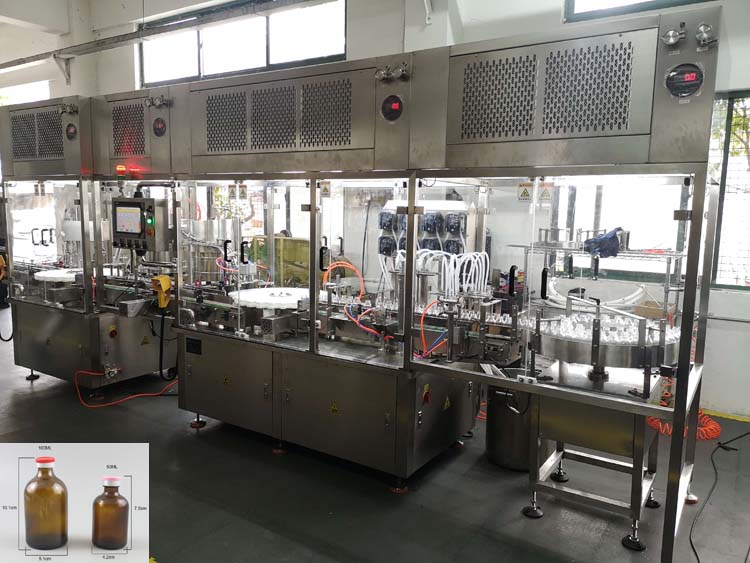

Photos of machine:
