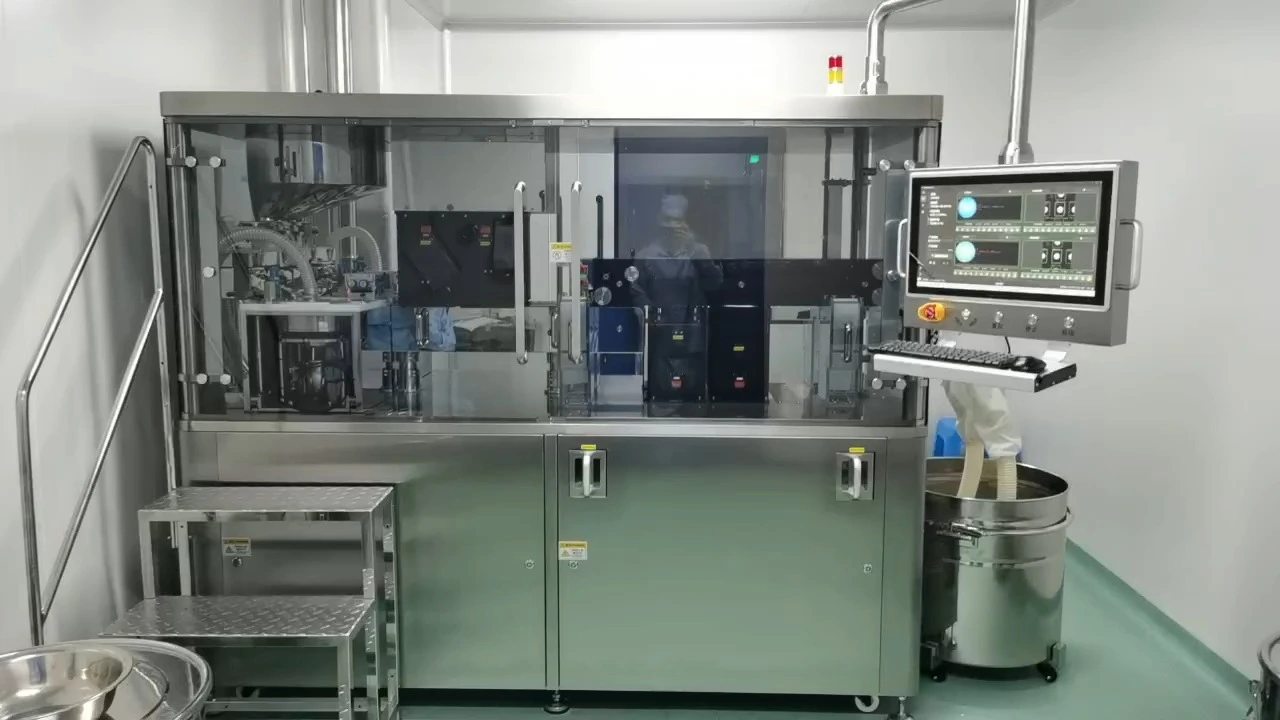

Automatic tablet inspection machine
The 360 tablet detection equipment integrates the advantages of UN optical imaging technology, underlying core algorithms, and automation control technology. It uses 6 2.5D stereo perspectives and 10 2D perspectives to detect defects in the appearance, shape, size, color, and other aspects of tablets in 360 degrees
Product Features
360 ° all-round defect detection without blind spots;
Multi perspective fusion detection technology ensures full inspection of multiple types of defects;
Design chart statistics function to automatically count defect types;
Design a real-time interactive control system to achieve precise single particle positioning and removal;
Design a rejection confirmation function to ensure '0 missed kicks';
Adopting modular quick release design, convenient replacement and cleaning;
Design dust removal and electrostatic discharge devices for the system;
Capable of multi-level management permissions, convenient for production management.
Technical Parameters
No | parameter | Data |
1 | detection range | Conventional tablet: 1. Circular film: diameter 5-13mm, thickness 2-10mm Elliptical tablet: long side 5-22mm, short side 5-12mm, thickness 2-8mm |
2 | Testing content | Abnormal color, dirt, black spots, cracks, damages, protrusions, pits, scratches, size deviation, rough surface, characters, etc. |
3 | Detection speed | Dual channel: 300000 tablets/hour (10mm diameter disc). To determine the specific speed, it is necessary to test the sample. If the pill is too large or too small, or if it is an irregular tablet, it may require customization and modification. Please discuss with the customer in advance. |
5 | Power supply power | Dual channel: AC380V/3P/50Hz； 12KW (dual channel) |
6 | total weight | Dual channel: approximately 2100KG (dual channel) |
7 | MPa | 0.5-0.7MPa |
