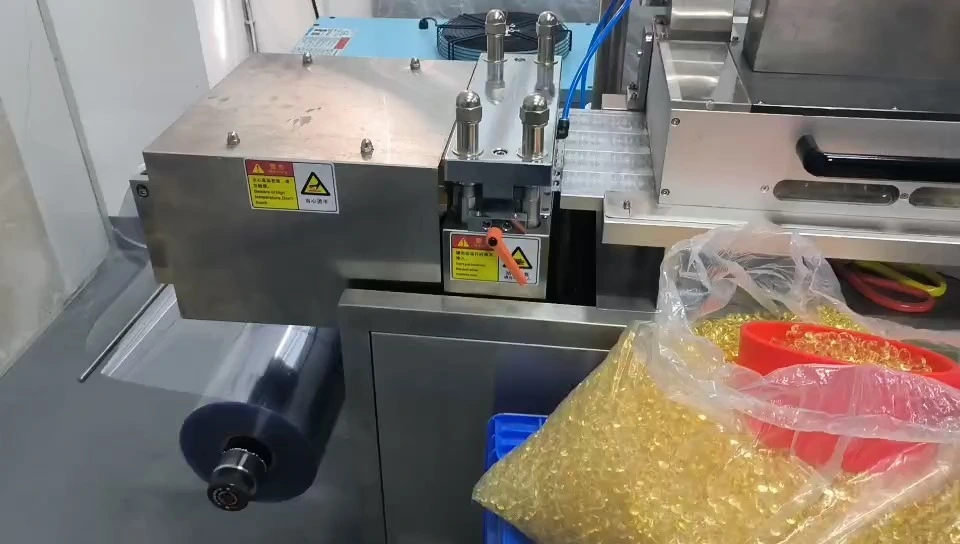

Aluminum plastic blister packing machine
DPP-250A flat plate automatic aluminum-plastic blister packing machine is suitable for various specifications of capsules, tablets, sugar coated tablets in the pharmaceutical industry
Da Mi Wan, injections, ampoules, etc. It is medical equipment such as surgical instruments, medical devices, and various electronic and electronic devices
Bubble sealed packaging equipment for products such as gold. This machine can automatically realize PVC feeding, PVC heating, and PVC
Molding, drug feeding, PTP feeding, sealing of PVC and PTP, printing batch number, tearing line, punching and cutting of drugs
Packaging machinery that integrates more than ten functions such as output and display. Long shelf life, good sealing performance
The section is beautiful, safe, and hygienic, improving the product level.
2. Performance characteristics
Input the length of the plate in the human-machine interface to achieve adjustable travel, mold positioning slot positioning, and convenient mold replacement,
Accurate photoelectric alignment, encoder controlled positive pressure bubble forming;
Human machine interface, PLC programmable control, variable frequency stepless speed regulation.
Automatic cutting can design various molds and feeders according to user requirements.
You can choose tangent indentation, batch number printing, and waste recycling device.
Adopting servo motor traction for greater stability.
The cylinder heat seal shutdown and automatic separation of the heat seal mold will not burn the packaging and extend the service life of the machinery.
Product Description
This machine adopts advanced mechanisms such as contact heating of forming materials, cold stamping forming (hard double aluminum), and flat sealing. The whole machine fully complies with GMP requirements and can be widely used in pharmaceuticals (capsules, tablets, ampoules, penicillin bottles, pills, suppositories, etc.), food, industrial small products, cosmetics, and medical devices.
Performance advantages:
1. Mold replacement and adjustment are convenient and fast, and aluminum-plastic composite film is formed by cold stamping. The structural design is reasonable and will not cause deformation or breakage of the bubble cover due to prolonged baking of PVC and aluminum foil by the heat sealing plate during work shutdown.
2. Equipped with a fracture line and batch number printing device, the imprint and batch number are clear and beautiful. A filling platform of sufficient length can be used to meet the packaging needs of different materials and special irregular materials, including plate forming, plate sealing, ensuring the flatness of the plates and the firmness of the bubble caps.
Performance characteristics:
1. Adjustable travel, precise mold positioning, easy mold replacement, accurate alignment, contact heating, positive pressure bubble forming
2. Human machine interface, PLC programmable control, variable frequency stepless adjustment
3. Automatic feeding, various molds and feeders can be designed according to user requirements
4. You can choose tangent indentation, batch number printing, and waste recycling device
5. Adopting a mechanical arm to clamp the feed, linear reciprocating operation, accurate and reliable synchronization (can improve the traction of the stepper motor)
6. Cylinder heat sealing, automatic separation of the shutdown heat sealing mold, will not burn the packaging, extending the service life of the machinery
| project | Technical parameters |
| Punching frequency | 10-45 times/min, 1-5 versions/time (variable frequency adjustable) |
| Production capacity | Standard version calculation: 9000 boards/hour |
| Adjustable range of itinerary | 30-130mm |
| Section specifications | Can be designed according to user requirements |
| Maximum molding area and depth | 250mm× 120mm× 30mm |
| Packaging materials (with roll aperture ranging from 70-76mm) | Non toxic PVC (plastic sheet): width 270mm, thickness 0.15-0.5mm Adhesive coated PTP (aluminum foil): width 270mm, thickness 0.02-0.15mm Dialysis paper: width 260mm, specification 50-100g |
| Power specifications | 380V 50HZ 8KW Three phase five wire system |
| Pump capacity | ≥ 0.45m3/min (self provided) Pressure: 0.6-0.8Mpa |
| Mold cooling | Tap water or circulating water Consumption: 40-80L/h |
| External dimensions (L× W× H) |
Split body :2140mm× 750mm× 1600mm
1330mm× 750mm× 1600mm
whole:3470mm× 750mm× 1600mm
|
| Whole machine weight | 1500kg |
