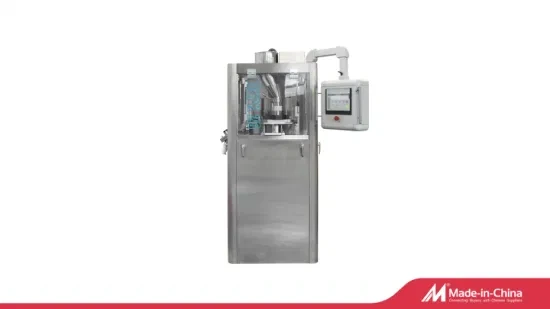

Automatic High-Speed Rotary Tablet Press Machine
1. The main components of the electric control cabinet are imported components from abroad, PLC adopts original Siemens products, and human-machine interface adopts Taisiemens 10-inch series color touch screen.
2, low voltage electrical appliances use SIEMENS and Schneider and other international famous brand products;
3. Frequency converter uses SIEMENS products.
4. Turbine vortex rod adopts high precision products of Tianjin Huachang brand.
5. Bearing series all adopt NSK products imported from Japan.
6. The flushing disc is made of corrosion-resistant material with good rust and corrosion resistance.
7. Imported high-precision TEDEA-HUNTLEIGH sensor and amplifier are used in the pressure sensor acquisition and transmission system to realize real-time pressure detection and analysis. Automatically adjust the filling depth of the tablet machine to realize automatic control of tablet production. At the same time, the mould damage and powder supply situation of the tablet press are monitored to play the role of safety protection. The production cost is greatly reduced, the passing rate of the tablets is increased, and the management of one person and multiple machines is realized.
Main technical parameters
|
Model GZPK |
26 |
32 |
40 |
|
|
No. of station |
26 |
32 |
40 |
|
|
Capacity(tablets/h) |
Max. |
160000 |
210000 |
260000 |
|
Min. |
30000 |
30000 |
30000 |
|
|
Rotation speed (rpm) |
Max. |
102 |
105 |
105 |
|
Min. |
11rps/min |
11rps/min |
11rps/min |
|
|
Max.tablet diameter |
Ф25 |
Ф16 |
Ф13 |
|
|
Main pressure |
100KN |
80KN |
80KN |
|
|
Pre-pressure |
20KN |
20KN |
20KN |
|
|
Max. filling depth |
20mm |
16mm |
16mm |
|
|
Dia. of die (mm) |
38.1 |
30.16 |
24.01 |
|
|
Length of punch |
133.6mm |
133.6mm |
133.6mm |
|
|
Main motor power |
11KW |
7.5KW |
7.5KW |
|
|
Dimension |
930(+438)*850(+438)* 1945 |
|||
|
Net weight (KGS) |
1950 |
1950 |
1950 |
|
Efficient, precise, versatile, reliable
This high-speed rotary tablet press machine offers the capability to produce a large volume of round and special-shaped tablets. With its double pressure structure and 33 die sets, it can efficiently press up to 66 tablets in one rotation while allowing adjustments for speed, filling depth, and tablet thickness. Equipped with a powder suction box and mechanical buffer device, this machine ensures smooth operation and high-quality, dust-free tablets in line with GMP specifications.
● Efficient
● High-capacity
● Quality-assured
● Versatile
Product Display
Efficient High-Speed Tablet Press
The Automatic High-Speed Rotary Tablet Press Machine is a double pressure type with two sets of feeding devices and two sets of wheels, allowing for the installation of 33 sets of die on the turntable. With a maximum capacity of 260,000 tablets per hour and the ability to adjust speed, filling depth, and tablet thickness, this machine is suitable for mass production of round and special-shaped tablets. The mechanical buffer device helps prevent damage from overload, and the machine is equipped with a powder suction box to recycle raw materials and avoid sticking and clogging.
◎ Speed
◎ Precision
◎ Quality
