Cone shaped ribbon vacuum dryer
Metallurgical industry:
Dry metal powder, metallurgical powder, etc
Equipment Description:
Introduction:
The conical spiral belt vacuum dryer adopts tank jacket heating, which increases the heat exchange area and greatly improves the heating efficiency.
The propeller agitator lifts and continuously shears and disperses the material during operation. It ensures that all materials in the container can move fully and that the materials are not subjected to any external force except for lifting from the propeller, eliminating ineffective friction between the materials and the tank body.
The unique propeller stirring not only meets the mixing effect, but also increases the heating area and shear crushing effect, avoiding the agglomeration or granulation phenomenon caused by material thermal sensitivity.
Under the power drive, the screw belt inside the tank slowly rotates and lifts, and the materials inside the tank are fully mixed and evenly distributed, thereby achieving the purpose of strengthening drying.
Equipment principle
The equipment mainly consists of a drive system, a motor reducer, a frame, bearings, a conical cylinder (with a jacket), a stirring screw, a sampling valve, a packing seal, and other components. By using a direct connection between a motor reducer and a stirring screw belt, with variable frequency speed regulation, the screw belt stirrer can achieve a bottom-up spiral circulation mixing effect for materials. Flexible graphite packing is used for sealing between the mixing shaft and the head to prevent external impurities from entering. Both the conical cylinder and the elliptical head are equipped with jackets, which can accommodate different types of heat media and withstand certain pressures. They can be heated while stirring and mixing to achieve the purpose of material drying.
Structural characteristics and functions
Efficient mixing: Even when mixing materials with different densities and particle shapes, high mixing accuracy can be achieved.
Low shear mixing: Using a low shear helical mixing blade, the material is gently mixed at low speed and low energy consumption, resulting in low mixing strength and time.

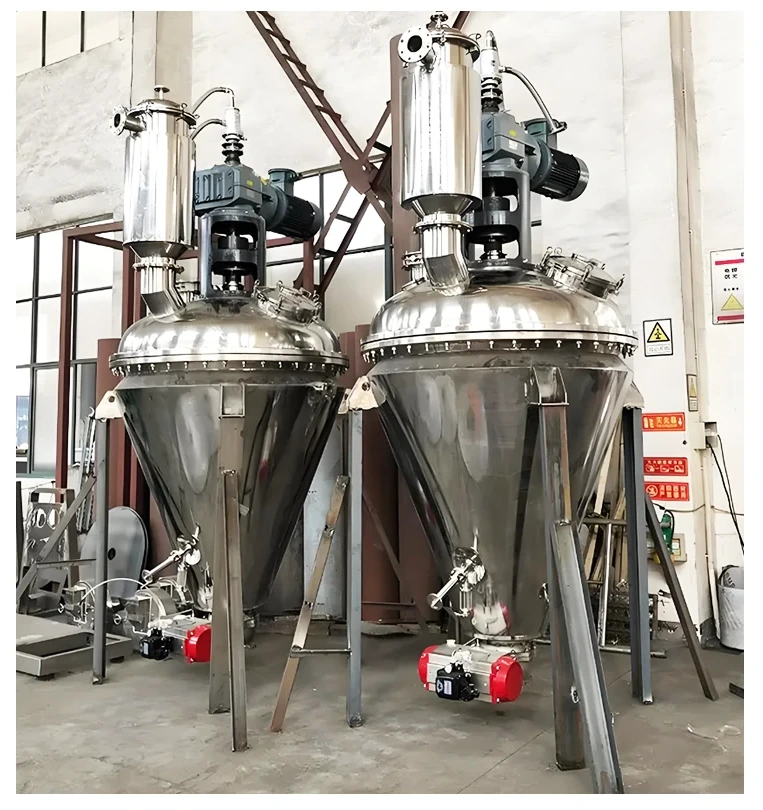

Product Display
Product Advantages
Strong material handling capability: capable of effectively separating and mixing materials with strong viscosity. The filling rate is 30% -90% of the effective working volume, and consistent results can be obtained for mixing and drying with different loading amounts within this range.
Fully enclosed design: All connecting components, including feeding and discharging, are fixed to meet material and environmental safety requirements.
Other features: equipped with a large-diameter ball section discharge valve; Adopting a closed conductive drying method, which is energy-saving, efficient, and pollution-free; During the process of feeding, drying, mixing, and discharging, there is no contact with the outside air, no leakage, and no product cross contamination, which meets GMP requirements; The inner and outer surfaces are polished with mirror finish, and the special discharge design ensures rapid discharge; Good heat transfer effect, no clumping or "snowball" phenomenon.
2. Technical parameters of LDG300 conical spiral belt vacuum dryer
Effective volume: 300L
Main motor (power): 3Kw
Diameter:~1m from the upper opening
Working temperature:~50-100 ℃
Design pressure (shell) positive pressure:<0.3Mpa
Vacuum:<-0.096Mpa
Type of hood: quick opening single door
Feeding method: manual feeding
Unloading method: pneumatic or electric valve
Startup method: Variable frequency startup
Transmission form: direct transmission
Rotor speed control: Variable frequency control
Panel settings: human-machine exchange interface
