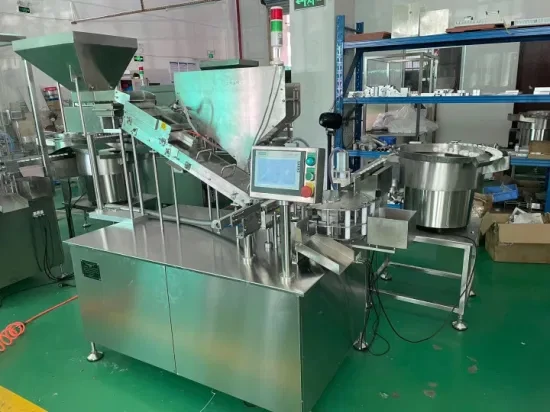

Effervescent Tablet Tube Filling Machine
1. Introduction
Tube Filling Machine For Tablet is applicable to the packing bigger and thinner tablets which are orderly fed into bobbin bottles in single row in an overlapping way . The device utterly adopts a PLC for centralized control, it is verified in fiber and photoelectric detections and other kind of detections to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets , bottles or covers .
its part in contact with the tablets is made of superior 304 or 316 stainless steel , which totally meets the GMP requirement .Thus , it is the best device for pharmaceutical factories .health product factories and food factories to pack tablets and other products alike .
2.component parts and function :
1)Cap Vibrating pan: put capping to vibrating feeding by manual, it will according to design cap direction and send fix press-cap location auto
2)Feeding Vibrating parts: manual put tablet into hopper, vibrating feeder will send tablet make sorting parts, this parts send tablet device and sorting tablet parts automatically. When over tablet is more that will stop send tablet, otherwise will send tablet.
3)Tablet sorting parts and Collection parts: This parts function will no-sorting tablet arrange well according to same direction and design quantity , also collection and together and send into push tablet parts.
4)Push tablets into tubes (bottle): when check have bottle that will lift auto, tablet auto and send tablet cylinder will put tablet into bottle.
5)Tube hoppers parts: manual put bottle to stock hopper according to same direction , It will sorting and arrange enter into tablet location according to sort by vibrate bottle.
6)Press-capping parts: when check bottle with tablet that it will press-cap to mouth by press-capping machine automatically. No tablet or lack tablet can’t press-capping. It will reject without press-capping bottle automatically
7)Electric control parts: this machine running process by PLC control. It will carry out automatically, when loose packing product, it will alarm and stop machine auto
Step right up and behold the Effervescent Tablet Tube Filling Machine! Watch as it flawlessly fills tube after tube with effervescent tablets, like a well-choreographed dance of precision and speed. The sleek design, efficient operation, and perfect results will leave you in awe and make it a must-have for any pharmaceutical or nutraceutical manufacturer.
Efficient, precise tablet filling
Our Effervescent Tablet Tube Filling Machine is designed to provide safe, efficient, and accurate filling and capping of tablets into tubes. With automatic tablet feeding and counting, as well as detection and rejection features, this machine ensures 100% accuracy in the filling process. Made of superior stainless steel, it meets GMP requirements, making it the best choice for pharmaceutical, health product, and food factories. Get the best performance and high-quality packaging with our TP-40B Effervescent Tablet Tube Filling Machine.
● Efficient
● Accurate
● High-quality
● Top choice
Product Display
Efficient Tablet Filling Machine:
Efficient, precise, high-speed filling
The Effervescent Tablet Tube Filling Machine, TP-40B, is designed for efficient, accurate, and clean filling and capping of tablets into tubes. It features automatic tube feeding, tablet counting, and cap sealing, ensuring 100% accuracy and no filling or capping if tubes or tablets are missing. The machine is equipped with a PLC+HMI control system, and its contact parts are made of superior stainless steel, meeting GMP requirements. With a filling range of 10-30 tablets per tube, and a capacity of 40 tubes per minute, this machine is ideal for pharmaceutical, health product, and food factories.
◎ product charact 1
◎ product charact 2
◎ product charact 3
Application Scenario
Material Introduction
The Effervescent Tablet Tube Filling Machine, also known as the TP-40B, is a state-of-the-art device designed for pharmaceutical, health product, and food factories to efficiently and accurately pack effervescent tablets such as Vitamin C and calcium. It features automatic tablet feeding, counting, and capping, with 100% accuracy to ensure high-quality production. The machine also incorporates a PLC+HMI control system and is made of superior 304 or 316L stainless steel to meet GMP requirements, making it a safe, efficient, and reliable choice for tube filling operations. With a filling range of 10-30 tablets per tube and a maximum capacity of 40 tubes per minute, this machine is designed to streamline production and ensure consistent results.
◎ Efficient and Accurate Tablet Filling
◎ Automatic Stopper Feeding and Sealing
◎ High Capacity and Quality Construction
