Fully automatic vertical bag packaging machine
As long as the main machine frequency conversion speed regulation system is adopted, the fully automatic self-supporting packaging machine can adjust the speed at will and can be used normally under large load changes; the servo feeding system can directly control the screw speed to feed, and the adjustment is simple and stable; the PLC positioning module is adopted to achieve precise positioning to ensure small bag shape error; the PLC integrated control system is adopted, with strong control ability and high integration, and the touch screen technology is used to make the operation convenient and reliable; it can automatically complete the packaging process such as bag making, metering filling and sealing. It is a fully automated production equipment. Depending on the selection of different forms of filling machines and the packaging of different products, the finished bag type is a self-supporting bag.

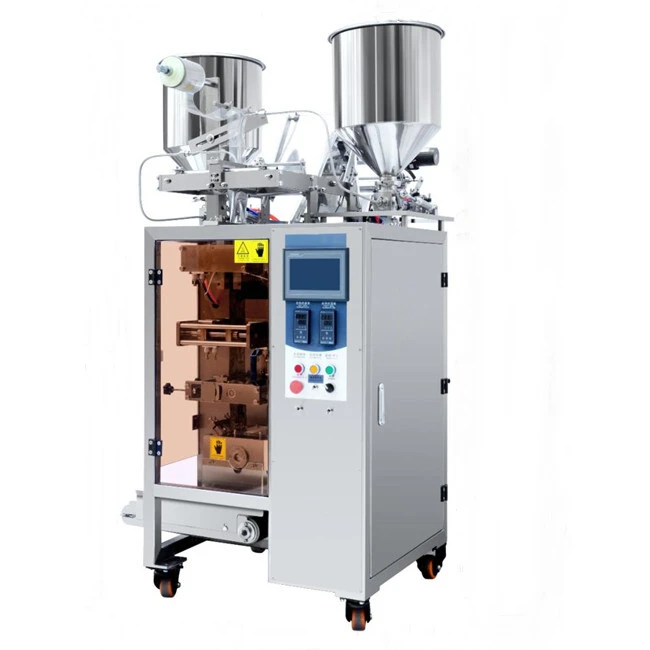

Full Automatic Single Lane Hair Dye Shampoo Packing Machine with Pockets
Technical Specifications:
Model | HY-YS100/YS200/YS300 |
Filling range | （15+15）ml |
Sachet size | W：90mm,L:120mm |
Max. film width | 280mm/320mm/720mm |
Sachet type | Four sides seal with double compartments |
Filling method | Piston pump |
Capacity | 20-35ppm |
Power Voltage and consumption | 220V50-60HZ/1.5KW |
Air pressure and consumption | 0.3m⊃3;/min 0.6-0.8Mpa |
Dimension(L*W*H) | 1165*1319*1680mm |
Weight | 350KG |
Application
Applicable to the automatic packaging of liquid paste products in the cosmetics industry, such as: a black wash + double oxygen milk, shampoo + conditioner, shampoo + shower gel, etc.; divided into left and right compartments and front and back compartments, while measuring 2 Different materials.
Features:
1. Film on backside of machine and the molding is more stable;
2. Full pneumatic control including metering and bag making, simple operation, less wear parts in the later period, reducing parts replacement;
3. Material: The cabinet is made of SUS304 stainless steel, and the material contact part is made of SUS316L stainless steel, which is in line with GMP production.
4. The heat-generating parts and moving parts are hidden in the protective cover, which is safe and reliable.
5. The equipment is equipped with casters for easy handling and movement.
Mechanical characteristics and product characteristics:
1. It is specially designed for chemical products with high pH and alkali. The barrel is made of SUS316L stainless steel, and the PH value is up to 10 degrees. It is made of plastic barrel (bottled Yibao);
2. Two diaphragm pumps are used for automatic feeding, and the material is automatically fed, the material is completely stopped, the contact between the material and the air is reduced, and the manual feeding time is saved;
3. The packaging film of a black-washed product is quite special, and a high-strength and alkali-resistant material is required, and the intermediate film can satisfy the two-side heat sealing;
4. Single package and even package are required, cut by pneumatic cutting knife; single package is cut by rotary knife;
5. The heat-generating parts and moving parts are hidden in the protective cover, which is safe and reliable.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
