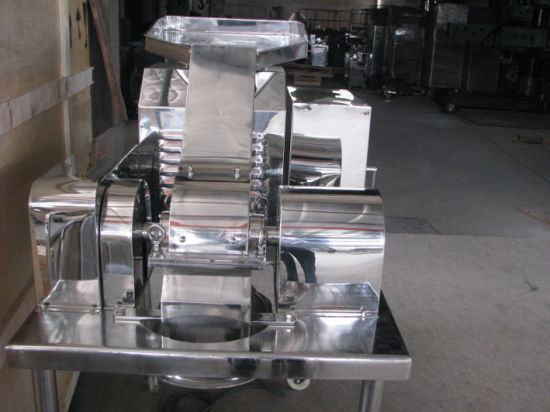

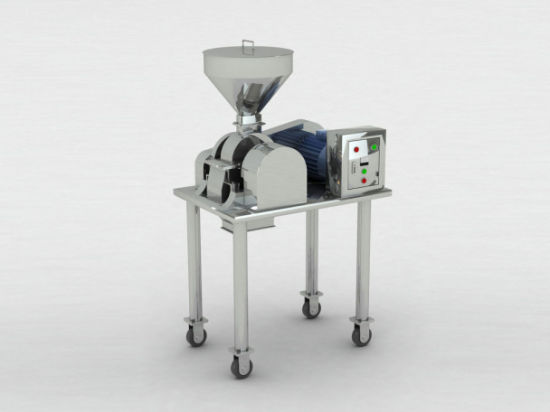

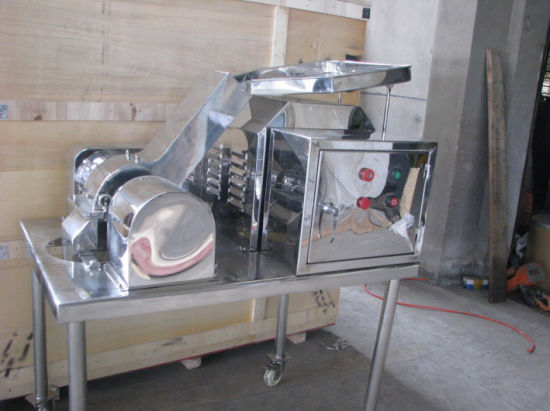

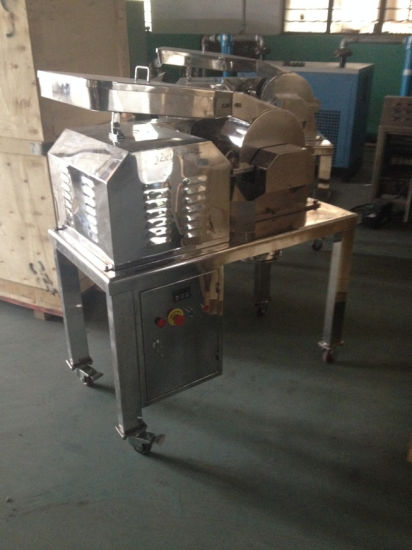

Gfsj-8A Series Good Quality High-efficient pulverizer (Fitzmill)
Product features: This machine has a simple structure, and the crushing chamber is easy to install, disassemble, and clean. All parts in contact with materials in the crushing chamber are made of stainless steel materials, which can be acid and corrosion resistant, making the crushed materials more hygienic. This machine has the advantages of stable operation, convenient movement, low noise, good crushing effect, and low power consumption.
GFSJ Series High Efficient Crusher (Fitzmill)
Main Application :
Designed with the principle of mixed dusting method, this machine is widely used in such trades as pharmaceutical, foodstuff and chemical etc..
Features:
This machine is simple in structure, easy to assemble and clean the crushing chamber, and all parts contacting the material are made of stainless steel,acid and corrosion resistant, making crushed material be in conformity with hygiene requirement. In addition, this machine has smooth operation, convenient move, low noise, good crushing effect and low power consumption.
Working Principle:
This machine is high speed running equipment, in which, material is crushed by cutting of high speed blade which is of a sharp edge on one side and an impact blade on the other side. Blades of different sizes and shapes are available for choice according to different materials, and the particle size can be obtained through replacement of screen or adjustment of speed.
Technical Specifications:
| Model | Production Capacity | Fineness of finished product | Adjustable speed | Motor Power | overall dimension | weight |
| GFSJ-8A | 10-100kg/h | 12-120mesh | 2100-2800r/min | 3KW | 1050*600*1600mm | 150kg |
| GFSJ-16A | 50-300kg/h | 12-120mesh | 2100-2900r/min | 5.5KW | 1100*860*1520mm | 250kg |
| GFSJ-32A | 100-550kg/h | 12-120mesh | 2100-2900r/min | 11KW | 1280*950*1600mm | 320kg |
![KE1PX$_SO]LLORZU3`DH8UW](http://img.yfisher.com/m5591/1716955263299568.png)
![RX2]L7{%NOW0`YXF9~)M{_G](http://img.yfisher.com/m5591/171695526519cd71.png)
