Horizontal ribbon blender
The Horizontal ribbon blender is widely used for mixing powders and solids, powders and liquids in various industries such as chemical, battery raw materials, coatings, dyes, pesticides, pharmaceuticals, food, feed, additives, refractory materials, new materials, electronic plastics, ceramics, fertilizers, metallurgy, mining, dry powder mortar, special building materials, etc. The mixing efficiency of the horizontal screw belt mixer is twice that of the conical mixer
Product Introduction
1、 Product Introduction
1）. Parameters of a UNDH horizontal screw belt mixer to configure. Quotation Equipment design and manufacturing features.
2. Specification and model: UNDH-1000L, effective volume: 600L, loading factor: 0.6, calculated based on bulk density The bulk density of each batch of mixed material is 0.42.
3. Equipment welding Polishing The selection of accessories and craftsmanship meet the requirements of food Drug production and manufacturing requirements meet FDA standards.
4. The feeding method of the equipment adopts the fully open top cover pouring mode, and the top cover is closed after feeding The upper cover adopts pneumatic support spring rods on both sides for opening and closing, which is convenient for increasing the opening angle and loading, and easier for cleaning.
5. The sealing between the upper cover and the cylinder is made of food grade silicone sealing ring, which is elastic and has excellent sealing performance when the upper cover is closed. There is no dust during the production process
6. The upper cover is equipped with an exhaust hole with a diameter of 150-200mm, and the exhaust hole has a filtering device When mixing materials, the air circulates to the outside and the powder does not flow out.
7. The motor adopts (Jiangyin Dazhong) to achieve IE2 efficiency level, and is equipped with an independent electric control box. The mixing time of each batch of materials is controllable.
8. The device is capable of both forward and reverse rotation Easy to mix and stir more evenly.
9. Power system
Electric motor: 4-stage motor voltage 380V50HZ

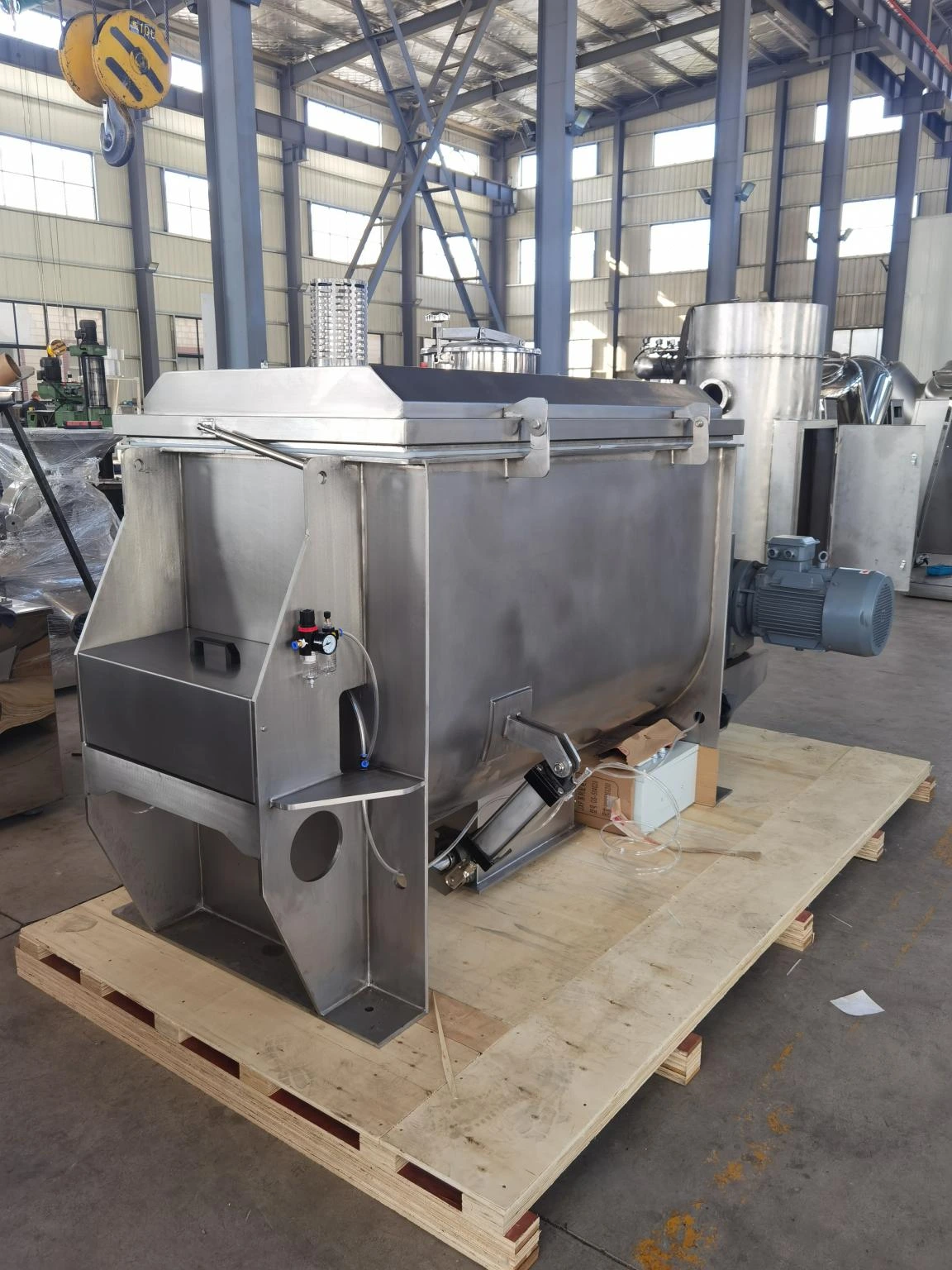

Product Display
Main technical parameters：
name | unit | Model/Unit | quantity | Manufacturer | remarks |
Hybrid motor | set | 11KW | 1 | Large and medium-sized motors | Three phase 380V/50HZ |
Hybrid gearbox | set | K-97 | 1 | Shanghai Sailan | Gear reducer |
Mixing bucket/thickness | set | 5mm | 1 | Zhangpu | 316L stainless steel |
Cover board/thickness | set | 2.0mm | 2 | Zhangpu | 316L stainless steel |
Hybrid spindle | Piece | Φ102×6mm | 1 | Jiangsu | 316L stainless steel |
Mixing paddle | set | 10mm | 1 | Jiangsu | 316L stainless steel |
Discharge method | set | on drawing | 1 | Jiangsu | Pneumatic flap valve |
External dimensions | set | / | 1 | Jiangsu | Length 3200, Width 1200, Height 1600 |
speed | set | 46 revolutions per minute | 1 | Jiangsu | / |
Equipment weight | set | 1760kg | 1 | Jiangsu |
|
throughput | set | 600Kg/time | 1 | Jiangsu | Maximum mixing capacity 600kg per time |
Spindle/Bearing | Piece | 6210 | 2 | Japan | UCP |
Main shaft/seal | Piece | PTFE packing | 2 | Outsourcing | Packing seal+airtight seal |
an electric appliance | set | Supporting facilities | 1 | Outsourcing | chint |
