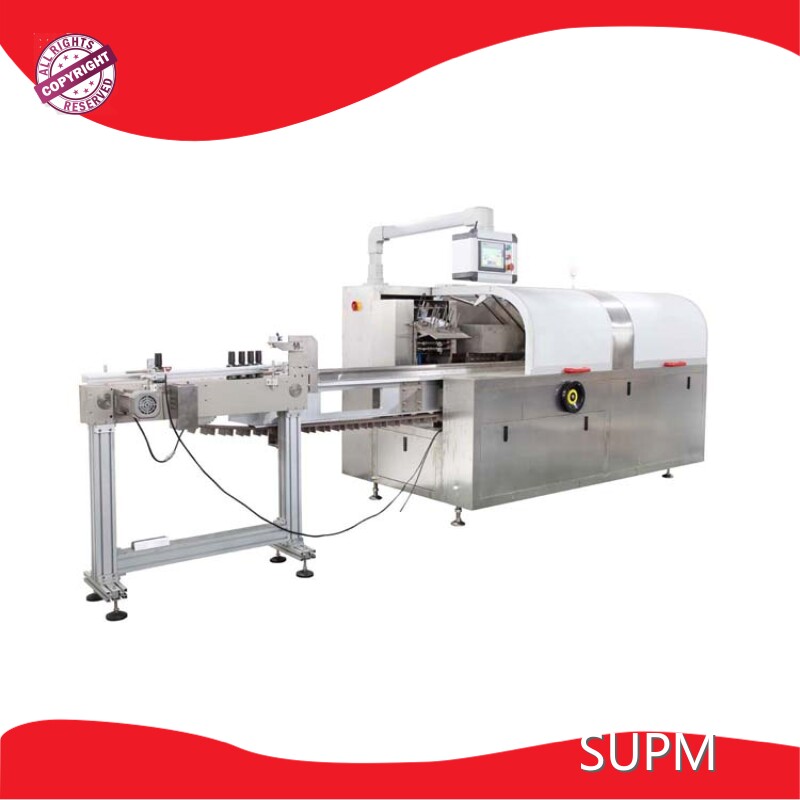

Automatic Cartoner SUPM Brand
High Speed Cartoner Cartoning Machine

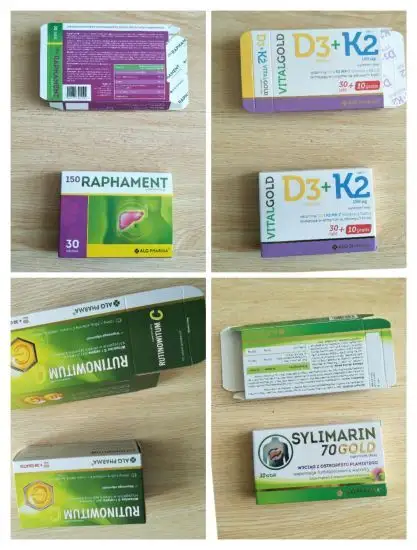

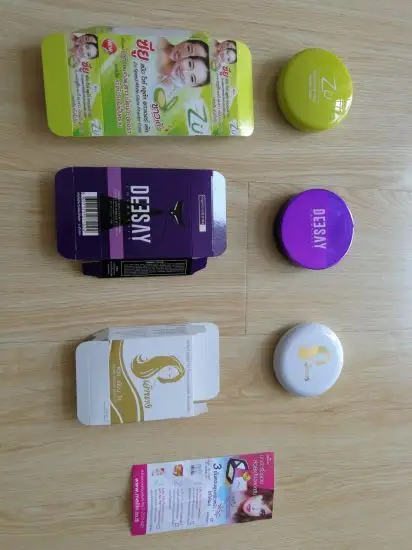

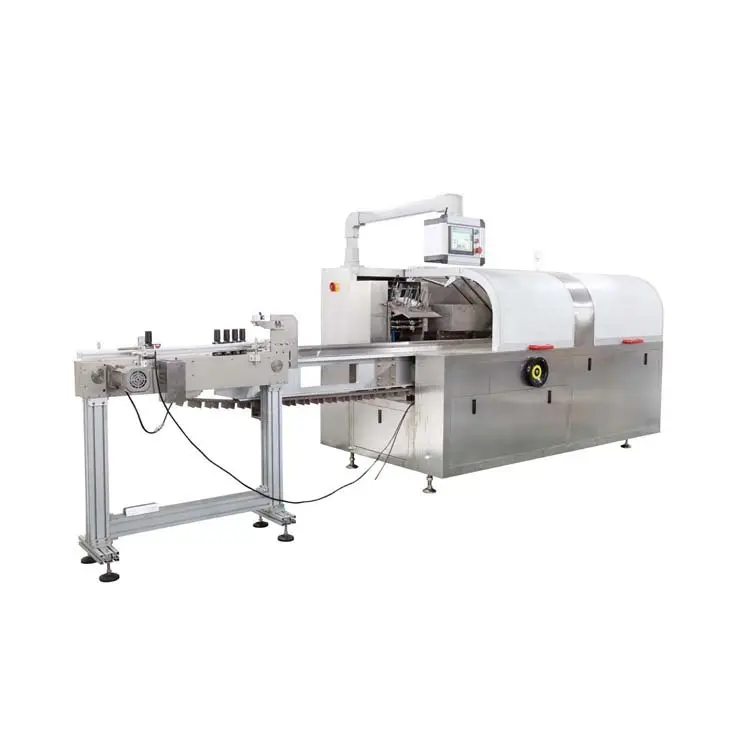

Product description:JDZ-200 Automatic Cartoning Machine is new model developing base on integrated domestic and foreign advance technology. It is high technology product incorporates pneumatic-photo-electro-mechanic.This machine is suitable for pharmaceutical and foods packaging, with blister molding of the capsule, tablet and Al-plastic blister packaging. The whole working process can be divided as follows: Product conveying (one or more pieces every time); Twice pre-opened carton device ensure the carton forming;The leaflet conveying (1-4 folding); Automatic carton forming and conveying; Insert product and leaflet into the carton; Batch number printing; Each end of carton sealing and other complicated process. The machine exterior are made of stainless steel cover hull. The working face was sealed by plexiglass. Machine design in strict accordance with GMP standards. The transmission part adopt the overload protection. The machine is also equipped with emergency stop device and human-machine touch screen to ensure the save of operator.Feature:1 Stop suck leaflet when lack product, stop suck carton when lack leaflet.2 Machine run idle if without product or product not arrive the correct position, machine run again after product supply normally. Machine stop working when insert product incorrectly.;3 Automatic stopped when lack carton, stop running when lack leaflet successively4 An alarm is generated of low compressed air and vacuum negative pressure.5 Back product pushing makes operating more convenient.6 Easy to change different product specification through dial plate handwheel.7 Main transmission adopt overload protection.8 Product feed system(servo motor).9 The sensor, relay, contactor and the pneumatic components are famous international brand.10 Automatic display the cartoning speed, alarm, error and counting.
| Item | Technical parameters | |
| Encasing speed | 200 boxes/min | |
| Box | Quality requirement | 250-350g/m2[Base on carton size] |
| Dimension range(L× W× H) | (70-200)mm× (35-80)mm× (14-50)mm | |
| Leaflet | Quality requirement | 60-70g/m2 |
| Unfolded leaflet specification(L× W) | (80-250)mm× (90-170)mm | |
| Fold range(L× W) | (1-4)Fold | |
| Compressed air | Working pressure | ≥ 0.6mpa |
| Air consumption | 150-200L/min | |
| Power supply | 380V 50HZ | |
| Motor power | 2.2kw | |
| Machine dimension(L× W× H) | 4300mm× 1600mm× 1550mm | |
| Machine weight | 2600kg | |

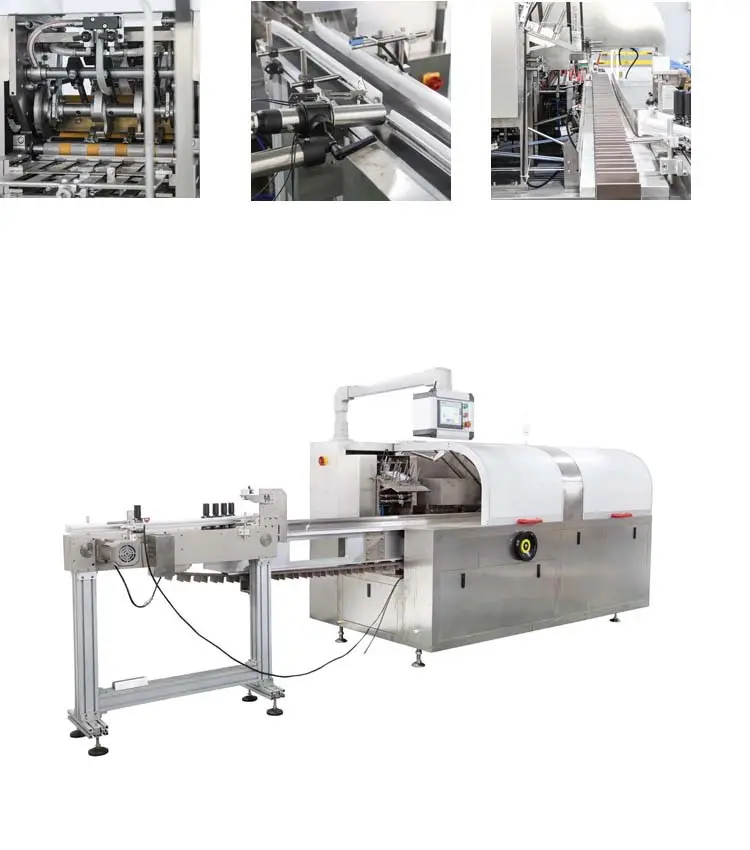

More pictures
Company Advantages
· SUPM automatic cartoner is expertly designed and is produced with environmentally friendly raw materials.
· Owing to automatic cartoner, Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a company which is famous for it.
· By treating employees with mutual respect, SUPM staff always provide the best service for customers.
Company Features
· Owning an important presence in the market, Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a comprehensive enterprise integrating R&D, production, and marketing of automatic cartoner.
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. constantly blazes new trails with its strong technical force.
· Our goal is to maintain consistent standards of business practices, ultimately enabling us to provide the best possible results for our customers globally.
Application of the Product

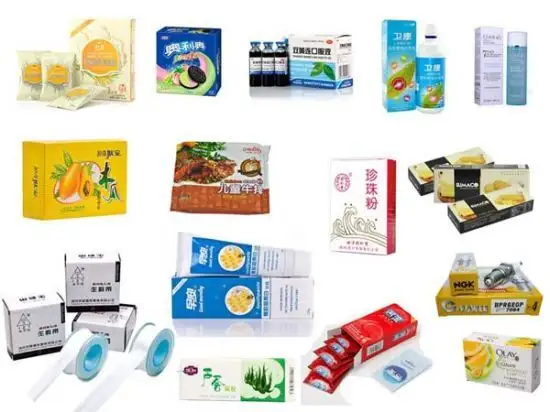

The automatic cartoner developed by our company can be applied in different fields.
SUPM is dedicated to providing professional, efficient and economical solutions for customers, so as to meet customers' needs to the greatest extent.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
