Bosch Pharma Machines by SUPM
Product details of the bosch pharma machines
Quick Overview
Advanced production technology is adopted to the production of SUPM's mechanical equipment. So our product is provided with features of self-adaptation, maintenance-free, self-testing and so forth. Moreover, the mechanical equipment is of easy operation and strong practicability. SUPM bosch pharma machines is made with premium grade materials. The features of bosch pharma machines are refined to meet the diverse needs of customers. SUPM tries and keeps our prices as low as possible.
Product Description
SUPM pays great attention to the details of bosch pharma machines. The following will show you one by one.

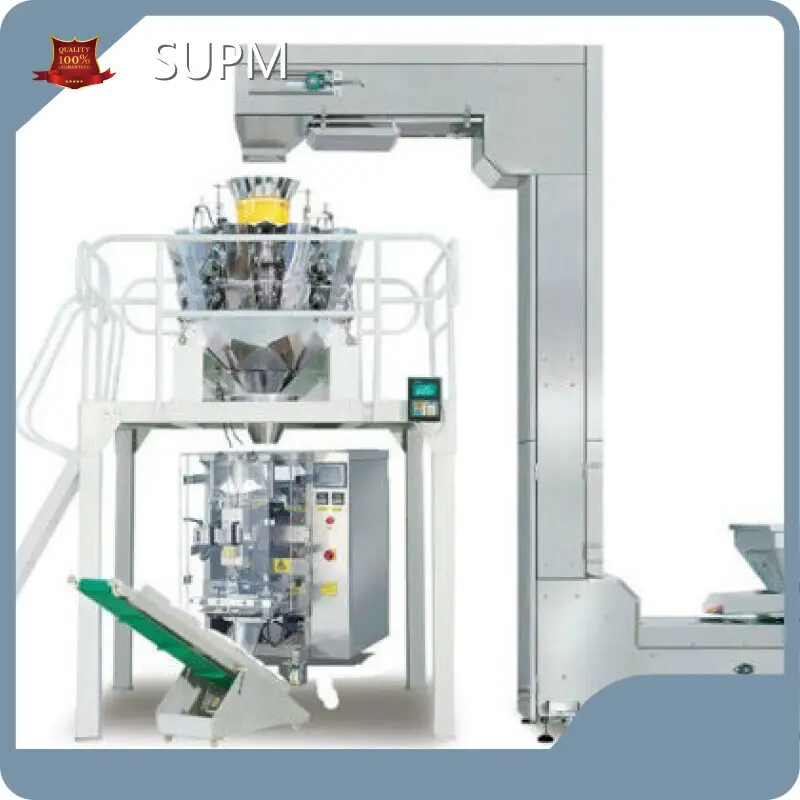

Main feature:1) Import PLC contorl syetem, simple-operating, visual touch screw.2) Servo film feeding system, correct register sealing and cutting positions adopt automatic correction device, high automation.3 Intelligent temperature controller is used, correct temperature control, ensure nice, smooth seal.4) Perfect automatic alarming protective function, reduce the consumption up to the lowest.5) When the machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.6) Type of bag making: Can be coustomerd, like: Pillow bags, punched hanging bags.Application:Suitable for automatic packaging particle materials like all kinds of food, potato chips, shrimp, sweets, chocolate, biscuits, peanuts, nuts, rice, grain, seeds, pistachio, coffee, beans, lima beans, jelly, frozen food, chicken essence, suger, salt, etc.
| Automatic weighting packing machine | DXD-420C | DXD-520C | DXD-620C | |
| Packing speed (s/min) | 15-70bags/min | 15-70bags/min | 15-60bags/min | |
| Bag-making size (mm) | (L)80-300mm(W)80-200mm | (L)80-350mm(W)80-250mm | (L)80-400mm(W)80-280mm | |
| Filling range (g) | 10-2000g | 10-3000g | 50-5000g | |
| Packing meterials | OPP/CPP PET/PE PET-AL/PE etc. | OPP/CPP PET/PE PET-AL/PE etc. | OPP/CPP PET/PE PET-AL/PE etc. | |
| Film width (mm) | 180-420mm | 180-520mm | 180-600mm | |
| Film thickness | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.10mm | |
| Air consumption | 0.36m3/min 0.6Mpa | 0.36m3/min 0.6Mpa | 0.6m3/min 0.6Mpa | |
| Power supply | AC220V/380V 50/60Hz 3.5KW | AC220V/380V 50/60Hz 3.5KW | AC220V/380V 50/60Hz 4.5KW | |
| Machine dimension (mm) | L*W*H=1750*1050*1500-2000 | L*W*H=1750*1350*1650-2000 | L*W*H=2150*1400*1750-2000 | |
| Machine weight (kg) | 500Kg | 650kg | 800kg |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Company Advantages
Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a modern enterprise in the beautiful shang hai. We produce and sell Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca as our main business. SUPM adheres to the business philosophy which is to share the joy and worry with customers and seek common development with society. We also promote our enterprise spirit of 'integrity, innovation and win-win'. Based on honesty, we emphasize development and innovation and hope to cooperate with like-minded people. Together we can achieve a win-win situation and create brilliance. Our company attaches great importance to the talents cultivation. Therefore, we have created a talent team with rich industry experience in technology, management, sales and operation. We always focus on meeting customers' needs and we are dedicated to providing customers with comprehensive and excellent solutions.
Dear customer, if you are interested in SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca and would like to know more details, please feel free to contact us. We will provide professional services!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
