Custom Pharma Packaging Machine SUPM

Inquiry

Company Advantages

· The body frame lightweight design of pharma packaging machine have the extremely vital significance.

· Its reliability is backed by our expert and experienced professionals.

· With trustworthy cooperation partners, SUPM ensures the fast delivery time.

Hot products stick cheese filling and sealing machine for the China Food Packaging Equipment Series

QQ图片20210512115506_副本

Machine dimensions (standard)	10500x1285x1850(mm)
Total Weight	5000Kg
Input voltage	Three-phase 380V
Power	45kw
Power cable cross-sectional area	>6mm⊃2;
frequency	50Hz
Maximum withstand current	50A
Compressed air consumption	When 0.6 Mpa, 120L/min
Working temperature	10~22°C
Cooling water inlet and outlet size	φ16mm（Quick plug）
Air source inlet size	φ12mm（Quick plug）
Cooling water consumption	Temperature 14-18℃, pressure 0.15-0.2Mpa, 280L/H in closed loop
Packaging Materials	PVC/PE, PET/PE, PVDC and other composite sheets Specifications (0.3~0.4)*245max (mm) (or according to mold specifications) The maximum diameter of the film roll is Φ600mm The inner diameter of the film roll tube core is Φ76mm
Filling count per plate	≤15 pcs/plate (depending on filling measurement)
Productivity	≤35 times forming/min
Dosage range	1-120ml/piece
Filling accuracy	≤2%
Double-sided molding depth	≤25mm
Single-sided molding depth	≤12.5mm

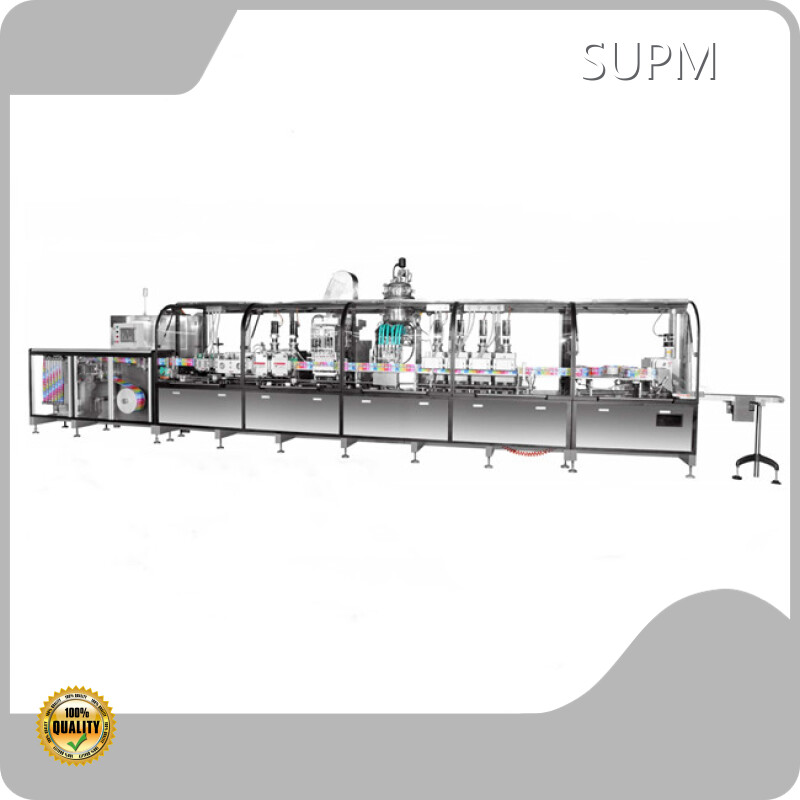

TUB-40N stick cheese filling machine is a liquid and semi-viscous body measured in plastic container packaging units. Using a thermoforming film, the film is folded in half by a film folding device and then formed. If necessary, the equipment can produce flat-bottom bottle type (self-standing bottle type) and special-shaped bottle. UB-40N stick cheese filling machine can complete the process from forming, filling, sealing until the finished product is punched and transported to the outside of the machine.

1. Purpose

This machine is suitable for unit-dose packaging, suitable for packaging medicines, beverages, dairy products, health products, condiments, food, cosmetics and other fluid and semi-fluid products. Its unique structure, complete functions, stable performance, reliable quality, and international advanced level of similar products. It is currently the highest level in this field in China.

2. Features

It has a wide range of applications, such as food, medicine, cosmetics, skin care and health care products, and chemical products. The mold is flexible, easy to replace, intelligent system control, modular design, process innovation, simple operation, minimum loss of packaging materials, and high utilization rate 95%-99%, saving packaging costs. Diversified forms of packaging, not restricted by shape, can produce upright, special-shaped and independent bottle shapes.





Company Features

· We are under strictly management to produce pharma packaging machine with high technology.

· We have a team of high-qualified talents getting involved in the production of pharma packaging machine. We have a team of skilled workers with many years of experience for manufacturing pharma packaging machine.

· Our aim is 'providing customers with value-added pharma packaging machine and services'. Please contact.

Product Details

With the dedication to pursue excellence, SUPM strives for perfection in every detail.

Enterprise Advantages

SUPM has an independent supply team, a professional procurement team, a mission-driven sales team, and a responsible service team.

SUPM is equipped with professional sales and customer service staff. They are able to provide services such as consulting, customization and product selection.

With the tenet of 'making employees happy and providing quality products for the society', our company is committed to becoming a industry head that can lead the development of the industry.

Established in our company has a production history of years and accumulated rich production experience.

Keeping up with the development trend of the Internet era, our company changed the business mode. We actively build offline marketing networks, expand online sales channels and opening official stores on several mainstream e-commerce platforms. Therefore, we gained a rapid growth of sales and the expansion of sales range.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
