Product details of the pharmaceutical manufacturing line

Product Information

SUPM pharmaceutical manufacturing line is designed and fabricated using unmatched quality raw materials and latest technology as per the international quality criterion. The inspection of the product is paid 100% attention. From the materials to the finished products, each step of inspection is strictly conducted and followed. The product enjoys a good reputation among customers and will develop more broad market in the future.

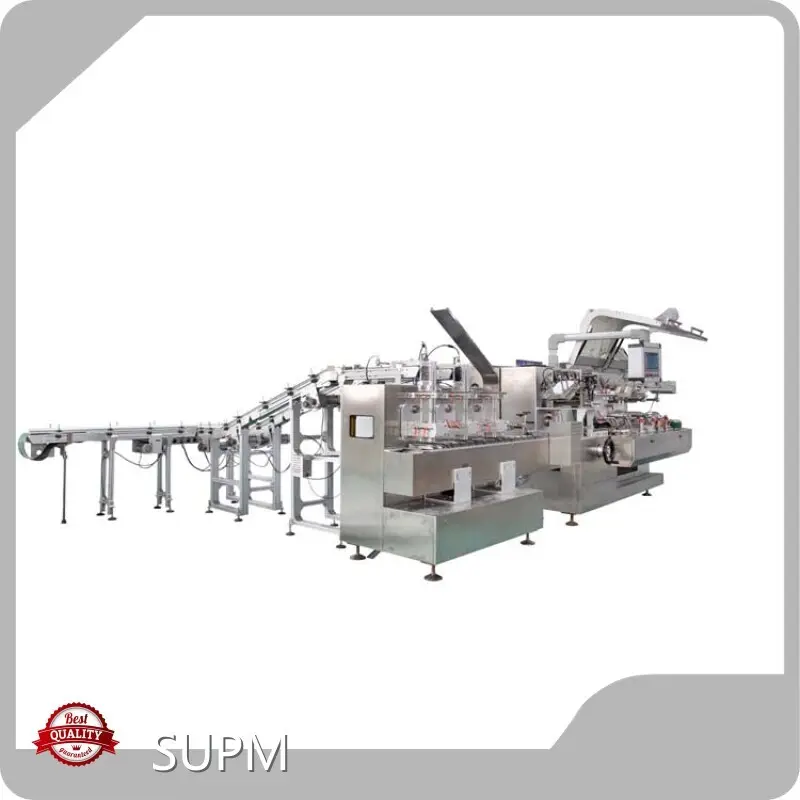

Automatic High Speed Cartoning Machine

260 (19)

Specifications 1. Automatic high speed cartoning machine 2. PLC and touch screen 3. Speed is 200 boxes/min 4. Insert product and leaflet. Instruction High Speed Cartoning Machine is new model which innovation design Base on bringing in foreign advanced technology, also strictly according to pharmaceutical industry "GMP "standard To manufacture. With high efficiency, high performance production capacity, leaflet folding and conveying, carton Opening and forming, posterior pushing structure and related technology all reach Europe and USA standards; Simple design and posterior continuous pushing structure makes operation and maintenance more convenient; Three equal rotation opening carton and under twice pre-forming device to ensure that carton open and form completely This model is automatic high speed continuous cartoning machine which is high performance product incorporates Pneumatic-photo-electro-mechanic. It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line Feature 1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc. 2. Adopt human-machine operation system. 3. Automatically displaying device for trouble, speed and finished products counting. 4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous. 5. No products not suction leaflet, no leaflet not suction carton. 6. Automatic detection and rejection device for lacking blister goods and leaflets. 7. Protecting automatically for overloading. 8. Stable performance, operation is easy.

Item		Technical parameters
Encasing speed		200 boxes/min
Box	Quality requirement	250-350g/M2[Base on carton size]
	Dimension range(L×W×H)	(70-200)mm×(35-80)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/M2
	Unfolded leaflet specification(L×W)	(80-250)mm×(90-170)mm
	Fold range(L×W)	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	150-200L/min
Power supply		380V 50HZ
Motor power		2.2kw
Machine dimension(L×W×H)		4300mm×1600mm×1550mm
Machine weight		2600kg

Components Automatic High Speed Cartoning Machine

Automatic High Speed Cartoning Machine

Our customer

详情页-上海海彼--1定稿_03

$RX2]L7{%NOW0`YXF9~)M{_G$

FAQ

Q1.What's your delivery method?

A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.

Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.

Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.

Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.

Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.

Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
