We are specialized in pharmaceutical machinery and packaging machine for more than 20 years.

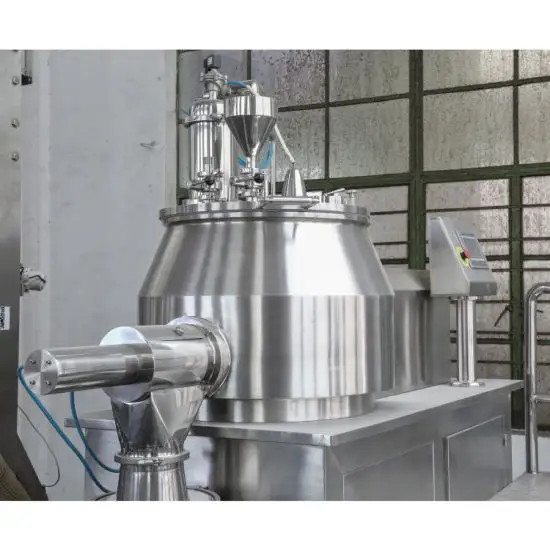

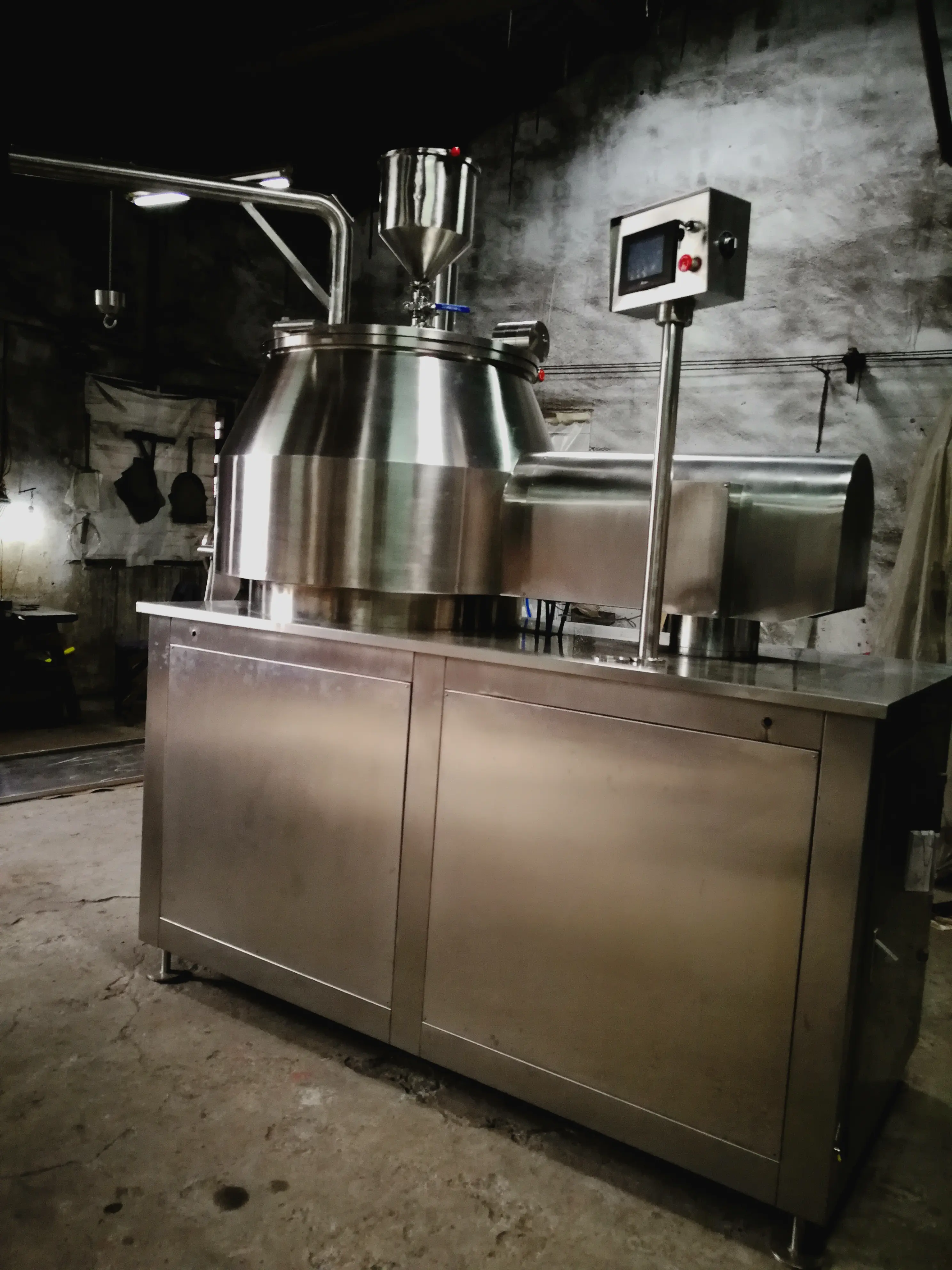

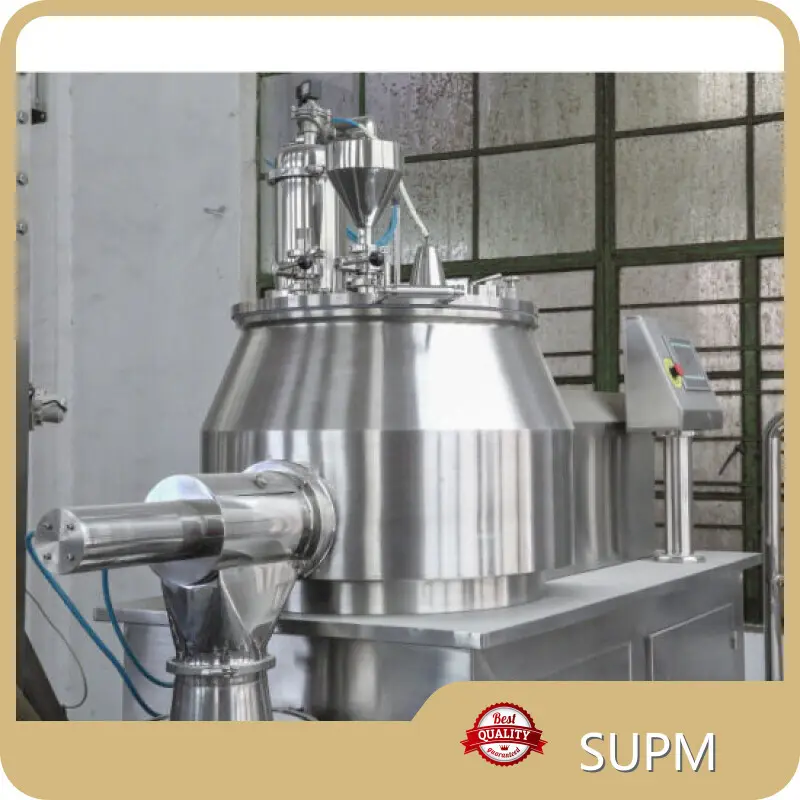

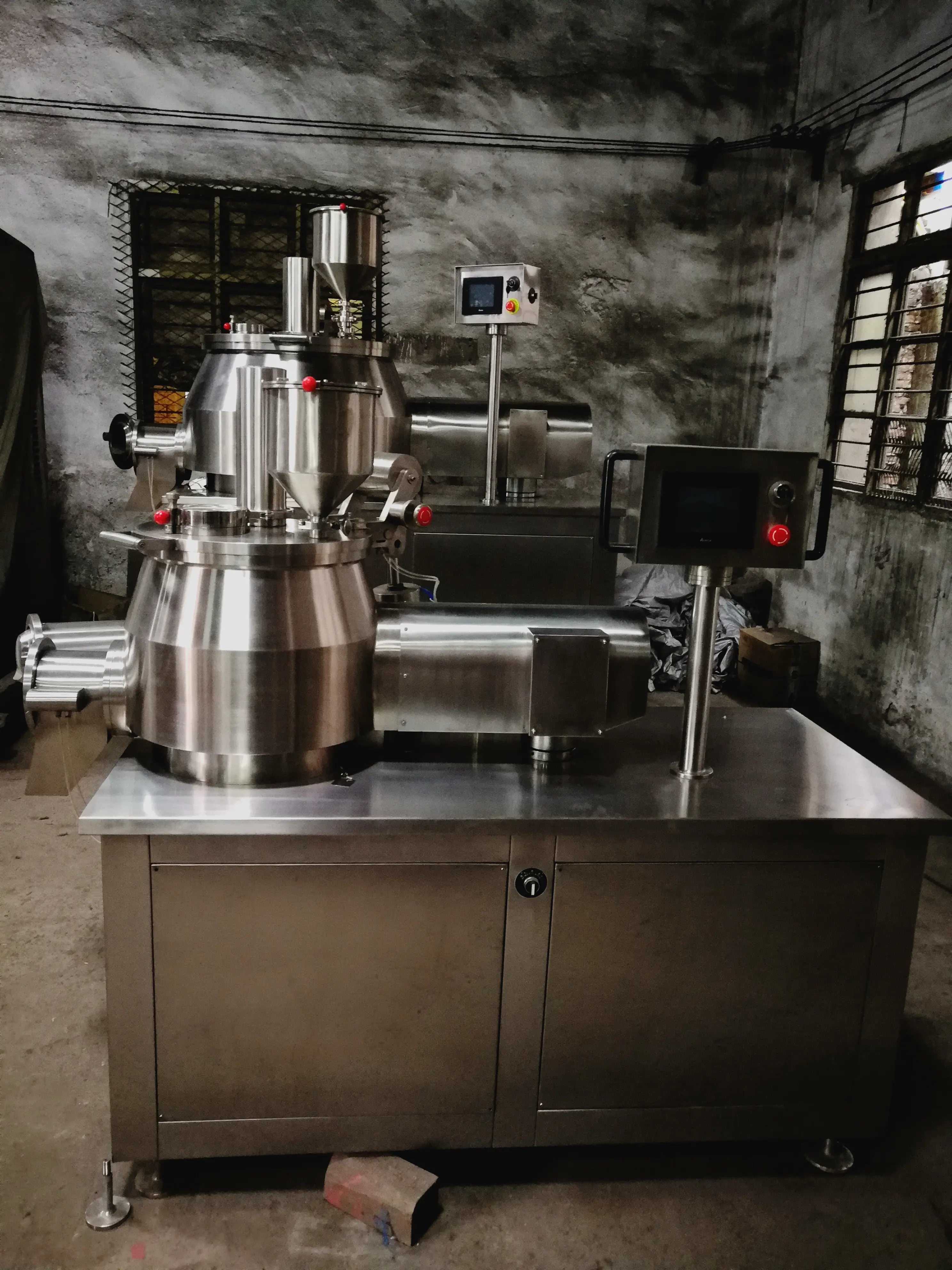

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 1

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 2

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 3

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 4

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 5

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 6

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 7

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM

After-sales Service:

12hour response

Model NO.:

GHL

Inquiry

more products

Solid Dosage Equipment

Liquid Production Line

Packing Line

Send your inquiry

Origin

China

Trademark

SUPM

Name

Wet Granulator

Product details of the pharmaceutical packaging equipment

Product Specification

Origin: China

Trademark: SUPM

Name: Wet Granulator

Product Description

The production of SUPM pharmaceutical packaging equipment is smooth-running and efficient. Long service life absolutely manifests its superior performance. Due to its good characteristics, this product has been widely used in the global market.

No	Item	Unit	Specification
1	Container Volume	L	1000
1	Capacity	Kg/batch	300~400
2	Mixing Power	kw	32/37
3	Cutting Power	KW	9/11
4	Mixing speed	r.p.m	80/120
5	Cutting speed	r.p.m	1500/3000

The GHL series wet mixing granulator is mainly composed of a frame and its accessories, a material cylinder and cylinder head functional components, a stirring blade and its transmission device, a cutting blade and its transmission device, a discharge device, a wet particle granulation system, a spraying device, an electrical control system, a pneumatic control system, and other parts.

The key mechanical devices include the material cylinder and cylinder head functional components, the mixing blade and its transmission device, the granulation knife and its transmission device, and the whole granulation device. The electrical control system is the core control system of this machine.

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 8

Custom Pharmaceutical Packaging Equipment Wet Granulator SUPM 9

working principle

The material enters the material tank through manual feeding or vacuum feeding, and is fluidized by mechanical force under the action of stirring slurry, forming a good motion trajectory in the silo and achieving uniform mixing. After injecting adhesive, the bridge between the material powders is formed into small particles, which gradually grow and form particles that meet the requirements under the mechanical force of the mixing blade.

purpose

The GHL series wet granulation machine, as an important process equipment for solid preparation production in the pharmaceutical industry, achieves mixed granulation of raw materials or software materials. It adopts a PLC automatic control system, and the equipment and process comply with current GMP and national pharmacopoeia requirements.

Packaging & Shipping

1.Nomally shipping steps:

S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

Pre-Sales Service:

* Inquiry and consulting support.

*Quickly reaction.

*Factory inspection available anytime.

After-Sales Service:

*Prompt technical support

*Engineers available to service machinery overseas

*Installation &commissioning,good training for customers.

Our customer

KE1PX$_SO]LLORZU3`DH8UW

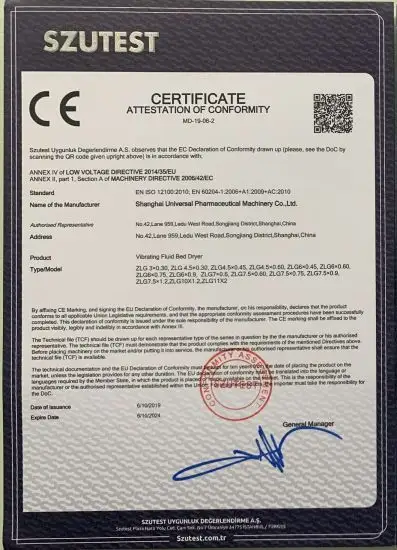

Certifications

[$X~Z{0)[{$PW5F}H666N6M

$RX2]L7{%NOW0`YXF9~)M{_G$

FAQ

Q1.What's your delivery method?

A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.

Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.

Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.

Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.

Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.

Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.

Company Feature

• SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation.
• SUPM was established in We closely follow the development trend as well as adhere to sustainable development in the machinery industry. We are now a professional and powerful manufacturer of machinery.
• SUPM's products are favored by consumers at home and abroad.
• Our company has a high-standard, high-demand, high-efficiency, high-capacity team composed of experienced professionals, which provides a powerful force for to manufacture better products.
• SUPM is located in a position where multi traffic lines join up. Therefore, the superior transportation makes contribution to the efficient delivery of various products.
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca are customizable. Please contact us for more specific information.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
