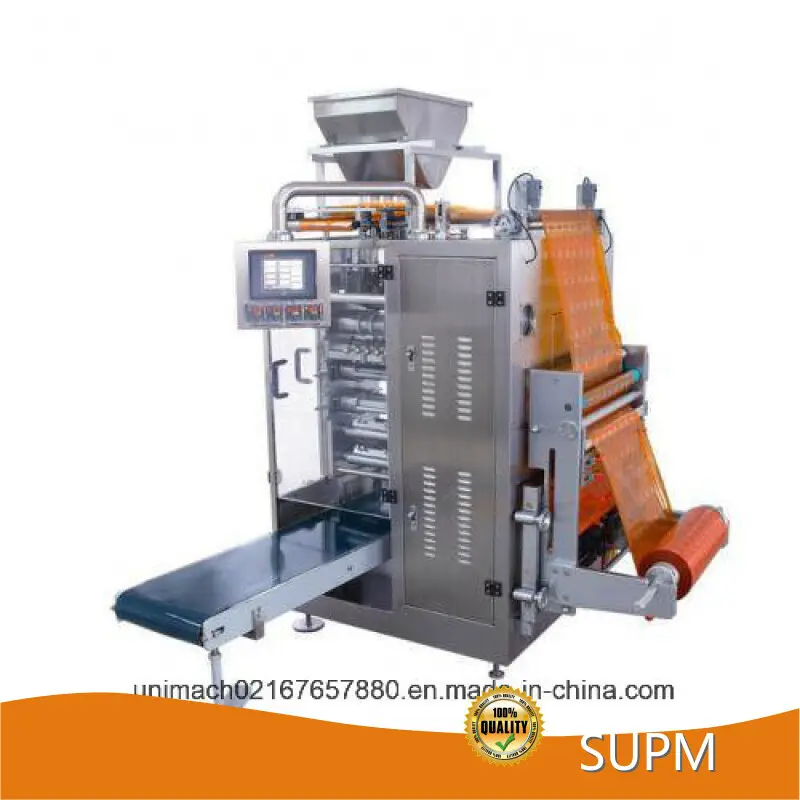

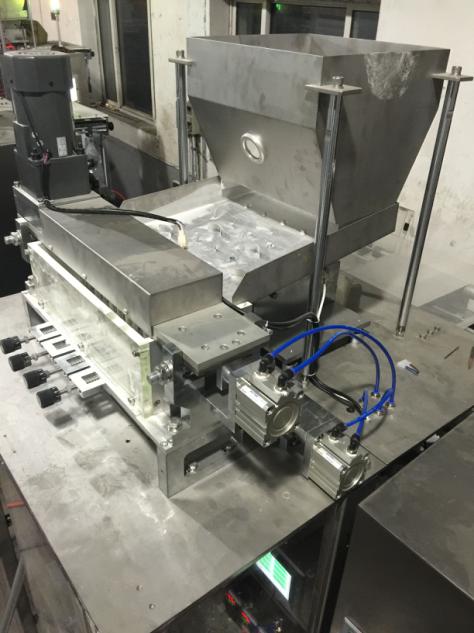

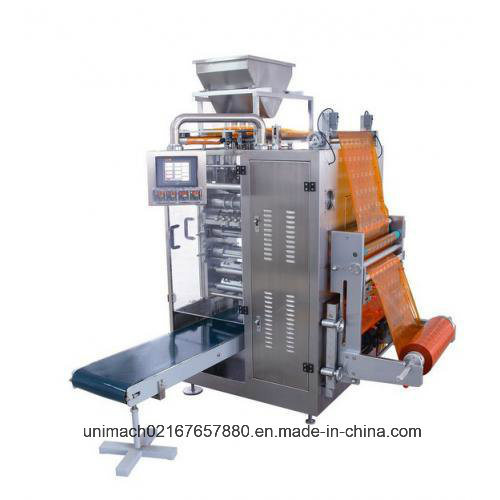

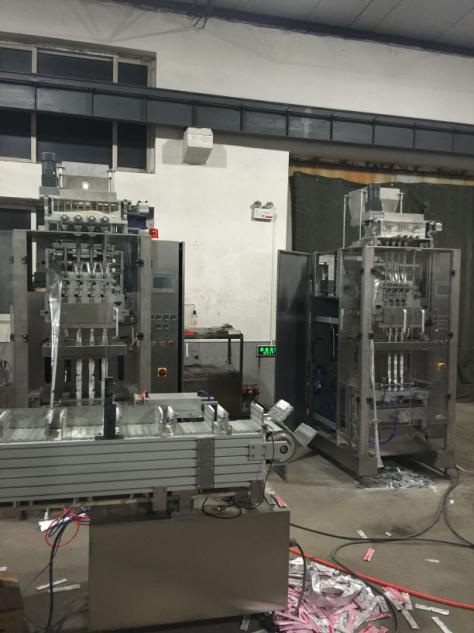

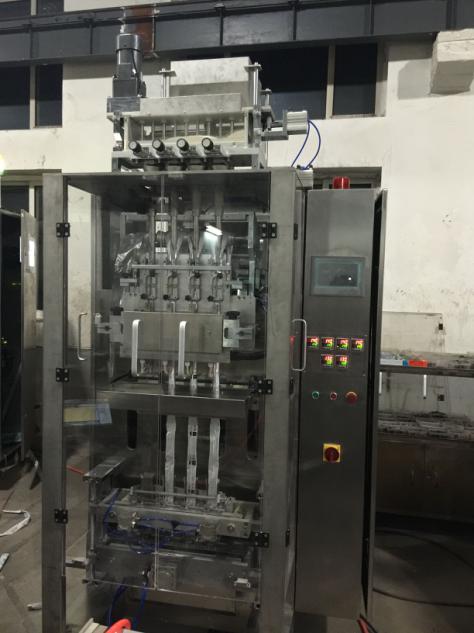

Form Fill Seal Packaging Machine by SUPM
Product details of the form fill seal packaging machine
Product Introduction
SUPM form fill seal packaging machine is manufactured in compliance with the industry standards using premium raw materials. form fill seal packaging machine has many outstanding advantages. In Shanghai Universal Pharmaceutical Machinery Co.,Ltd., process requirements of producing form fill seal packaging machine is very strict.
Four-side Sealing & Multi-line Packing MachineFeatures:1. Advanced performance, high power, low noise, compact structure, Operate steadily, easy to maintain, and has a long life span.2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.3. A high degree of automatic. Machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets.4. High precision whole rolling type heat sealing roller are adopted as sealing mould. 4-side sealing, multi-line sachets form. Because catsup material will easily leak in sealing side, an extra smooth bag shape, delicate and beautiful, packaging with high efficiency.5. Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine interface.6. Accurate in measurement, According to different paste viscosity, specifically designed of reciprocating plunger pump with rotate valve controlling, matched with stroke adjustment air cylinder feeding, each line's dosage can be adjusted easily and accurately.7. This machine can according to customer's request, add variety of feeding device, one machine also can fill variety of liquid material.8. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function...9. Adaptability of the package film. The sealing temperature of machine is with automatic control, and with high control accuracy (± 1C ° ). Suitable for most complex film packing film in home and abroad, as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE and so on.10. Extra function set up, for example, sachet cutting can can choose dotted line knife, flat cutting knife or abnormal shape knife. Printing can can choose embossing(hard batch) or ink wheel printer. And the matching of alarm requirements and so on.Usage:Suitable for packing catsup, thick paste material in the pharmacy(medicine), food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste, Curry sauce, Cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.
| Pouch length | 50~300mm |
| Pouch width | 32~105mm |
| Packing speed | 20~40times/nim(depend on pouch size and material) |
| Measuring range | 5~100ml |
| Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
| Max width of film roll | 500mm |
| Max film roll diameter | Φ420mm |
| Film roll core diameter | Φ75mm |
| Power voltage | 380V50Hz(do as customer's) |
| Power | 12 Kw |
| G.W | 1500kg |
| Package size | 1680x1280x1950mm(L*W*H) |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Company Advantage
• Our company formed an excellent R&D and design team. According to customers' needs, we could quickly design the best solution and provide quality custom services for customers.
• The quality of our products has reached the international first-class standard. Our products have been in great demand at the market, and won wide popularity from consumers.
• SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca feature stable performance, high quality, and easy operation. Besides, they are reasonably-priced and well-designed.
• Our company persists in management philosophy of 'guaranteeing quality and quantity, keeping the consistent goal'. For the customer's sake, we sincerely provide them with the best, most convenient and rapid service.
• Our company has technical cooperation with professional research institutions, and jointly establishes a product R&D team, which encourages us to continuously innovate products and plays an important role in building a company brand.
From time to time, SUPM holds promotion in return to new and old customers. More surprises and more discounts are waiting for you. We look forward to your call!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
