Product details of the automatic cartoning machine

Product Information

The design of automatic cartoning machine is frequently renovate with modern technology. automatic cartoning machine is widely polulor around the world. Shanghai Universal Pharmaceutical Machinery Co.,Ltd. uses scientific manufacturing processes in automatic cartoning machine production process.

SpecificationsThis packing production line is suitable for pillow package bag inserting to carton which automatically link to cartoningmachinePillow Package Cartoning Production Line1. Cartoner machineInstruction:Automatic pillow package cartoning machine production line is self-developed model which combine actual situation of domestic users. It's abutting joint middle transfering product mechanism with separate flexible to scrabble up, without any mechanical drive connection and electrical control to pillow packing machine to achieve crawler linking to cartoning machine.This packing production line is suitable for pillow package bag inserting to carton which automatically link to cartoning machine. Online can automatic finish product feeding (such as blister), detecting, aluminum film packing, rejecting for lack of product, pillow package bag automatic middle transferring and feeding, leaflet folding, carton forming, product inserting, batch number printing, carton flap sealing, waste product rejecting, finished product output, product counting and so on.Features:1. Adapt to feeding speed of pillow packing machine automatically2. Feed product intermittently by servo motor.3. No pillow package, no suck leaflet and carton4. Pillow package automatic /manual change track and export5. PLC automatic control system, speed regulation with frequency conversion6. Touch screen interface operation system7. Machine overload, automatic stopping machine with alarm8. Display fault and count finished products.9. Stable performance, operate easily and understandability.10. Pneumatic components are famous international brandAutomatic Pillow Packing MachineMain Feature:1. Compact structure, stable and advanced performance, easy for operation.2. Double frequency convert motor, and stepless variable speed, and the length of bag can be set on PLC, and cutting will be reaction instant, just one step, and save the time and film.3. PLC control, friendly operate interface, for convenient and rapid to set parameters4. Intelligence software, diagnose and show fault automatically5. Hi-sensitive electric eye, which trace the printed web on film and make the sealing on accurate position.6. Accurate temperature control, which is control the sealing temperature for various of packing film. And the sealing effect is very well.7. Main body is made in stainless steel. Fit to GMP standard.8. Simple transmission system, which is more reliable work and convenient maintenance.9. According to the situation of packaging products, it can be combined with different automatic feeder.

Item		Parameter
Encasing speed		30-100boxes/min
Box	Quality requirement	250-350g/m2[Base on carton size]
	Dimension range(L×W×H)	(70-180)mm×(35-85)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/m2
	Unfolded leaflet specification(L×W)	(80-250)mm×(90-170)mm
	Fold range(L×W)	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Motor Power		0.75kw
Machine dimension(L×W×H)		3100mm×1100mm×1550mm
Machine weight		1400kg

Production capacity	30-230 (package/minute)
Packaging size(two cutters) mm	(60-190)×(30-110)×(5-40)
Packaging size(one cutters) mm	(120-190)×(30-110)×(5-60)
Max width of film	250mm
Power of supply	AC220V/ 50HZ 2.4KW
Weight	700kg
Outline dimensions	4050×650×1550mm

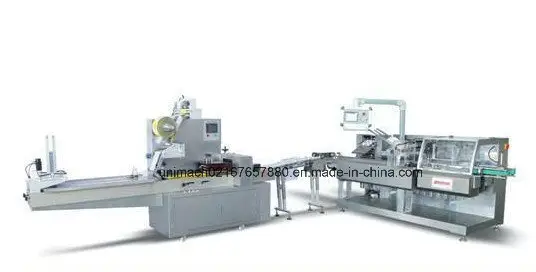

Lx Series Automatic Pillow Package Cartoning Production Line

Packaging & Shipping

1.Nomally shipping steps:

S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

Pre-Sales Service:

* Inquiry and consulting support.

*Quickly reaction.

*Factory inspection available anytime.

After-Sales Service:

*Prompt technical support

*Engineers available to service machinery overseas

*Installation &commissioning,good training for customers.

Our customer

KE1PX$_SO]LLORZU3`DH8UW

Certifications

[$X~Z{0)[{$PW5F}H666N6M

$RX2]L7{%NOW0`YXF9~)M{_G$

FAQ

Q1.What's your delivery method?

A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.

Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.

Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.

Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.

Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.

Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
