Hotblister Packing Machine 12hour Response SUPM Brand

Product details of the blister packing machine

Product Specification

Origin: China

Trademark: SUPM

Name: blister packing machine

Product Information

The selection of blister packing machine's material is more expensive. To ensure product quality, the product is produced under the supervision of our experienced quality assurance team. With tremendous market potential, the product is widely used.

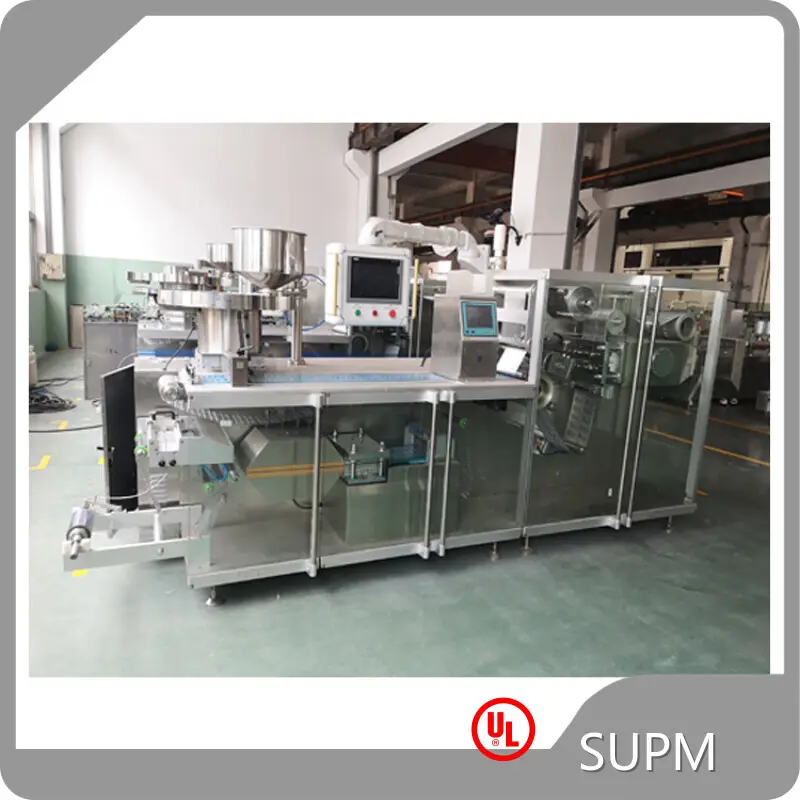

DPH-260 Series High Speed Roller Plate Blister Packaging Machine





Product DescriptionApplications: It is suitable for capsule,tablet,big honey pill,candy,liquid,paste,one injector as well as irregular shape AL-PVC,paper-plastic composite and ALU-ALU sealing packaging in pharmaecutical,healthcare,food, cosmetics industry etc.Technical specifications:

Item	Unit	the main technical parameters
Maximum punching speed	Times/min	150
Maximum forming depth	mm	12
Maximum forming area	mm	180×260（L×W）
PVC (thickness × width)	mm	（0.25-0.35）×260
Aluminum foil PTP (thickness × width)	mm	0.02×260
Outer diameter of PVC coil	mm	<φ300
PTP coil outer diameter	mm	<φ250
PVC PTP core aperture	mm	φ70～76
Dimensions (L×W×H)	mm	DPH-260：3130×1150×1900
Air pressure	Mpa	Air pressure 0.5-0.7Mpa Air consumption: 0.2m⊃3;/min
Cooling water	Mpa	Water pressure: 0.1-0.25Mpa Water consumption: 0.01-0.02m⊃3;/min Circulating cold water tank or tap water
weight	kg	2600
Installed power	kw	16.5kw 380V/ 50Hz (According to customer requirements)

Our customer



Certifications

Company Information

Company Feature

• The mechanical equipment produced by SUPM has complete and diversified types. And it is highly practical, with reliable quality and reasonable price.
• Our company provides customers with quality products and also pays attention to customer service. With our long-term accumulated service experience, we have been highly recognized by our customers and are well received in the industry.
• With a focus on customers, SUPM can develop and produce quality machinery and provide efficient and professional custom services, according to customers' actual needs.
• Our products gain a large market share in China, and they are also exported to Africa, Southeast Asia and other countries and regions.
• SUPM's location enjoys a beautiful environment with traffic convenience, which is good for the outward transportation of Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca.
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca are available in multiple specifications and reliable quality. It is our honor to receive inquiries and orders from new and old customers!
