Hotpharmaceutical Filling Machine Automatic Cheese Stick Packaging Machine SUPM Brand
Product details of the pharmaceutical filling machine
Product Specification
Origin: China
Trademark: SUPM
Name: automatic cheese stick packaging machine
Product Overview
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca have advantages including compact structure, novel design, stable performance, easy operation and so on. The raw material of SUPM pharmaceutical filling machine is tightly controlled from beginning to finish. In addition, the simple design makes pharmaceutical filling machine to be well operated. SUPM boasts for its high quality pharmaceutical filling machine.
Product Description
After being improved greatly, SUPM's pharmaceutical filling machine is more advantageous in the following aspects.

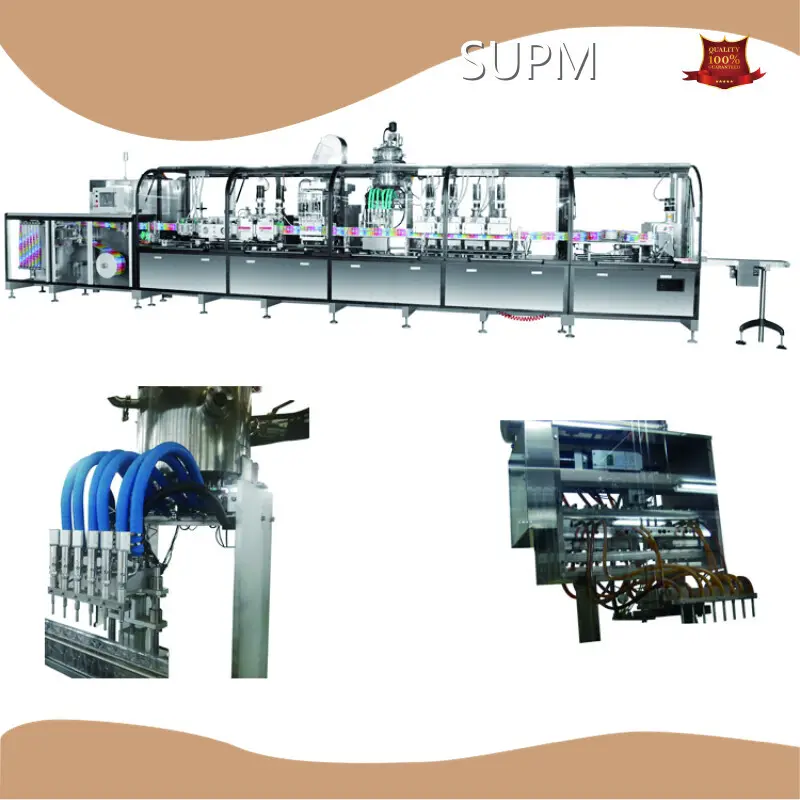

Automatic kids snack cheese stick forming filling sealing machine
UN-40N stick cheese filling machine is a liquid and semi-viscous body measured in plastic container packaging units. Using a thermoforming film, the film is folded in half by a film folding device and then formed. If necessary, the equipment can produce flat-bottom bottle type (self-standing bottle type) and special-shaped bottle. UB-40N stick cheese filling machine can complete the process from forming, filling, sealing until the finished product is punched and transported to the outside of the machine.
1. Purpose
This machine is suitable for unit-dose packaging, suitable for packaging medicines, beverages, dairy products, health products, condiments, food, cosmetics and other fluid and semi-fluid products. Its unique structure, complete functions, stable performance, reliable quality, and international advanced level of similar products. It is currently the highest level in this field in China.
2. Features
It has a wide range of applications, such as food, medicine, cosmetics, skin care and health care products, and chemical products. The mold is flexible, easy to replace, intelligent system control, modular design, process innovation, simple operation, minimum loss of packaging materials, and high utilization rate 95%-99%, saving packaging costs. Diversified forms of packaging, not restricted by shape, can produce upright, special-shaped and independent bottle shapes.
Parameters of stick cheese filling machine:
Machine dimensions (standard) | 10500x1285x1850(mm) |
Total Weight | 5000Kg |
Input voltage | Three-phase 380V |
Power | 45kw |
Power cable cross-sectional area | >6mm⊃2; |
frequency | 50Hz |
Maximum withstand current | 50A |
Compressed air consumption | When 0.6 Mpa, 120L/min |
Working temperature | 10~22°C |
Cooling water inlet and outlet size | φ16mm（Quick plug） |
Air source inlet size | φ12mm（Quick plug） |
Cooling water consumption | Temperature 14-18℃, pressure 0.15-0.2Mpa, 280L/H in closed loop |
Packaging Materials | PVC/PE, PET/PE, PVDC and other composite sheets Specifications (0.3~0.4)*245max (mm) (or according to mold specifications) The maximum diameter of the film roll is Φ600mm The inner diameter of the film roll tube core is Φ76mm |
Filling count per plate | ≤15 pcs/plate (depending on filling measurement) |
Productivity | ≤35 times forming/min |
Dosage range | 1-120ml/piece |
Filling accuracy | ≤2% |
Double-sided molding depth | ≤25mm |
Single-sided molding depth | ≤12.5mm |
Features of stick cheese filling machine
1. The production line is simple and safe, which can reduce the production cost of the product.
2. Modular design, simple structure, short design cycle and quick product update.
3. Reasonable structure, reliable quality, stable operation and long service life.
4. It is widely applicable to packaging materials, PVC/PE, PET/PE, PVC/PVDC/PE and other materials can be molded.
5. The utilization rate of packaging materials is high, usually reaching more than 95%, and some
Company Advantages
Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a reliable company located in shang hai. We always provide customers with high-quality Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca. SUPM is committed to becoming a leading enterprise in the industry. We take 'integrity, tenacity, and unyielding' as the enterprise spirit, and persist in the concept of 'quality is the soul of the enterprise and the foundation of the enterprise's survival'. We have a professional team with experienced team members, and we also introduce advanced concepts and models to guide our team to carry out research work. SUPM has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca have multiple types and reliable quality. Customers from all walks of life are welcome to call us for consultation!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
