Medicine Packaging Machine SUPM Manufacture Double Sided Labeling Machine

Product details of the medicine packaging machine

Product Specification

Name: Double sided labeling machine

Customized: Customized

Power Kw: 4KW

Trademark: SUPM

Product Description

The raw materials of SUPM medicine packaging machine are fully guaranteed by our materials department. This product has high quality and stable functionality. Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has formed a rapid global network.

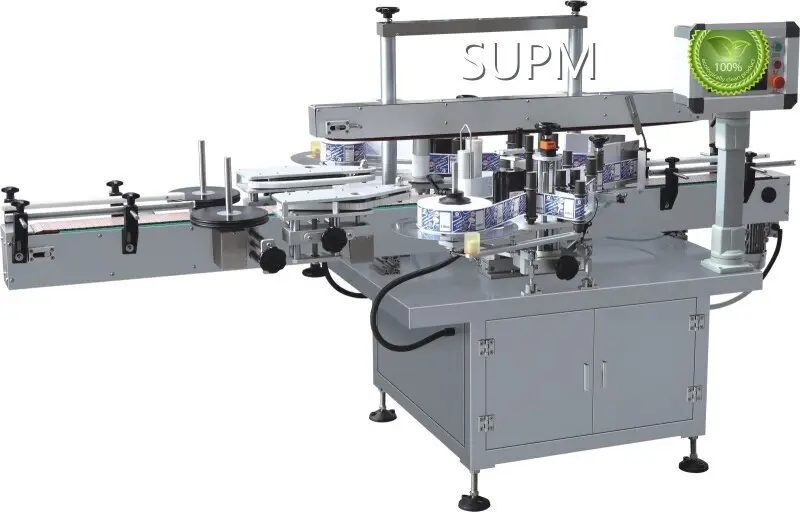

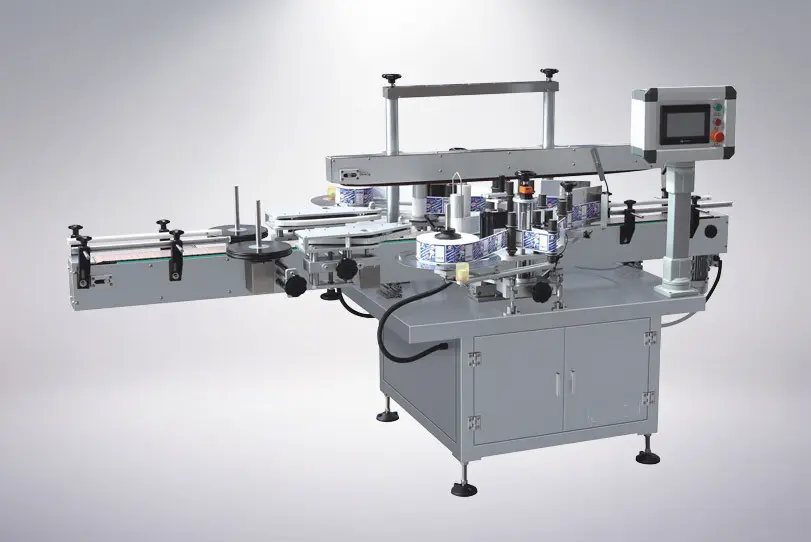

SHL3510 High speed double-sided labeling machine

Performance characteristics

1. This device can attach single or double-sided (short label) round bottles.

2. Power type synchronous tension control supply label, stable and fast supply, ensuring label delivery speed and labeling accuracy.

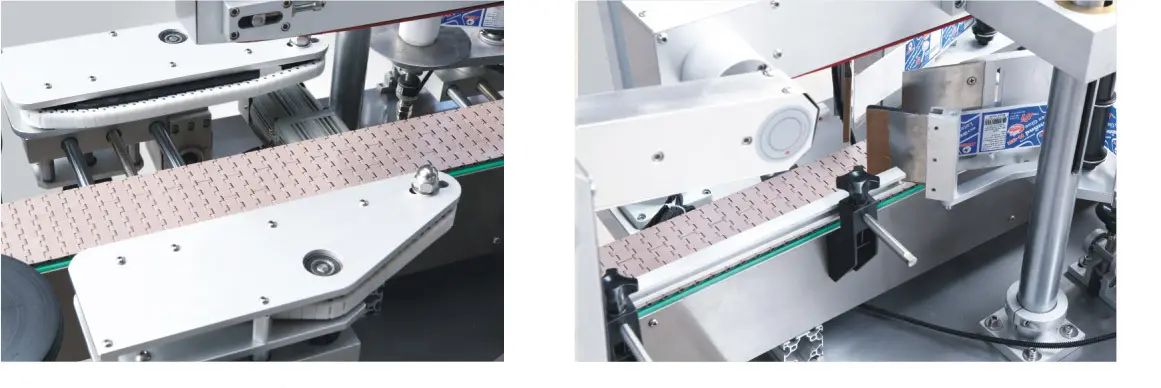

3. The bottle separation mechanism uses synchronous sponge wheels for stepless speed regulation, and the bottle separation distance can be set arbitrarily.

4. The calibration mechanism uses synchronous chains to ensure smooth and accurate calibration.

5. The pressing mechanism uses screw adjustment, with precise action and a wide adjustment range, which can adapt to various specifications of bottles.

6. The label synchronization positioning mechanism has a label positioning error of plus or minus 1mm.

7. The human-machine interface displays and guides troubleshooting for any abnormal situations. The operation is simple and anyone can easily operate and quickly use this device.

8. Multiple emergency stop buttons can be installed at appropriate positions on the production line to ensure safe operation and smooth production.

9. The label stripping distance is automatically calculated by the length, photoelectric and microcomputer coordination, without the need to adjust the photoelectric position. Any label length can be modified on the human-machine interface, making it convenient to use.

10. The reason why the label does not bubble is due to screw compression, the screw compression mechanism on the servo motor conveyor belt, and the servo motor conveyor belt below. The speed of bottle clamping transmission is about 0.5 seconds faster than the label pasting speed, making the label tight and flat. This is the secret that Witte can ensure that the label does not bubble.





Company Advantage

• SUPM established a professional talents team. They have strong R&D capabilities and great technical abilities.
• SUPM has multiple production lines and advanced production equipment. Based on the highly-automated production, we could provide efficient and high-quality custom services.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
• Our machinery is provided with advantages of compact structure, novel design, stable performance and convenient operation and so on.
• We always put our customers first and serve our customers with sincerity. We insist on providing customers with quality services.
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca are of reasonable price and excellent quality. We sincerely invite new and old customers to contact us and discuss business!
