Product details of the pharma packing machine
Product Specification
Origin: China shanghai
Trademark: SUPM

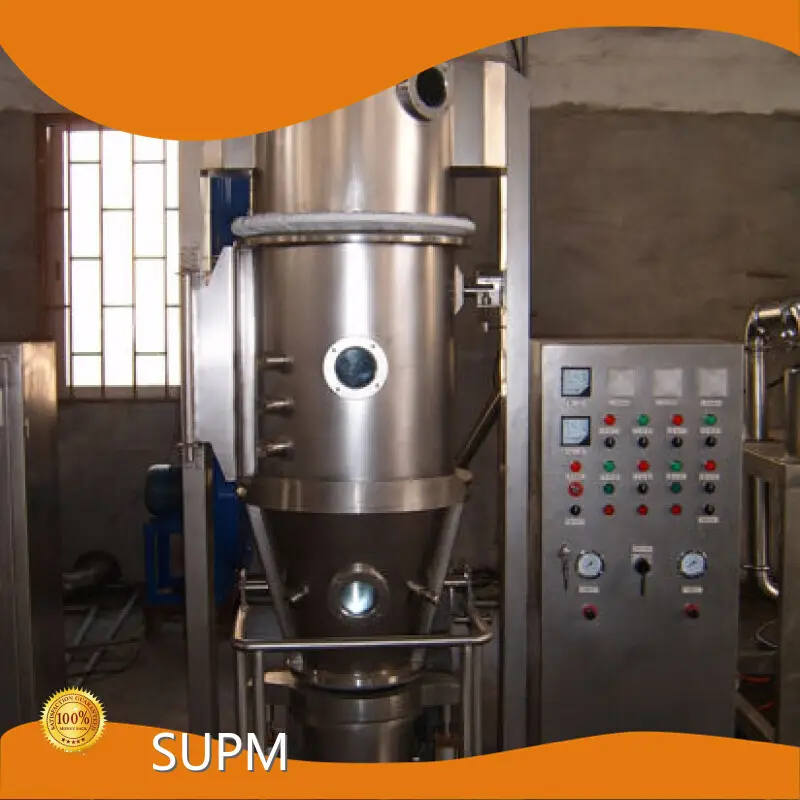

Name: Fluid Bed Dryer Granulator
Quick Detail
SUPM's Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation. SUPM pharma packing machine is manufactured in strict line with the production procedure. Since we always adhere to the 'quality first', the quality of the products is fully guaranteed. Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has the advanced product testing method and equipment.
Product Introduction
Want to know more product information? We will provide you with detailed pictures and detailed content of pharma packing machine in the following section for your reference.
Spray gun(three nozzles)
| Item | Unit | Type | ||||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | ||||
| Container | Volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
| Diameter | MM | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | ||
| Output capacity | Min | KG/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 | |
| Max | KG/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | ||
| Fan | Capacity | m3/H | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 | |
| Pressure | MM H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | ||
| Power | KW | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | ||
| Steam expenditure | KG/H | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | ||
| Compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | ||
| Weight of the main body | KG | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | ||
| Steam pressure | MPA | 0.3-0.6 | ||||||||||
| Temperature | ºC | Adjustable at the range from room temperature to 120ºC | ||||||||||
| Working time | MIN | Decided in accordance with the properties of raw materials | ||||||||||
| Field | % | ≥99 | ||||||||||
| Noise | DB(A) | ≤75Db(When installation, main machine is separated from fan) | ||||||||||
| Size (L×W×H) | M | 1.0×0.6 ×2.1 |
1.2×0.7 ×2.3 |
1.25×0.9 ×2.5 |
1.6×1.1 ×2.5 |
1.85×1.4 ×3 |
2.2×1.65 ×3.3 |
2.34×1.7 ×3.8 |
2.8×2.0 ×4.0 |
3×2.25 ×4.4 |
||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Company Advantages
Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is a company specializing in the production and processing of Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca. The phenomenon of product homogenization is serious in the machinery industry. Therefore, SUPM strives to make progress and seek development and innovation. And we established the brand called SUPM, sticking to the development route of product differentiation. Our company will try our best to meet the needs of new and old customers and provide excellent services for them. In addition to the rich experience in machinery manufacturing, SUPM can effectively consider the needs of customers to design solutions that satisfy customers. And we provide customers with professional and efficient custom services.
Welcome to visit SUPM! If you have any questions or suggestions on Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca, please contact us directly. We will serve you wholeheartedly!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
