Pharmaceutical Packaging Equipment 12hour Response by SUPM
Company Advantages
· The R&D of SUPM pharmaceutical packaging equipment is put emphasis on technical innovation.
· Its quality is guaranteed by a team of people following the relative certificates.
· This product has already occupied a relative market share for its huge economic effectiveness.

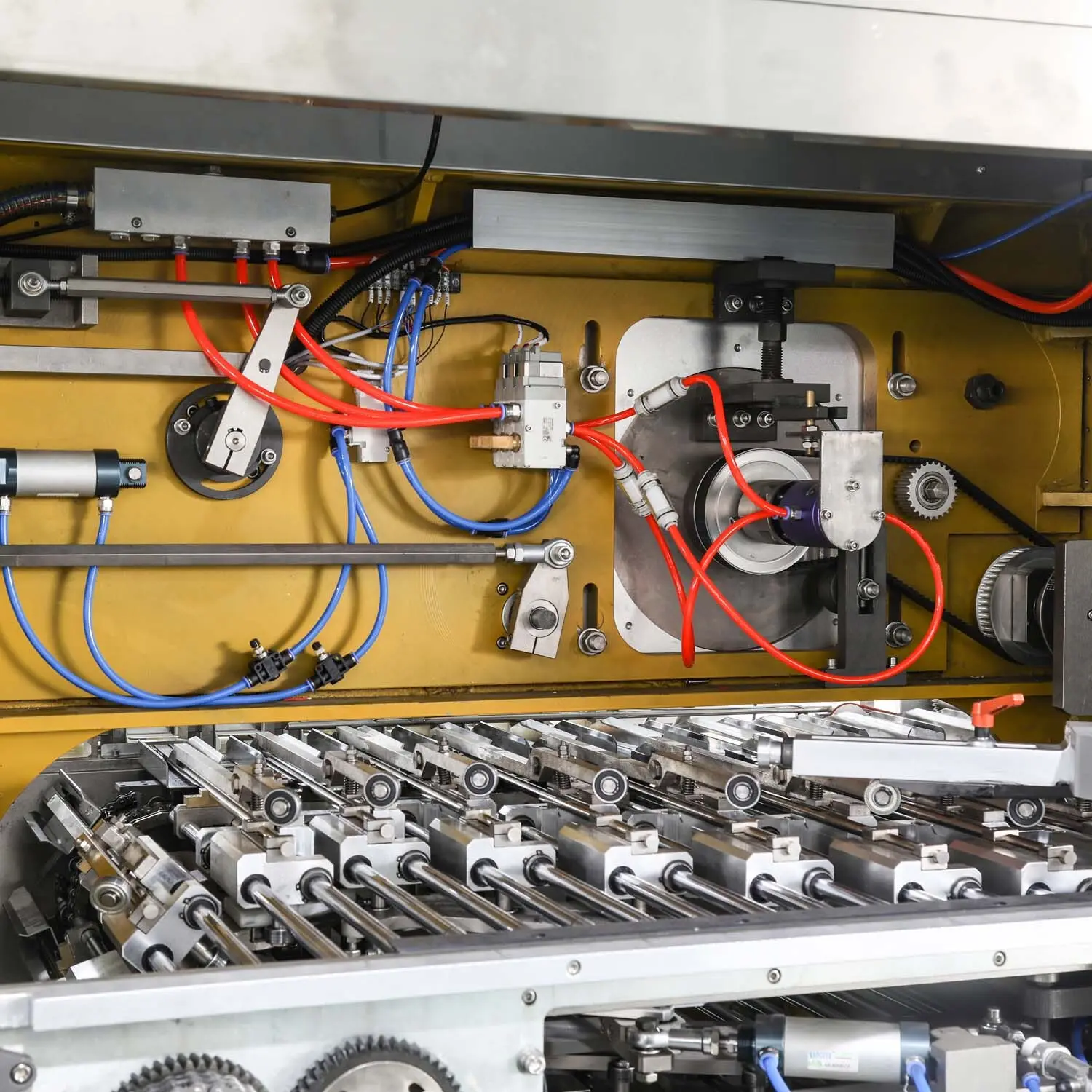

Jdz Automatic Horizontal Cartoning Machine
Specifications1. Automatic Cartoning machine with hotmelt melter2. PLC and touch screen3. Speed is 100boxes/min4. Insert leaflet.InstructionAutomatic cartoning machine is suitable for blister cartoning, bottle, pouchs andInjection, medicine, cosmetis, condom. Food., tube, ointment, wrapped products. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.Feature1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.2. Adopt human-machine operation system.3. Automatically displaying device for trouble, speed and finished products counting.4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.5. No products not suction leaflet, no leaflet not suction carton.6. Automatic detection and rejection device for lacking blister goods and leaflets.7. Protecting automatically for overloading.8. Stable performance, operation is easy.
| Main technical parameters | ||
| Encasing speed | 30-100 boxes/min | |
| Box | Quality requirement | 250-350g/m 2 |
| Dimension rangeL×W×H | (70-180)mm×(35-85)mm×(14-50)mm | |
| Quality requirement | 60-70g/m 2 | |
| Leaflet | Unfolded leaflet specificationL×W | (80-250)mm×(90-170)mm |
| Fold range | (1-4) fold | |
| Compressed air | Working pressure | 0.6mpa |
| Air consumption | 120-160L/min | |
| Power | 220V/50Hz | |
| Motor power | 0.75kw | |
| Machine dimension(L×W×H) | 3100mm×1100mm×1550mm | |
| Machine weight | 1400kg | |
More pictures
Company Features
· Shanghai Universal Pharmaceutical Machinery Co.,Ltd. is one of point key enterprises in Chinese profession's pharmaceutical packaging equipment industry.
· We have adapted to the demands of a growing and rapidly changing industry of pharmaceutical packaging equipment. We now boast a large sophisticated facility, the highest quality standards in the industry and a dynamic research and development team.
· Making pharmaceutical packaging equipment available everywhere is Shanghai Universal Pharmaceutical Machinery Co.,Ltd.' vision. Get info!
Application of the Product
pharmaceutical packaging equipment is one of the main products of SUPM. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers.
Guided by the actual needs of customers, SUPM provides comprehensive, perfect and quality solutions based on the benefit of customers.
Product Comparison
SUPM's pharmaceutical packaging equipment has better performances, as shown below.
Enterprise Advantages
Our company has a dedicated, diligent and stable senior management team, as well as a large number of core professional and technical personnel with strong execution and excellent technology. All this makes favorable conditions for our development.
Based on customer demand, SUPM is devoted to creating a convenient, high-quality, and professional service model.
Our company insists on the business philosophy of 'law-abiding and sustainable management' and the quality policy of 'pursuit of perfection'. We are committed to providing customers with the highest quality products.
Founded in SUPM always adheres to the spirit to be focused and persistent during years. We obtain a leap-forward development in business scale.
SUPM not only sells Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca in the domestic market, but also exports them to many overseas countries and regions.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
