Pharmaceutical Packaging Line High Rapid Shear Mixer Granulator - - SUPM
Product details of the pharmaceutical packaging line
Product Specification
Origin: China
Trademark: SUPM

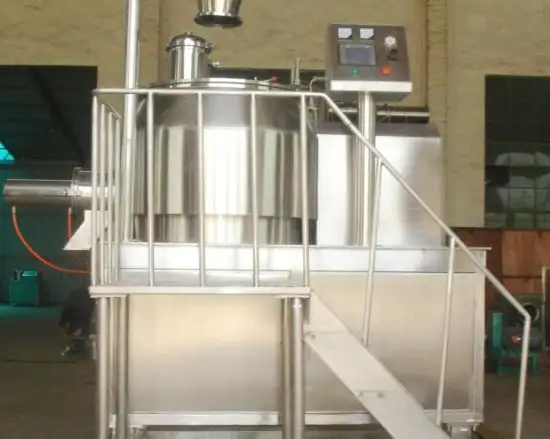

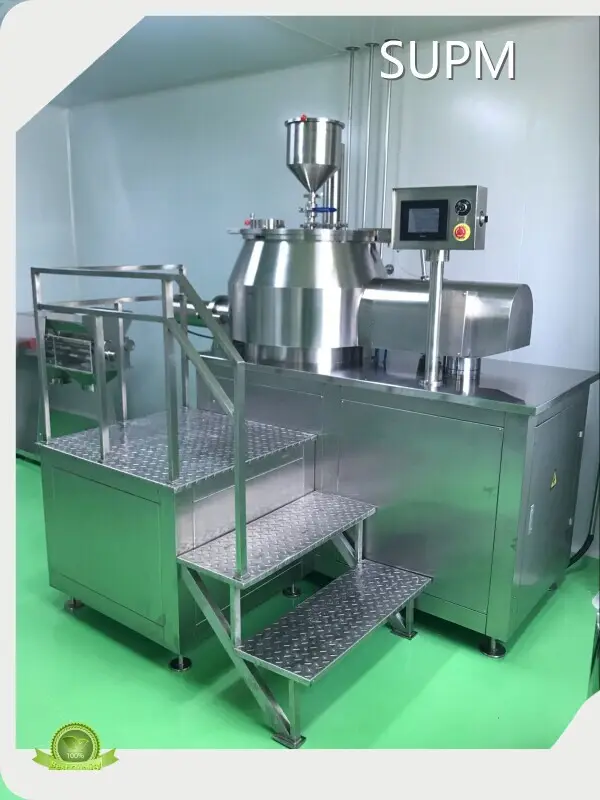

Name: High Rapid Shear Mixer Granulator
Product Description
The production of SUPM pharmaceutical packaging line follows the the principle of green environmental protection. The product has acquired numerous certifications and thus can meet the requirements of customers. pharmaceutical packaging line is a highly marketable commodity with high quality.
| Technical specifications | |
| Total capacity | 400L |
| Working capacity | 100-280L |
| Material groove max. lnside diameter |
Φ988mm |
| Material feeding capacity | 50-140kg |
| Stirring paddle rotary speed | 20-200r.p.m |
| Cutting knife rotary speed | 50-3000r.p.m |
| Length | 2500mm |
| Total Height | 2320mm |
| Height of outlet | 1000mm |
| Width | 2050mm |
| Weight | 1500kg |
| Standard configuration list for 400L rapid mixer granulator | |||
| No. | Name and specs | Origin | Qty |
| 1 | Stirring motor Power:22kw | Wannan | 1 set |
| 2 | Granulating motor Power:7.5kw | Wannan | 1 set |
| 3 | inverter (Vector V2, three phase) Power: 22KW | JAPAN YASKAWA | 1 set |
| 4 | inverter (Vector, three phase) Power: 7.5KW |
JAPAN YASKAWA | 1 set |
| 5 | Stir mixing paddle bearing | NSK (Japan) | 3 sets |
| 6 | Granulating knife bearing | USA | 2 sets |
| 7 | Pneumatic components | AirTAC (Taiwan) | 2 sets |
| 8 | Sealing gasket for bowl cover | Shanghai | 1 set |
| 9 | Stirring paddle(36°, Z-type) | SUS 304 or (SUS316L option) | 1 set |
| 10 | Granulating knife(chopper) | SUS 304 or (SUS316L option) | 6 sets |
| 11 | Sealing gasket | Caisheng (Taiwan) | 4 sets |
| 12 | PLC | German Siemens | 1 set |
| 13 | Touch screen | DELTA (Taiwan) | 1 set |
| 14 | Switch power supply | Mingwei | 1 set |
| 15 | Outside stainless steel plate (1mm, 1.5mm, 2mm) | SUS304 (Zhangjiagang) | 1 set |
| 16 | Material contact part | SUS304,SUS316L(Kunshan) as option |
|
| 17 | Operating platform | SUS 304 | |
| 18 | Cleaning spray nozzle | SUS304 (SUS316L option) | 1 set |
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
