Product details of the blistering machine in pharmaceutical industry

Product Specification

Origin: China

Trademark: SUPM

Name: Fluid bed granulator

Product Description

SUPM blistering machine in pharmaceutical industry adopts the highest standard for the selection of raw materials. The strict quality control of this product is the basis to ensure the quality. Shanghai Universal Pharmaceutical Machinery Co.,Ltd. provides after sales support and services to customers worldwide.

1. The name and type of the equipment.

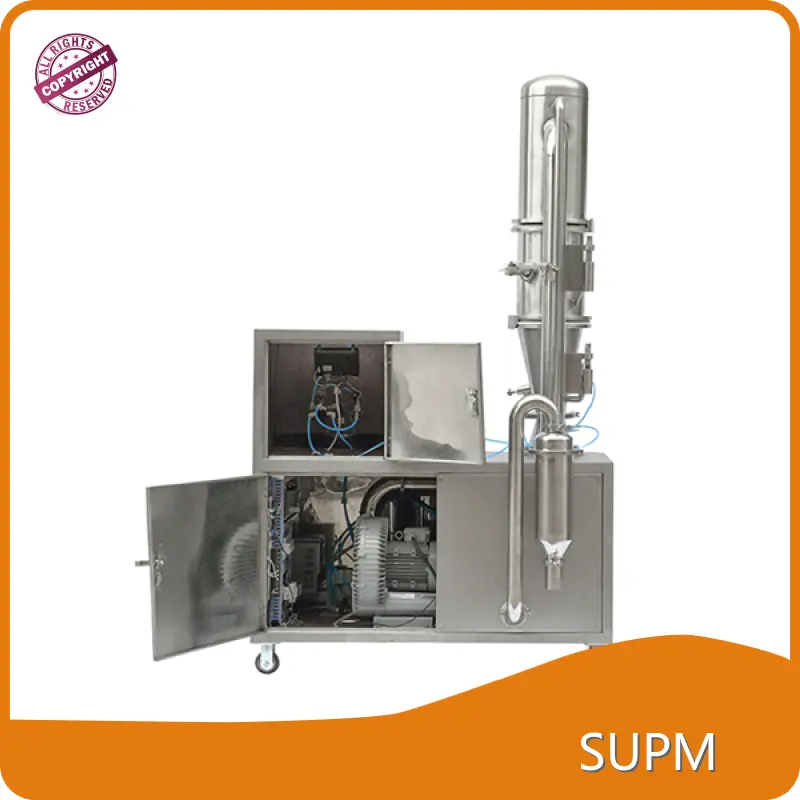

FLP-1.5 Fluid-Bed Granulator/Coater

JG4A6493

JG4A6487

JG4A6486

JG4A6498

JG4A6494

2. General of applications

FLP Fluid-bed Granulator/Coater is multi-function equipment integrated spray drying-granulating-fluid coating-drying in one body.The machine combined various process operations.Particularly it is suitable for granulating, and coating of varieties in pharmaceutical industry,foodstuff industry and chemical industry,etc.

Features of equipment

★ Multi-function such as granulating, coating, drying in one machine.

★ Powder material granulating.

★ Powder material coating.

★ Chinese medicine spray drying, granulating and coating.

★ Make 10-30 meshes big granule.

★ Film coating of Powder, granules and pellets, enteric release, slow and control release coating.

★ Taste masking, odor, moisture-proof, anti-oxidation, prevent water, heat insulation, coloration and separation coating

★ Powder, granule, pellet agglomerate material drying

3. The main technical characteristics.

Model		FLP-1.5
Item
Capacity	Granulating	1.5
(Kg/batch)	Coating	0.75
Material volume	Granulating	5
(L)	Coating	3.5
Liquid applicable scope		<1.3
(g/cm3)
Material yeild （%）		≥99
Finished product moisture content（%）		Most can reach up to 0.5
diameter （mm）		Ф300
Power of fan(Kw)		2.2
Electrical heater (Kw )		3
Pressure of compressed air（Mpa）		0.4-0.6
Consumption of compressed air（m3/min）		0.6
Working temperature （℃）		Can adjust among
		normal temperature-100 ℃
Nolise （db）		Fan separate deal with ≤75

4. The basic options which are included into the complete set.

Name			Material	Specification	Brand
Inlet air system		Premary filter	Stainless steel	G4	Haibi
		Middle filter	Non-woven cotton	F8	Haibi
		Endure High temperature HEPA	Filter paper	H13	China
		Endure High temperature HEPA	Filter paper	200℃	China
		Electrical Heater	Stainless steel	3kw	China
		Heat cabinet	Stainless steel	δ=1.5/2	Haibi
		Inlet air temperature detector	SS304	PT100	China
		Inlet air pipe	SS304	δ=1.5mm	Haibi
Bottom chamber		Bottom chamber	SS304	δ=3mm	Haibi
		Drainage device	SS304	Form a complete set	Haibi
		Air sealing	Silicon rubber	Form a complete set	China
Top cylinder				SU63×100FB
Top spray granulating bed		granulating	SS304 (SS316L as contact material)	δ=3mm	Haibi
		Container	SS304 (SS316L as contact material)	δ=3mm	Haibi
		Inspection window	armoured glass	Form a complete set	China
		Sampler	SS304 (SS316L as contact material)	Groupware	Haibi
		Sieve screen	SS316L	Groupware	Haibi
Bottom spray fluid bed		Coating container	SS304 (SS316L as contact material)	δ=3mm	Haibi
		Bottom spray gun	SS304	Φ1	China
		Inspection window	armoured glass	Form a complete set	China
		Sampler	SS304(SS316L as contact material)	Groupware	Haibi
		Air distribute plate	SS316L	Groupware	Haibi
		Coating guide cylinder and adjust	SS304	Groupware	Haibi
Middle chamber		Chamber	SS304 (SS316L as contact material)	δ=3mm	Haibi
		Inspection window	armoured glass	Φ60	China
		Top spray gun install seat	SS304	Form a complete set	China
		Top spray gun	SS304	Φ1	China
		Light		light	Haibi
Top chamber		Chamber	SS304	δ=3mm	Haibi
		Chamber	SS304	Φ300	Haibi
		Shaking air cylinder	Air TAC	SU32×100-FA	Taiwan
		Exhaust temperature probe	SS304	PT100	China
		cloth bag frame	SS304	Group war	Haibi
		Cloth bag filter	CCP bag anti static	Form a compelete set	Haibi
Air exhaust system		air exhaust pipe	SS304	δ=1.5mm	Haibi
		Exhaust air temperature detector		PT100	China
		Flap air cylinder		SU32×100	China
		Exhaust fan		2.2KW	China
		Inverter		2.2KW	China
Spray system	Peristaltic pump			100mm/1515	China
Spray system	Peristaltic pump			Single pipe	China
Electrical control system		control cabinet			Haibi
		Eletrical component		Siemens	Germany
		Pneumatic part		Airtac	Taiwan
		PLC		Siemens	Germany
		touch screen		Kinco 7″	China
Alarm		Inverter wrong alarms
		Termperature wrong alarms
		Compressed air low/high pressure alarms

5. Easy damaged part：

Item	specification	Number	Place of production
Silicon sealing	T Model	10m	China
Pressure tube	φ10×1.5	20m	China

6. Documentation:

1)We will finish test certificates for raw material like for S.S.304.

2) Also we will submit test certificates for all bought out items like motor and gear box.

IQ, OQ documentation will be given as per standard format suggested by your company.

3) Two copies of operational manual in English language will be given at the time of dispatch of machine.

4) All our machines guaranteed for trouble free performance for a period of 24 months from commissioning.

7. Safety features:

This machine is set up with special emergency stop, can stop the operating machine with one button.

The machines can’t be started without safe earthing.

8. Delivery data and service after sell

1) PAYMENT TERMS:

T/T: 30% in advance and 70% before shipping

2) DELIVERY DATE:

Within 60 days after advanced payment

3) SERVICE AFTER SELL:

Installation and service after sell for free for one year, and with spare parts for two years.

SAT: Air ticket from china to Client’s and Client’s to China will be paid by Buyer.

Also the buyer should supply our engineer’s room and food!

4) COMMISSIONING-START UP:

At actual to be borne by customer. On the start up of the equipments from this contract Haibi’s engineer will be present at the buyer’s company

5) VALIDITY:

30 days from the date of quotation.

6) FAT

We accept the free of FAT for client.

Packaging & Shipping

1.Nomally shipping steps:

S45PNZ%`OL`M6O8H}V(SDJ

2.Our packing and shipping:

(4[KDGL_NF%E6%2]D`4JYP

Our Services

Pre-Sales Service:

* Inquiry and consulting support.

*Quickly reaction.

*Factory inspection available anytime.

After-Sales Service:

*Prompt technical support

*Engineers available to service machinery overseas

*Installation &commissioning,good training for customers.

Our customer

KE1PX$_SO]LLORZU3`DH8UW

Certifications

[$X~Z{0)[{$PW5F}H666N6M

$RX2]L7{%NOW0`YXF9~)M{_G$

FAQ

Q1.What's your delivery method?

A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.

Q2.What products can you provide?

A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.

Q3. What's the payment terms?

A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.

Q4.How do you ensure your product quality?

A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.

Q5:Does the machine power voltage meet buyers' factory power source?

A5: We can do it as your request.

Q6: Is it difficult to install the machine ?

A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get videos and instructions about installation of machine from us.
