Product details of the pharmaceutical line
Product Specification
Origin: China shanghai
Trademark: SUPM

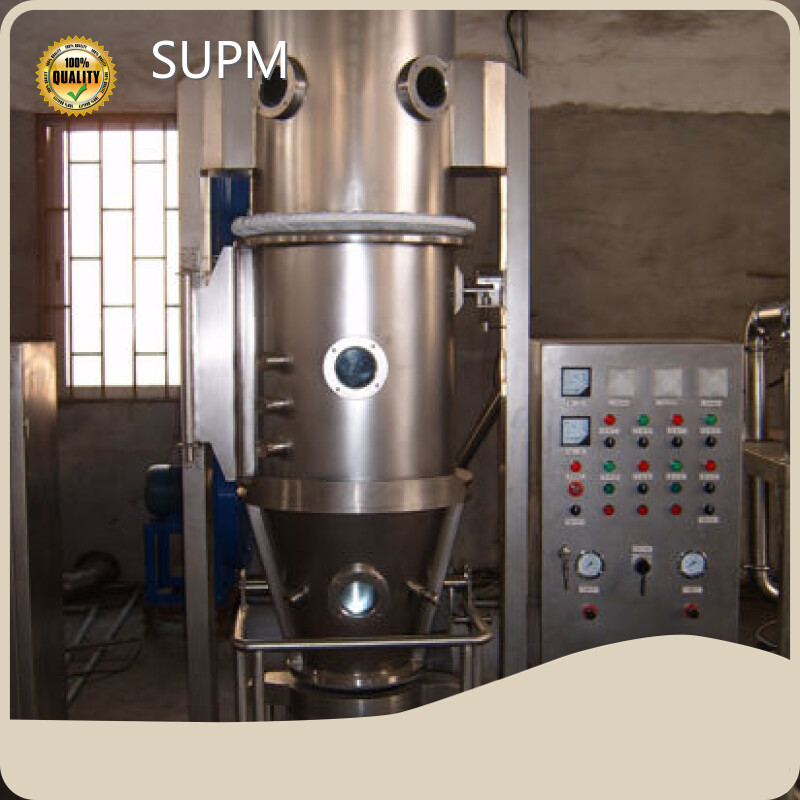

Name: Fluid Bed Dryer Granulator
Product Information
The texture of pharmaceutical line is often a major determinant of how well a product is designed. There are many functions for pharmaceutical line for your choice. SUPM is synonymous with demands of the quality-oriented and price-conscious pharmaceutical line.
Spray gun(three nozzles)
| Item | Unit | Type | ||||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | ||||
| Container | Volume | L | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
| Diameter | MM | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | ||
| Output capacity | Min | KG/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 | |
| Max | KG/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | ||
| Fan | Capacity | m3/H | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 | |
| Pressure | MM H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | ||
| Power | KW | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | ||
| Steam expenditure | KG/H | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | ||
| Compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | ||
| Weight of the main body | KG | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | ||
| Steam pressure | MPA | 0.3-0.6 | ||||||||||
| Temperature | ºC | Adjustable at the range from room temperature to 120ºC | ||||||||||
| Working time | MIN | Decided in accordance with the properties of raw materials | ||||||||||
| Field | % | ≥99 | ||||||||||
| Noise | DB(A) | ≤75Db(When installation, main machine is separated from fan) | ||||||||||
| Size (L×W×H) | M | 1.0×0.6 ×2.1 |
1.2×0.7 ×2.3 |
1.25×0.9 ×2.5 |
1.6×1.1 ×2.5 |
1.85×1.4 ×3 |
2.2×1.65 ×3.3 |
2.34×1.7 ×3.8 |
2.8×2.0 ×4.0 |
3×2.25 ×4.4 |
||
1.Nomally shipping steps:
2.Our packing and shipping:
Pre-Sales Service:
* Inquiry and consulting support.
*Quickly reaction.
*Factory inspection available anytime.
After-Sales Service:
*Prompt technical support
*Engineers available to service machinery overseas
*Installation &commissioning,good training for customers.
Q1.What's your delivery method?
A1:We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
Q2.What products can you provide?
A2:Our main product includes powder mixers,granulating equipments,drying equipments,capsule fillers,blister packing machines,tablet/capsule counting filling line,ampoule/vial/oral liquid filling line includes ultrasonic washing machine,sterilization oven,filling capping machine,labeling machine.
Q3. What's the payment terms?
A3:We will confirm the payment with you when quoting, like FCA, CIF or others.T/T is the main payment.
Q4.How do you ensure your product quality?
A4:We conduct inspections in every production procedure, and for finished products, we will take 100% inspection depend on international standards according to customer's requirements.
Q5:Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
Q6: Is it difficult to install the machine ?
A6: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine; you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get videos and instructions about installation of machine from us.
Company Feature
• SUPM guarantees the high quality and timely delivery of machinery based on multi automated production lines and scientific quality control system. We are able to provide professional and efficient custom services.
• With the rapid development of the economy, customer service management no longer merely belongs to the core of service-oriented enterprises. It becomes the key point for all enterprises to be more competitive. In order to follow the trend of the times, SUPM runs an outstanding customer service management system by learning advanced service idea and know-how. We promote customers from satisfaction to loyalty by insisting on providing quality services.
• SUPM has been engaged in the machinery manufacturing for years. The machinery enjoys a certain reputation in the domestic market for reliable quality and reasonable price.
• SUPM's machinery is made based on advanced production technology. They are self-adaptation, maintenance-free, and self-testing. They are of simple operation and great practicability.
• The superior location and convenient transportation have laid a good foundation for our company's development.
More discounts would be offered on larger-quantity orders of Tablet pressing,capsule filling machine,blister packing machine,cartoning machine,filling and ca. It is an honor for SUPM to receive consultation from new and old customers!
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
