Product details of the tablet film coating machine

Product Specification

Trademark: SUPM

Name: Water chestnut type sugar coating machine

Product Description

SUPM tablet film coating machine passes through process control, random inspection and routine inspection. The long-lasting performance and longer service life set the product apart from our competitors. tablet film coating machine is produced from design to production which are under exquisite management to ensure the quality.

TApplication:

It is used to coat tablets and pills with sugar in pharmaceutical and food Industry.

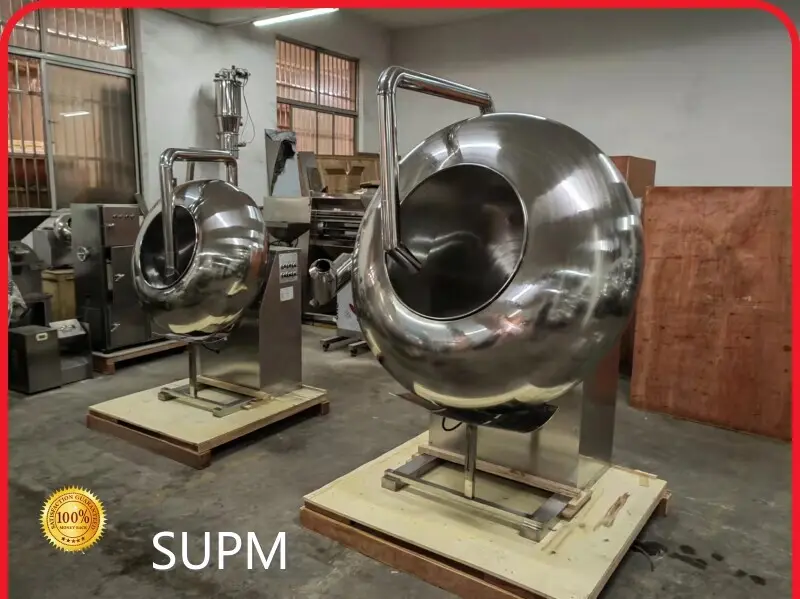

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with a elevation 30° To the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electric heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.

Operation process

1. Place the host steadily, open the oil filling cover, and add lubricating oil to the gearbox until it reaches the oil mark.

2. Move the spray bracket to the right side of the main unit, place the spray gun in the main unit's clothes pot, and adjust it to a reasonable position. Add coating solution to the liquid cup.

3. Connect the power, turn on the main engine speed control switch, and adjust the main engine speed and rotation direction.

4. Connect the gas and liquid pipes to add liquid to the liquid cup, turn on the gas and liquid switches, and adjust the spray gun and spray direction.

5. Align the hair dryer mouth with the pot mouth to adjust the heating temperature and direction.

6. After the above processes are prepared, start the main motor and let the machine idle for 2 minutes to determine if there are any faults. After confirming that everything is normal, the air compressor can be started with an air pressure of approximately 4-6 kg/cm3.

7. Loading: Pour the pill core to be coated into the coating roller, and fix the gun bracket and spray gun into the pot.

8. Turn on the power switch, and if necessary, turn on the air supply and internal heating switches to coat the materials.

9. Discharge: Turn the spray gun and blower device out of the drum, remove the coating pot, and pour out the material.

Product Details

}FJUUAC)4O3Y(A3V9A0_BJ1 - 副本

1 (5) (2)

1 (6) (2)

1 (3) (2)

d (3)

a (5)

b (2)

c (2)
