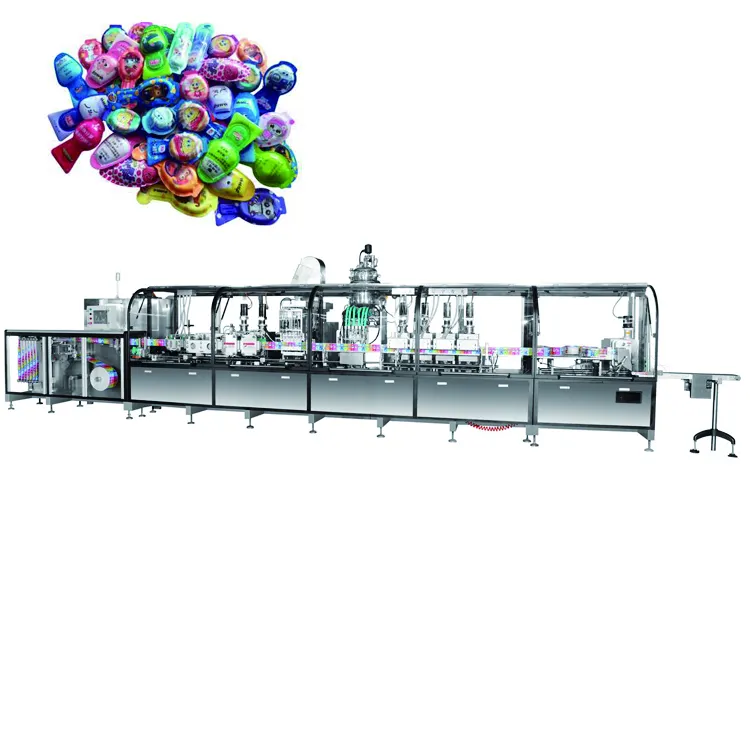

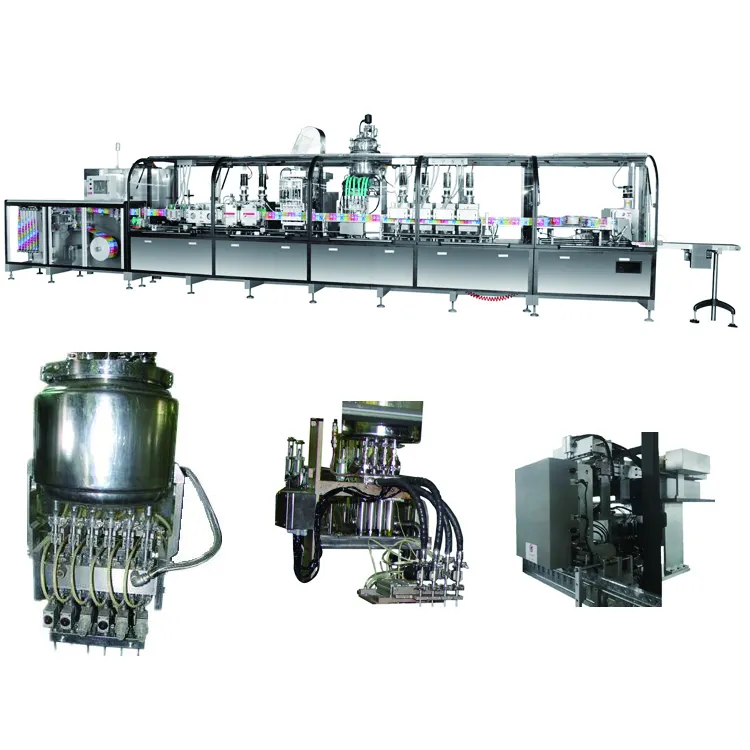

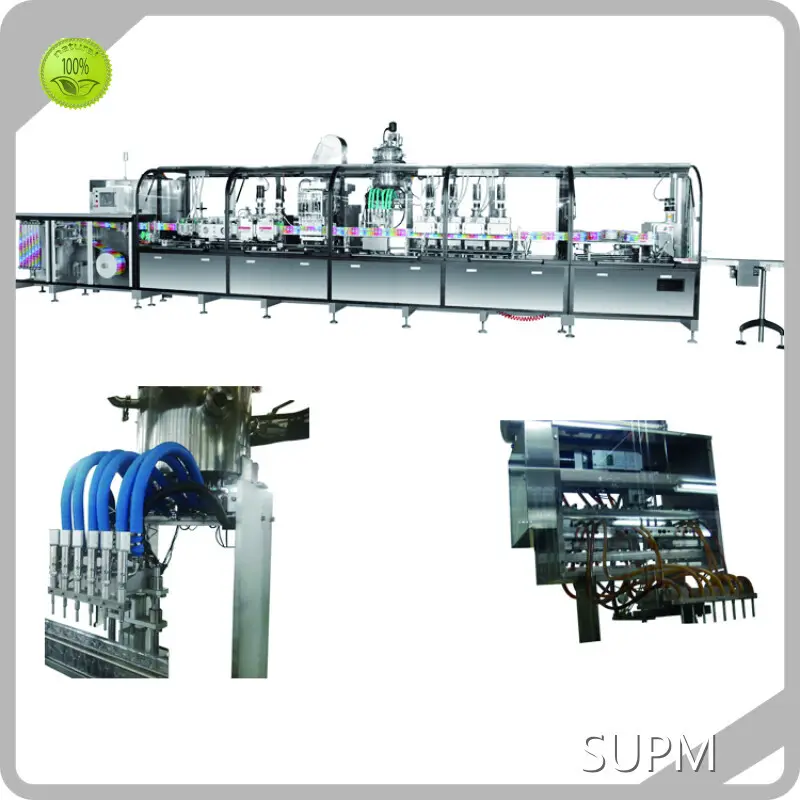

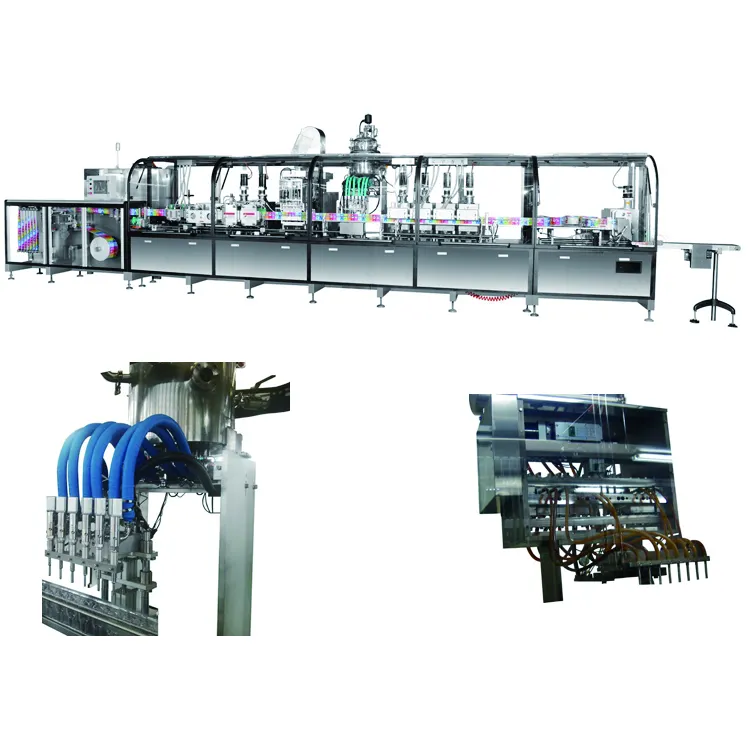

Automatic kids snack cheese stick forming filling sealing machine

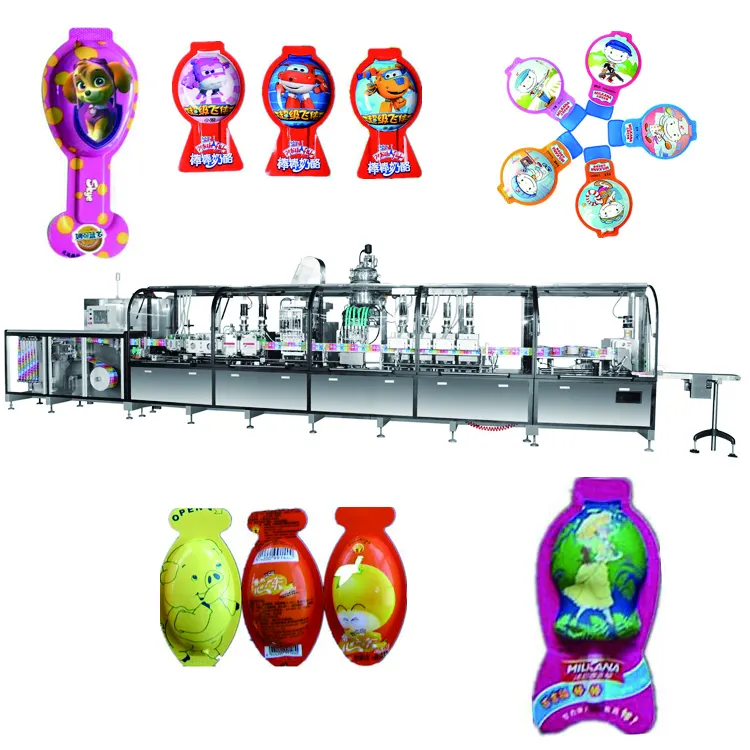

UN-40N stick cheese filling machine is a liquid and semi-viscous body measured in plastic container packaging units. Using a thermoforming film, the film is folded in half by a film folding device and then formed. If necessary, the equipment can produce flat-bottom bottle type (self-standing bottle type) and special-shaped bottle. UB-40N stick cheese filling machine can complete the process from forming, filling, sealing until the finished product is punched and transported to the outside of the machine.
1. Purpose
This machine is suitable for unit-dose packaging, suitable for packaging medicines, beverages, dairy products, health products, condiments, food, cosmetics and other fluid and semi-fluid products. Its unique structure, complete functions, stable performance, reliable quality, and international advanced level of similar products. It is currently the highest level in this field in China.
2. Features
It has a wide range of applications, such as food, medicine, cosmetics, skin care and health care products, and chemical products. The mold is flexible, easy to replace, intelligent system control, modular design, process innovation, simple operation, minimum loss of packaging materials, and high utilization rate 95%-99%, saving packaging costs. Diversified forms of packaging, not restricted by shape, can produce upright, special-shaped and independent bottle shapes.
Parameters of stick cheese filling machine:
Machine dimensions (standard) | 10500x1285x1850(mm) |
Total Weight | 5000Kg |
Input voltage | Three-phase 380V |
Power | 45kw |
Power cable cross-sectional area | >6mm⊃2; |
frequency | 50Hz |
Maximum withstand current | 50A |
Compressed air consumption | When 0.6 Mpa, 120L/min |
Working temperature | 10~22°C |
Cooling water inlet and outlet size | φ16mm（Quick plug） |
Air source inlet size | φ12mm（Quick plug） |
Cooling water consumption | Temperature 14-18℃, pressure 0.15-0.2Mpa, 280L/H in closed loop |
Packaging Materials | PVC/PE, PET/PE, PVDC and other composite sheets Specifications (0.3~0.4)*245max (mm) (or according to mold specifications) The maximum diameter of the film roll is Φ600mm The inner diameter of the film roll tube core is Φ76mm |
Filling count per plate | ≤15 pcs/plate (depending on filling measurement) |
Productivity | ≤35 times forming/min |
Dosage range | 1-120ml/piece |
Filling accuracy | ≤2% |
Double-sided molding depth | ≤25mm |
Single-sided molding depth | ≤12.5mm |
Features of stick cheese filling machine
1. The production line is simple and safe, which can reduce the production cost of the product.
2. Modular design, simple structure, short design cycle and quick product update.
3. Reasonable structure, reliable quality, stable operation and long service life.
4. It is widely applicable to packaging materials, PVC/PE, PET/PE, PVC/PVDC/PE and other materials can be molded.
5. The utilization rate of packaging materials is high, usually reaching more than 95%, and some
Company Advantages
· SUPM vertical form fill seal packaging machine is made from high-quality materials in a sophisticated manufacturing facility.
· vertical form fill seal packaging machine is a product which has many qualities and has a large assortment of applications it is suitable for.
· The product under the SUPM brand has continually grown and expanded in the international competition.
Company Features
· As a competitive and professional manufacturer of vertical form fill seal packaging machine, Shanghai Universal Pharmaceutical Machinery Co.,Ltd. has been widely accepted in the domestic and international market.
· Without the introduction of high-tech methods, vertical form fill seal packaging machine could not have been so popular in the market.
· SUPM has a great objective to achieve to be a famous brand in vertical form fill seal packaging machine market. Inquire!
Application of the Product
The vertical form fill seal packaging machine produced by SUPM is widely used in field for its excellent quality.
SUPM always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
SUPM is a national high-tech enterprise integrating R&D, production, sales and related services of pharmaceuticals, food, cosmetics industries.
